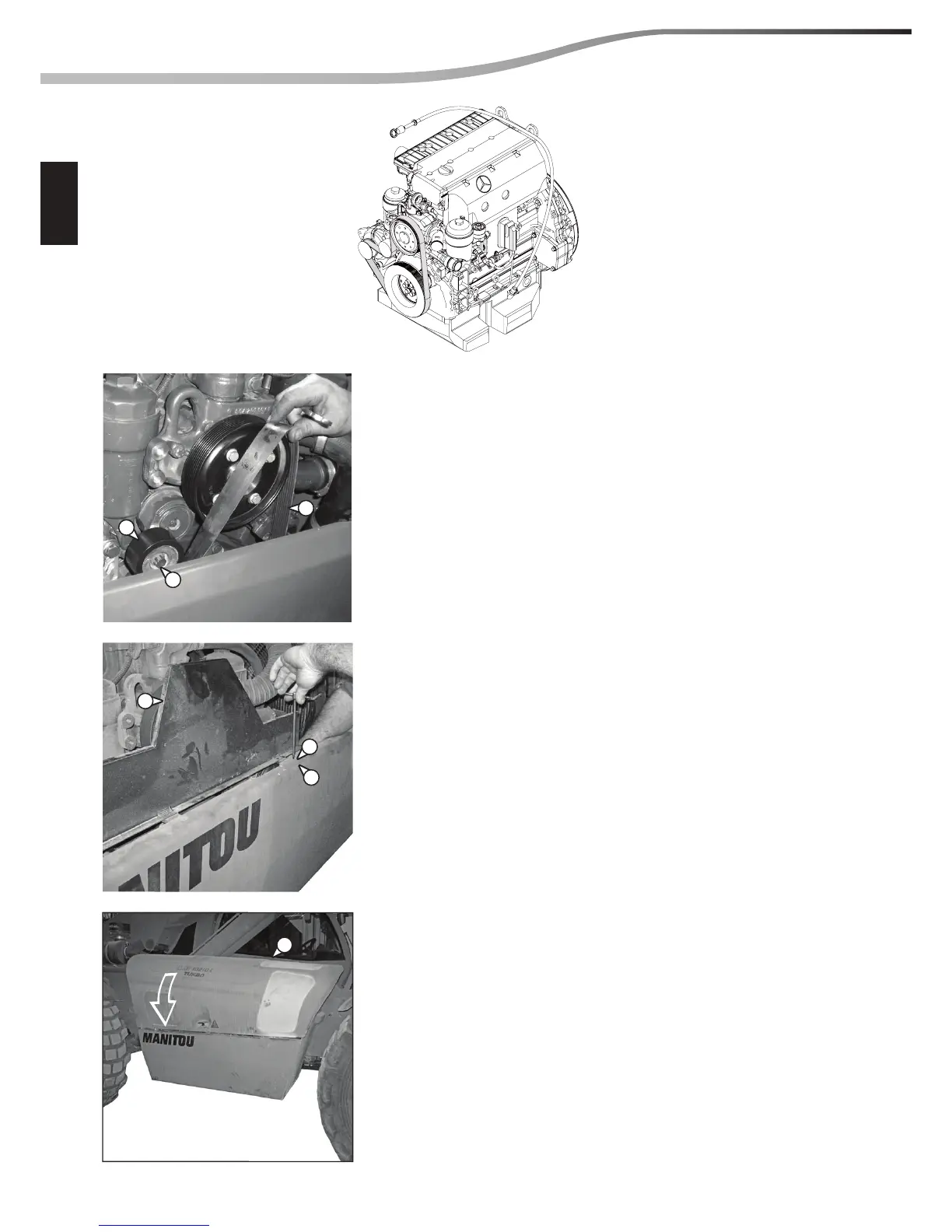

24 ENGINE REFIT
G - REINSERTING THE ALTERNATOR BELT
Re t the belt (Ref. 1) on all the pulleys with the exception of
the belt tightener roller.
Lift the belt tensioner roller (Ref. 2) by means of a lever positioned
on the screw (Ref. 3), apply the belt, then bring the belt tensioner
roller backwards.
Remove the release lever and check to ensure the belt is housed
correctly on the pulleys.
Re t the guard (Ref. 4) by means of the screws
(Ref. 5) and nuts (Ref. 6).
Close the hood (Ref. 7) of the engine compartment.
