Manitou MHT 10225 User Manual

(05/06/2012)10-06-M184EN
10
4 ENGINE REMOVAL

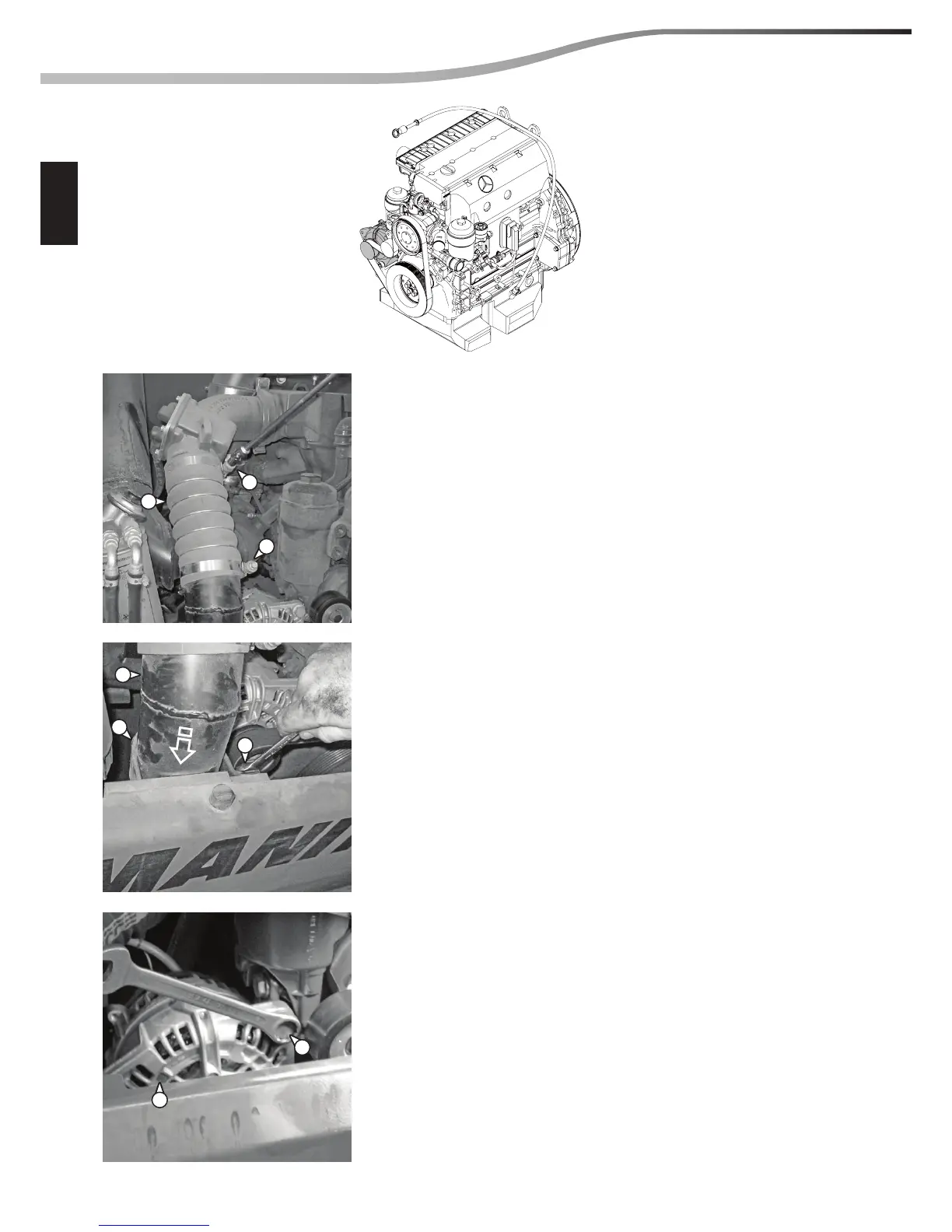

B - REMOVING THE ALTERNATOR
Carry out operation A.
Slacken the clamps (Ref. 1) and remove the hose (Ref. 2) positioned
on the air cooling radiator tube.
Slacken the screws (Ref. 3) and remove the bracket (Ref. 4) which
supports the air cooling radiator tube (Ref. 5), move the tube
downwards to make it easier to access the alternator.
Slacken the screws (Ref. 6) which secure the alternator (Ref. 7)
to the engine.
6
3
5
4
2
1
1
7
