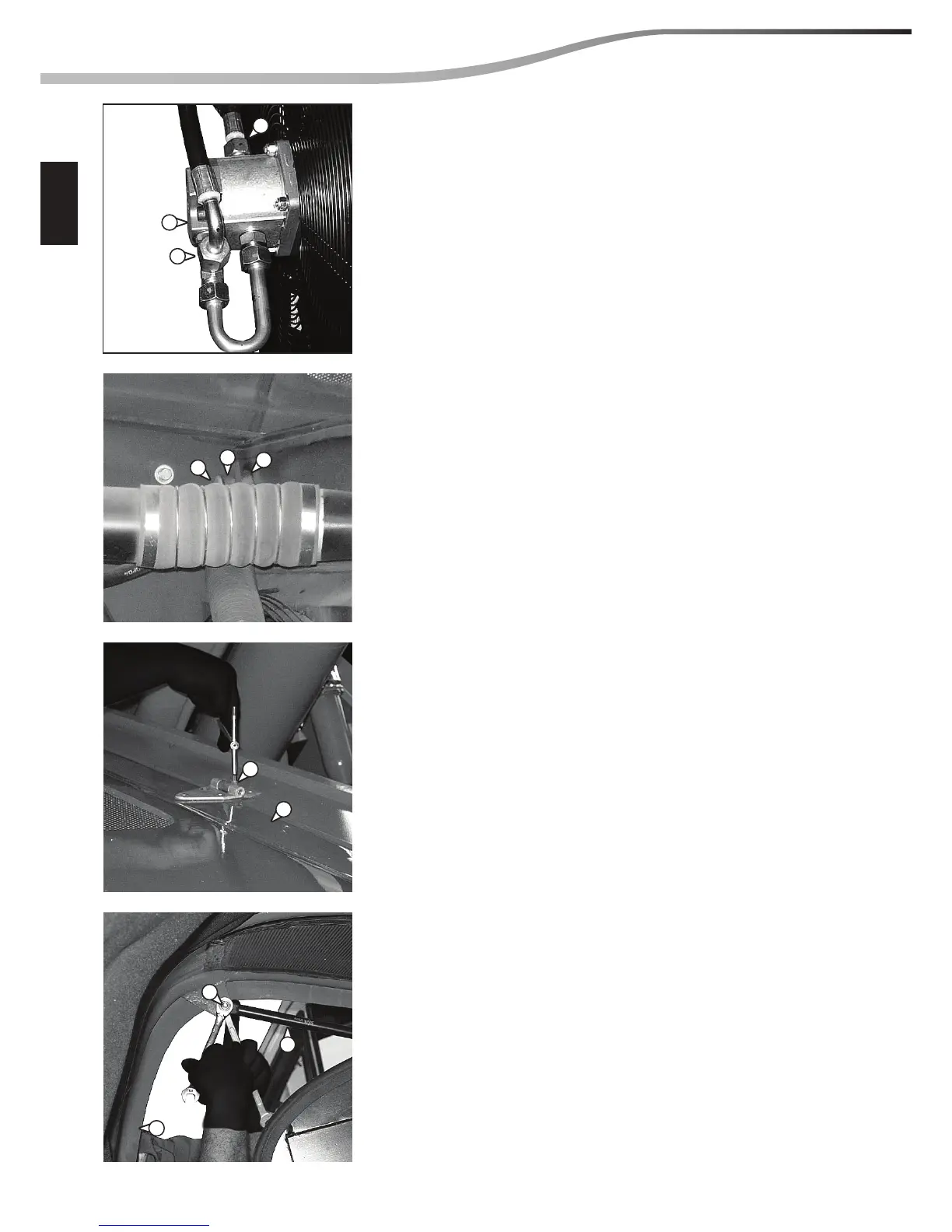

10 ENGINE REFIT
Reconnect the feed pipe (Ref. 9) and drainage pipe (Ref. 10) of
the hydraulic motor (Ref. 1).
Fit the silent blocks (Ref. 11), also in the lower part of the radiator,
using the screws (Ref. 12).
Fit the hood (Ref. 13) on the vehicle by means of the screws
(Ref. 14).
Fit the screw (Ref. 15) to block the gas spring (Ref. 16) on the
engine hood (Ref. 13).
9
10
1
12
11
11
14
13
15
16
13
