14 ENGINE REMOVAL

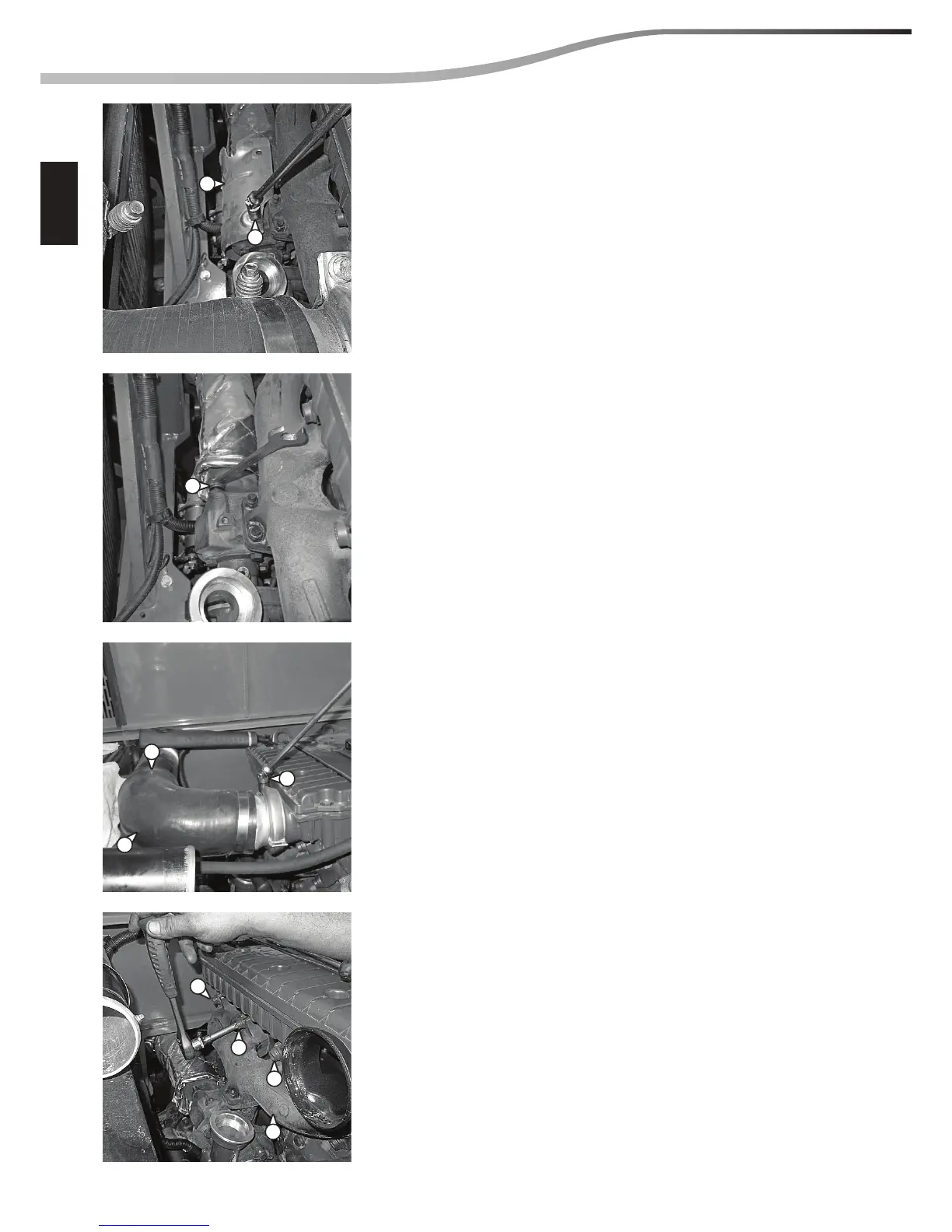

Slacken the 4 screws (Ref. 18) and remove the cover plate (Ref.
19) from the exhaust manifold.
Slacken the screws (Ref. 20) which block the turbocompressor.
Slacken the 2 clamps (Ref. 21) and remove the suction hose
(Ref. 22) from the engine.
Slacken the 8 screws (Ref. 23) and remove the exhaust manifold
(Ref. 24).
