20 ENGINE REMOVAL

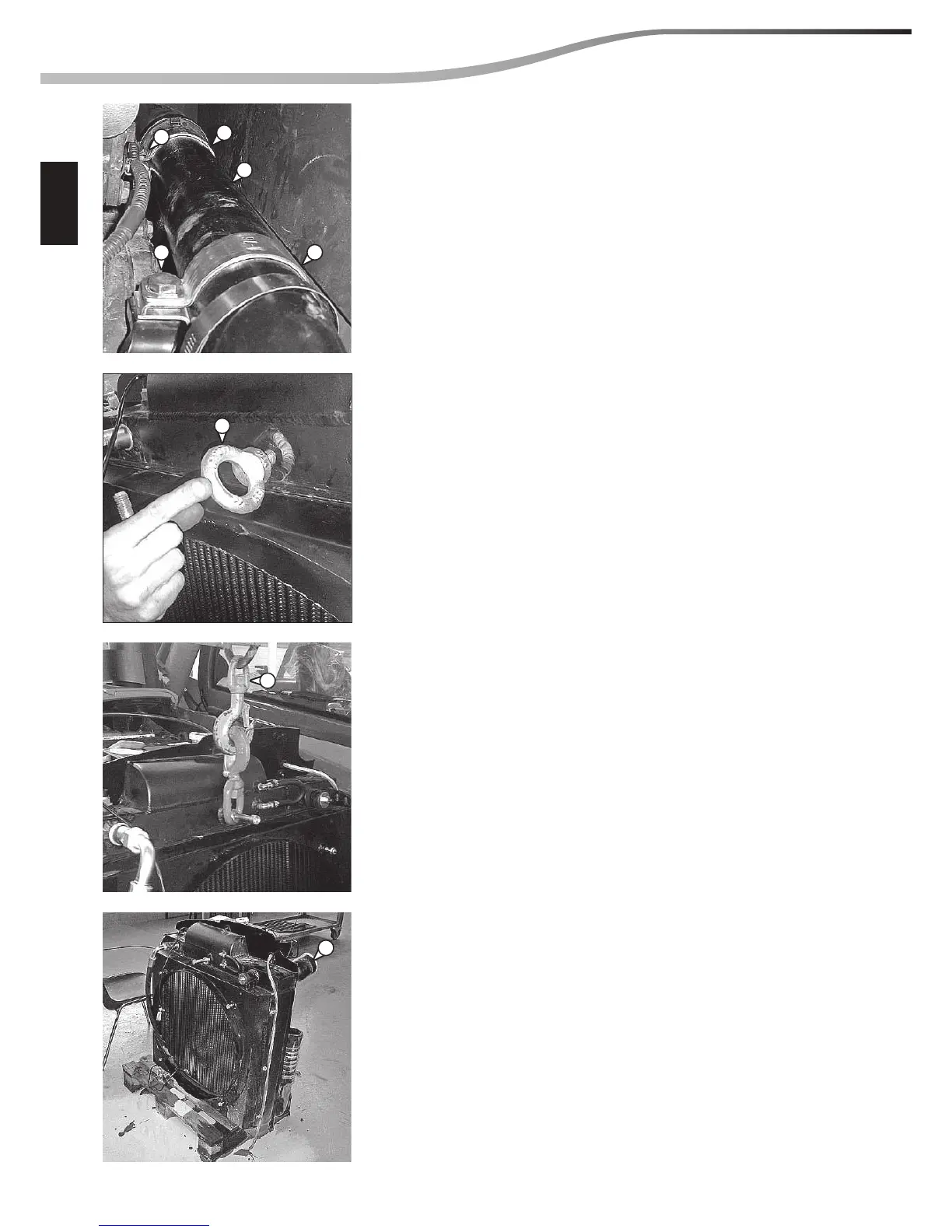

Slacken the screws (Ref. 11) to remove the clamp (Ref. 12) and
remove the tube (Ref. 13).
Position the eyebolt (Ref. 14) on the radiator.
Connect the overhead crane (Ref. 15) to the radiator to remove it.
Remove the radiator (Ref. 16) from the vehicle, and place it on
a pallet.
