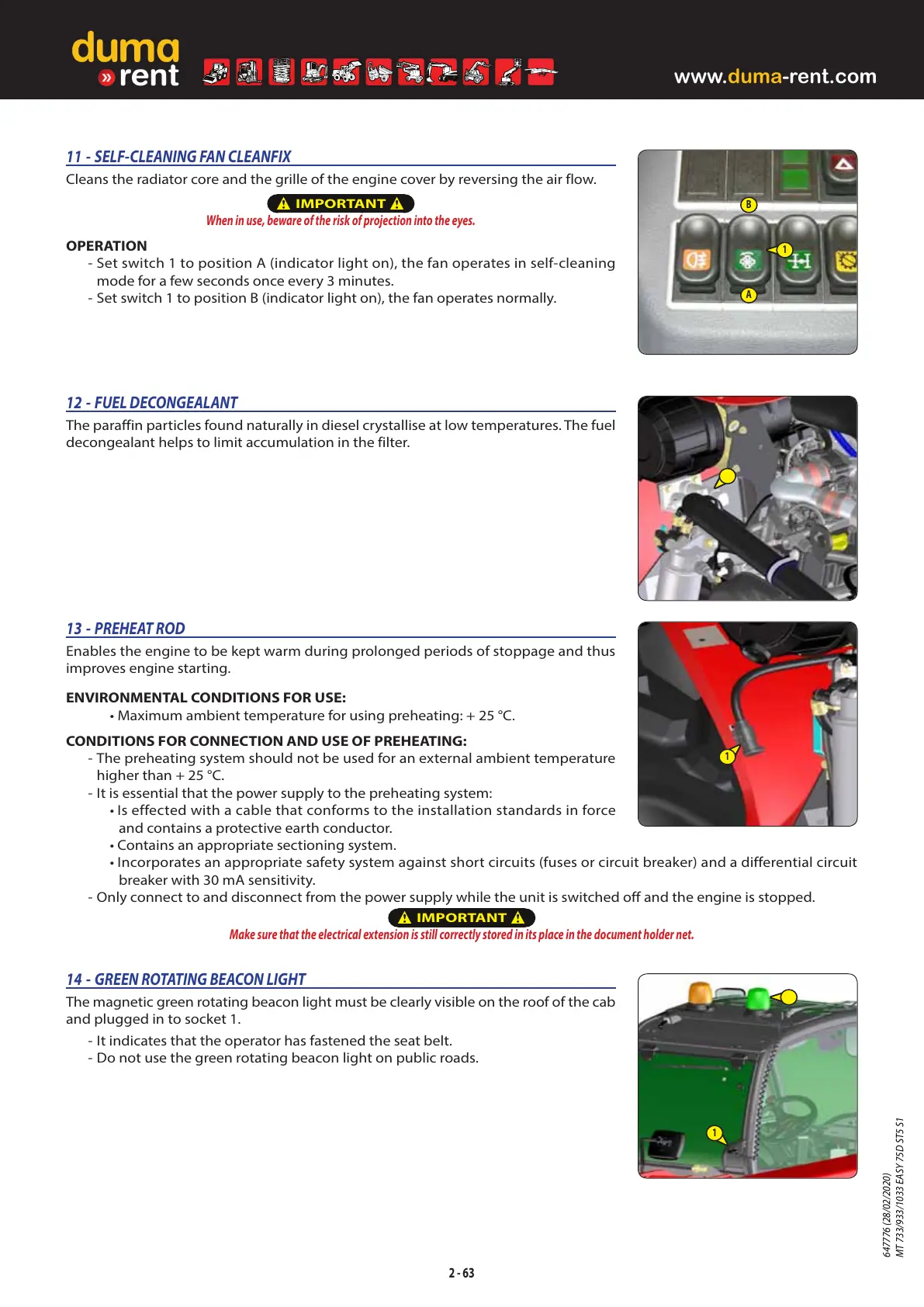

12 - FUEL DECONGEALANT
The paraffin particles found naturally in diesel crystallise at low temperatures. The fuel
decongealant helps to limit accumulation in the filter.
11 - SELF-CLEANING FAN CLEANFIX
Cleans the radiator core and the grille of the engine cover by reversing the air flow.
t
IMPORTANT
t
When in use, beware of the risk of projection into the eyes.
OPERATION
- Set switch 1 to position A (indicator light on), the fan operates in self-cleaning
mode for a few seconds once every 3 minutes.
- Set switch 1 to position B (indicator light on), the fan operates normally.
13 - PREHEAT ROD
Enables the engine to be kept warm during prolonged periods of stoppage and thus
improves engine starting.
ENVIRONMENTAL CONDITIONS FOR USE:
• Maximum ambient temperature for using preheating: +25 °C.
CONDITIONS FOR CONNECTION AND USE OF PREHEATING:
- The preheating system should not be used for an external ambient temperature
higher than +25 °C.
- It is essential that the power supply to the preheating system:
• Is effected with a cable that conforms to the installation standards in force
and contains a protective earth conductor.
• Contains an appropriate sectioning system.
• Incorporates an appropriate safety system against short circuits (fuses or circuit breaker) and a differential circuit
breaker with30 mA sensitivity.
- Only connect to and disconnect from the power supply while the unit is switched off and the engine is stopped.
t
IMPORTANT
t
Make sure that the electrical extension is still correctly stored in its place in the document holder net.
14 - GREEN ROTATING BEACON LIGHT
The magnetic green rotating beacon light must be clearly visible on the roof of the cab
and plugged in to socket1.
- It indicates that the operator has fastened the seat belt.
- Do not use the green rotating beacon light on public roads.
1
2 - 63
