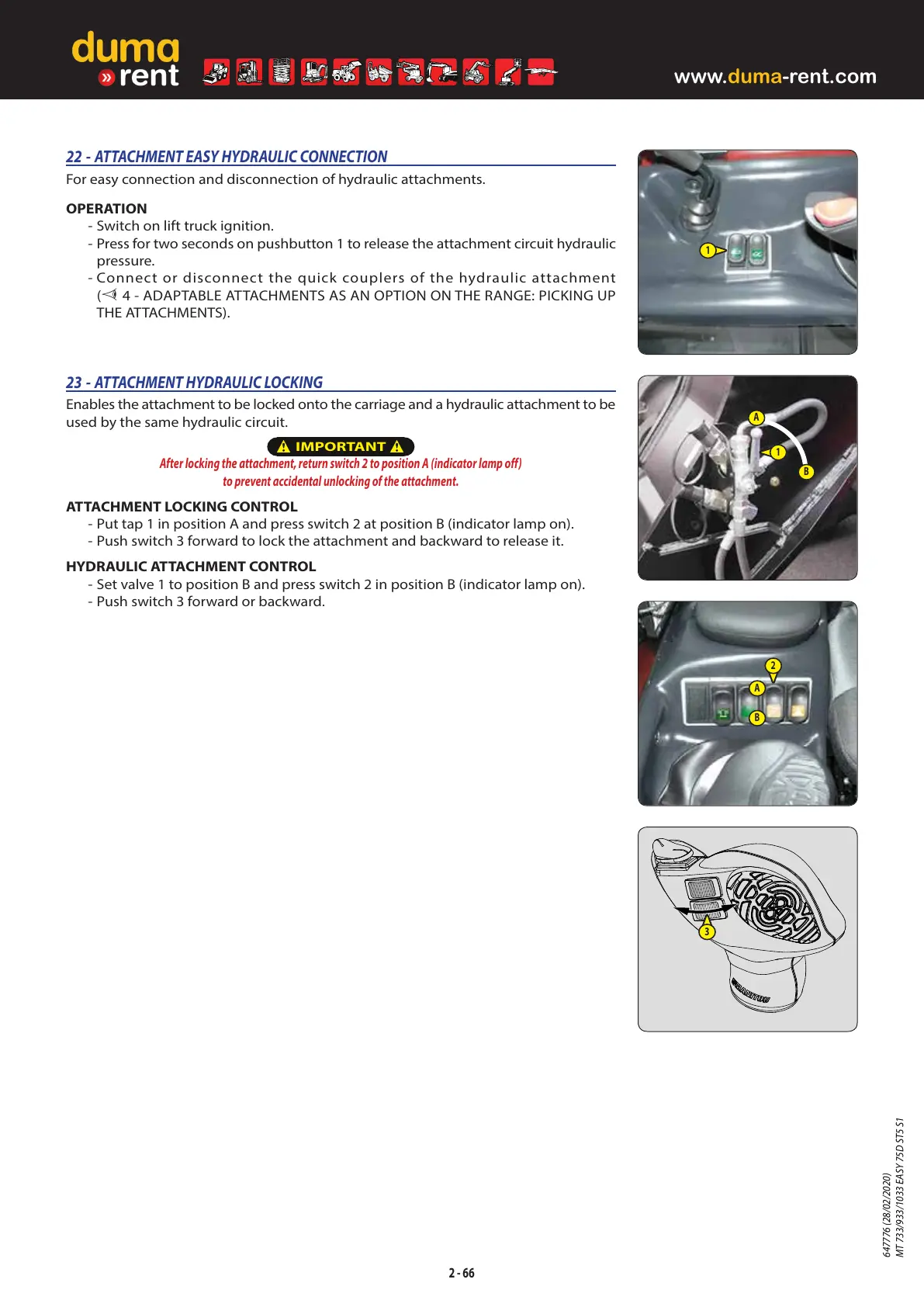

22 - ATTACHMENT EASY HYDRAULIC CONNECTION
For easy connection and disconnection of hydraulic attachments.
OPERATION
- Switch on lift truck ignition.
- Press for two seconds on pushbutton1 to release the attachment circuit hydraulic
pressure.
- Connect or disconnect the quick couplers of the hydraulic attachment
(
e4-ADAPTABLE ATTACHMENTS AS AN OPTION ON THE RANGE: PICKING UP
THE ATTACHMENTS).
23 - ATTACHMENT HYDRAULIC LOCKING
Enables the attachment to be locked onto the carriage and a hydraulic attachment to be
used by the same hydraulic circuit.
t
IMPORTANT
t
After locking the attachment, return switch2 to position A (indicator lamp off)
to prevent accidental unlocking of the attachment.
ATTACHMENT LOCKING CONTROL
- Put tap1 in position A and press switch2 at position B (indicator lamp on).
- Push switch3 forward to lock the attachment and backward to release it.
HYDRAULIC ATTACHMENT CONTROL
- Set valve 1 to position B and press switch 2 in position B (indicator lamp on).
- Push switch3 forward or backward.
2 - 66
A
B
1
B
A
2
1
3
647776 (28/02/2020) MT 733/933/1033 EASY 75D ST5 S1
