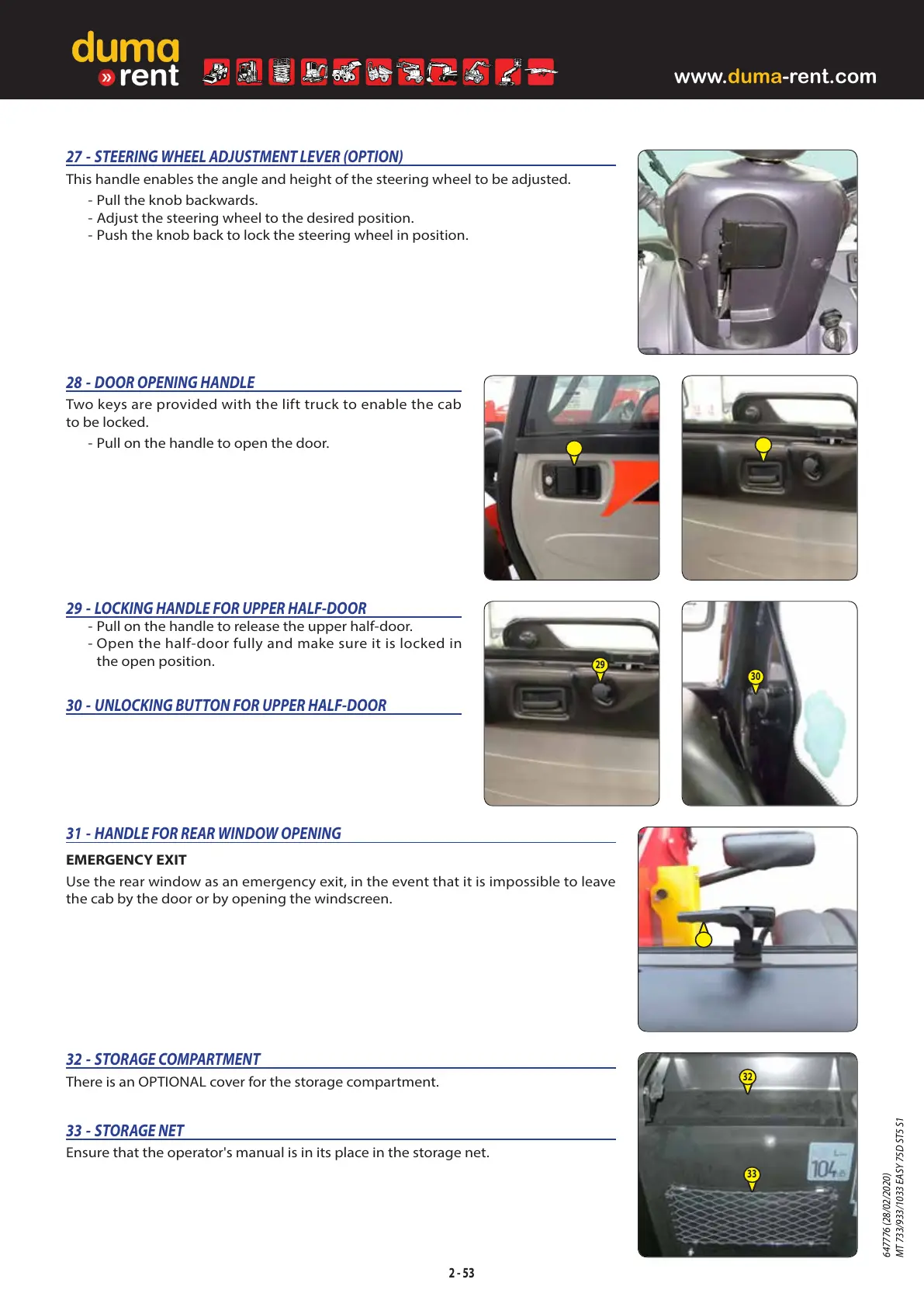

28 - DOOR OPENING HANDLE
Two keys are provided with the lift truck to enable the cab
to be locked.
- Pull on the handle to open the door.
29 - LOCKING HANDLE FOR UPPER HALF-DOOR
- Pull on the handle to release the upper half-door.
- Open the half-door fully and make sure it is locked in
the open position.
30 - UNLOCKING BUTTON FOR UPPER HALF-DOOR
31 - HANDLE FOR REAR WINDOW OPENING
EMERGENCY EXIT
Use the rear window as an emergency exit, in the event that it is impossible to leave
the cab by the door or by opening the windscreen.
32 - STORAGE COMPARTMENT
There is an OPTIONAL cover for the storage compartment.
33 - STORAGE NET
Ensure that the operator's manual is in its place in the storage net.
27 - STEERING WHEEL ADJUSTMENT LEVER (OPTION)
This handle enables the angle and height of the steering wheel to be adjusted.
- Pull the knob backwards.
- Adjust the steering wheel to the desired position.
- Push the knob back to lock the steering wheel in position.
2 - 53
29
30
32
33
