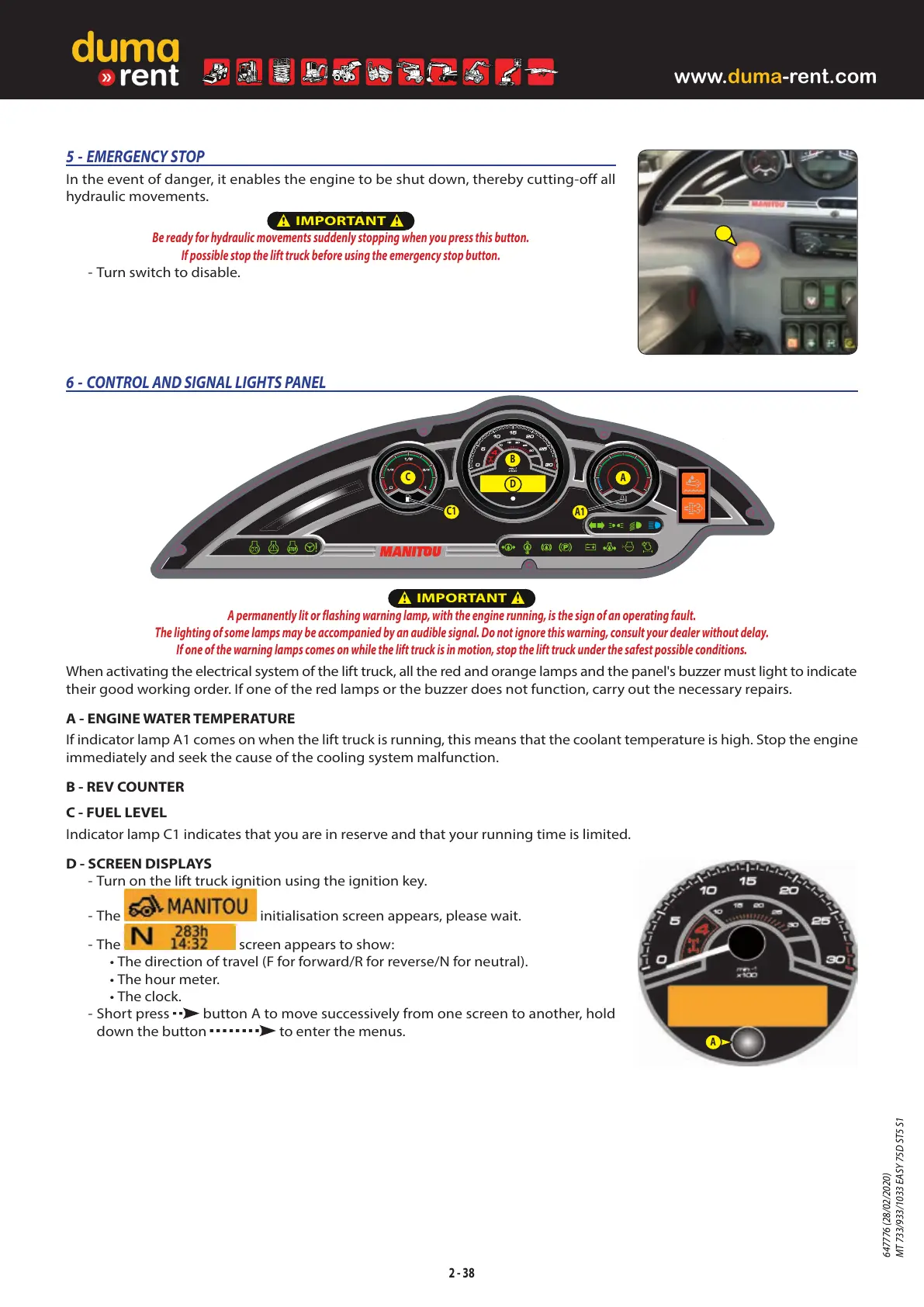

5 - EMERGENCY STOP
In the event of danger, it enables the engine to be shut down, thereby cutting-off all
hydraulic movements.
t
IMPORTANT
t
Be ready for hydraulic movements suddenly stopping when you press this button.
If possible stop the lift truck before using the emergency stop button.
- Turn switch to disable.
6 - CONTROL AND SIGNAL LIGHTS PANEL
B
A
C
C1
A1
D
t
IMPORTANT
t
A permanently lit or flashing warning lamp, with the engine running, is the sign of an operating fault.
The lighting of some lamps may be accompanied by an audible signal. Do not ignore this warning, consult your dealer without delay.
If one of the warning lamps comes on while the lift truck is in motion, stop the lift truck under the safest possible conditions.
When activating the electrical system of the lift truck, all the red and orange lamps and the panel's buzzer must light to indicate
their good working order. If one of the red lamps or the buzzer does not function, carry out the necessary repairs.
A-ENGINE WATER TEMPERATURE
If indicator lamp A1 comes on when the lift truck is running, this means that the coolant temperature is high. Stop the engine
immediately and seek the cause of the cooling system malfunction.
B-REV COUNTER
C-FUEL LEVEL
Indicator lamp C1 indicates that you are in reserve and that your running time is limited.
D-SCREEN DISPLAYS
- Turn on the lift truck ignition using the ignition key.
- The
initialisation screen appears, please wait.
- The screen appears to show:
• The direction of travel (F for forward/R for reverse/N for neutral).
• The hour meter.
• The clock.
- Short press button A to move successively from one screen to another, hold
down the button to enter the menus.
A
