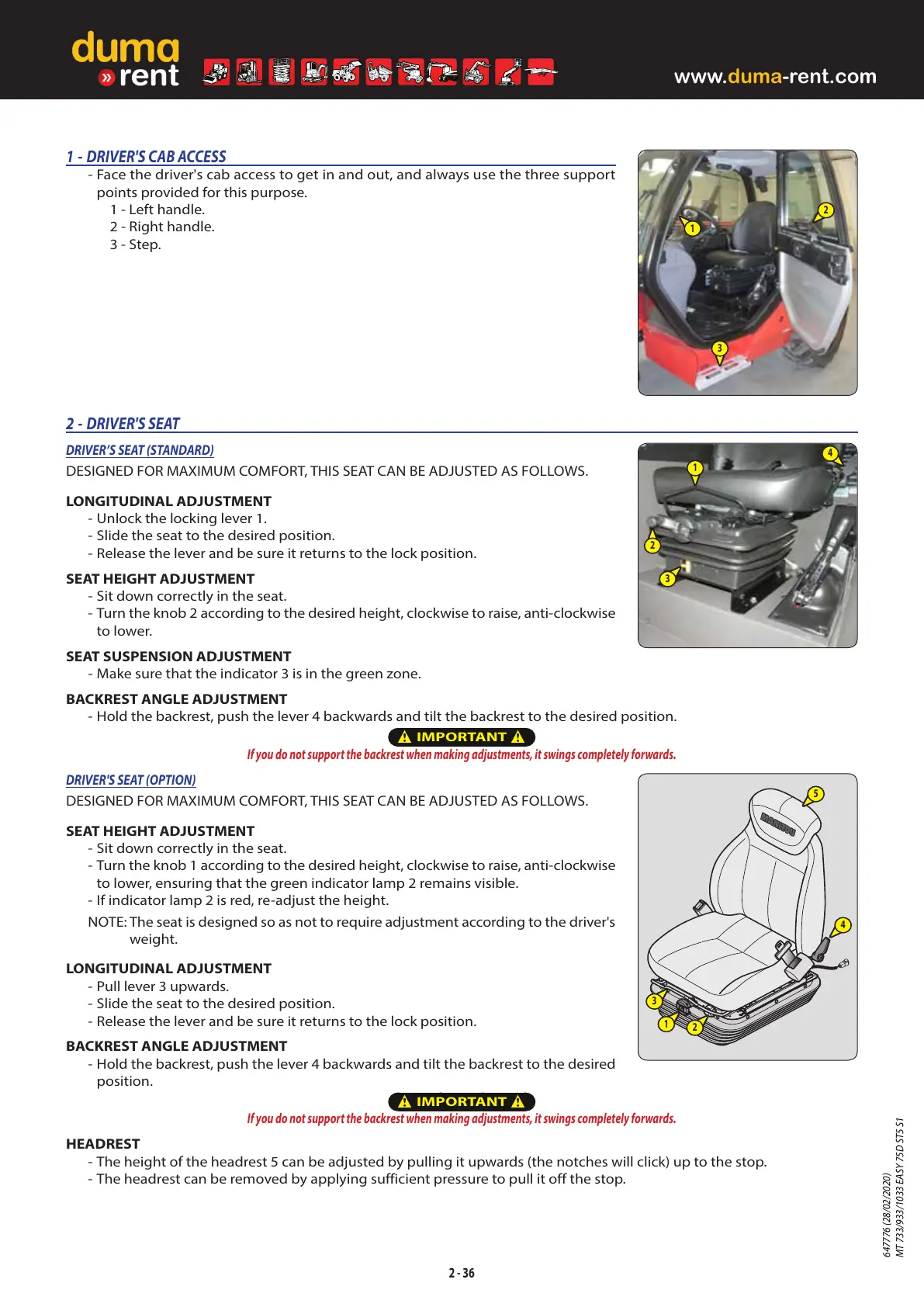

1 - DRIVER'S CAB ACCESS
- Face the driver's cab access to get in and out, and always use the three support
points provided for this purpose.
1 - Left handle.
2 - Right handle.
3 - Step.
2 - DRIVER'S SEAT
DRIVER’S SEAT (STANDARD)
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.
LONGITUDINAL ADJUSTMENT
- Unlock the locking lever 1.
- Slide the seat to the desired position.
- Release the lever and be sure it returns to the lock position.
SEAT HEIGHT ADJUSTMENT
- Sit down correctly in the seat.
- Turn the knob 2 according to the desired height, clockwise to raise, anti-clockwise
to lower.
SEAT SUSPENSION ADJUSTMENT
- Make sure that the indicator 3 is in the green zone.
BACKREST ANGLE ADJUSTMENT
- Hold the backrest, push the lever 4 backwards and tilt the backrest to the desired position.
t
IMPORTANT
t
If you do not support the backrest when making adjustments, it swings completely forwards.
DRIVER'S SEAT (OPTION)
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.
SEAT HEIGHT ADJUSTMENT
- Sit down correctly in the seat.
- Turn the knob 1 according to the desired height, clockwise to raise, anti-clockwise
to lower, ensuring that the green indicator lamp 2 remains visible.
- If indicator lamp 2 is red, re-adjust the height.
NOTE: The seat is designed so as not to require adjustment according to the driver's
weight.
LONGITUDINAL ADJUSTMENT
- Pull lever 3 upwards.
- Slide the seat to the desired position.
- Release the lever and be sure it returns to the lock position.
BACKREST ANGLE ADJUSTMENT
- Hold the backrest, push the lever 4 backwards and tilt the backrest to the desired
position.
t
IMPORTANT
t
If you do not support the backrest when making adjustments, it swings completely forwards.
HEADREST
- The height of the headrest5 can be adjusted by pulling it upwards (the notches will click) up to the stop.
- The headrest can be removed by applying sufficient pressure to pull it off the stop.
