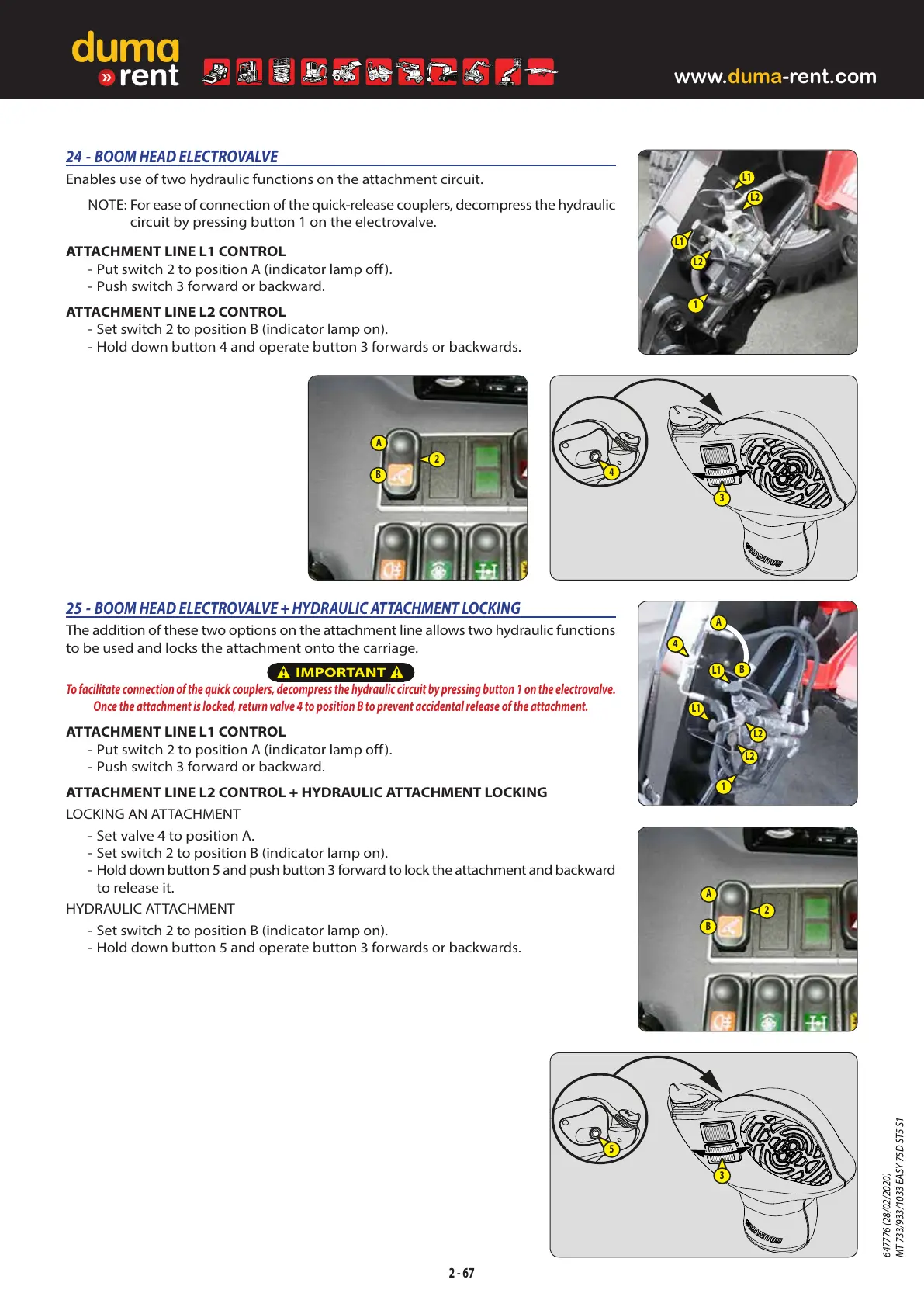

24 - BOOM HEAD ELECTROVALVE
Enables use of two hydraulic functions on the attachment circuit.
NOTE: For ease of connection of the quick-release couplers, decompress the hydraulic
circuit by pressing button1 on the electrovalve.
ATTACHMENT LINE L1 CONTROL
- Put switch2 to position A (indicator lamp off).
- Push switch3 forward or backward.
ATTACHMENT LINE L2 CONTROL
- Set switch 2 to position B (indicator lamp on).
- Hold down button4 and operate button3 forwards or backwards.
25 - BOOM HEAD ELECTROVALVE +HYDRAULIC ATTACHMENT LOCKING
The addition of these two options on the attachment line allows two hydraulic functions
to be used and locks the attachment onto the carriage.
t
IMPORTANT
t
To facilitate connection of the quick couplers, decompress the hydraulic circuit by pressing button1 on the electrovalve.
Once the attachment is locked, return valve4 to positionB to prevent accidental release of the attachment.
ATTACHMENT LINE L1 CONTROL
- Put switch2 to position A (indicator lamp off).
- Push switch3 forward or backward.
ATTACHMENT LINE L2 CONTROL + HYDRAULIC ATTACHMENT LOCKING
LOCKING AN ATTACHMENT
- Set valve4 to position A.
- Set switch 2 to position B (indicator lamp on).
- Hold down button5 and push button3 forward to lock the attachment and backward
to release it.
HYDRAULIC ATTACHMENT
- Set switch 2 to position B (indicator lamp on).
- Hold down button5 and operate button3 forwards or backwards.
2 - 67
L1
L2
L1
L2
1
1
A
B
4
L1
L1
L2
L2
A
B
2
A
B
2
4
3
5
3
647776 (28/02/2020) MT 733/933/1033 EASY 75D ST5 S1
