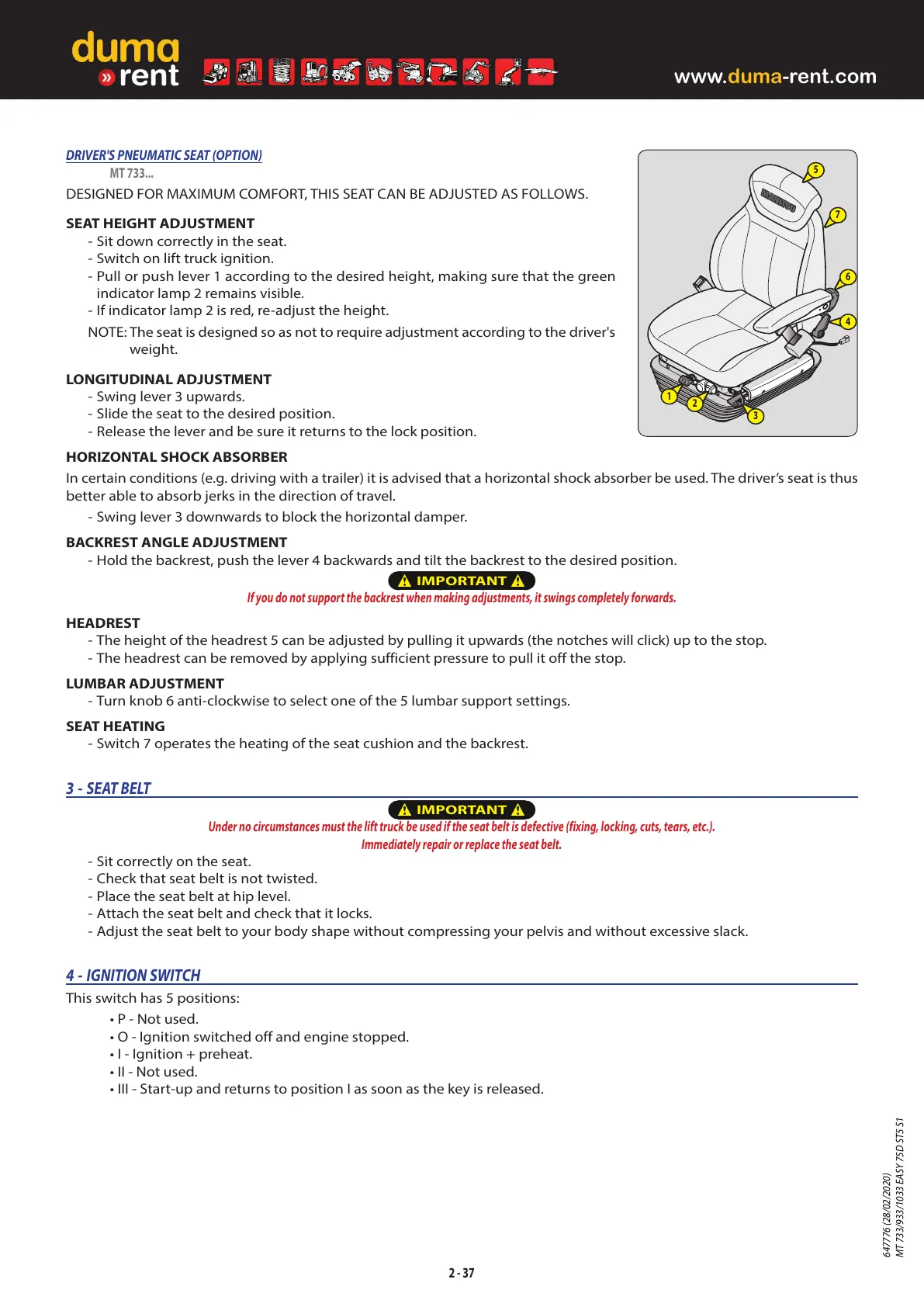

DRIVER'S PNEUMATIC SEAT (OPTION)
MT733...
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.
SEAT HEIGHT ADJUSTMENT
- Sit down correctly in the seat.
- Switch on lift truck ignition.
- Pull or push lever 1 according to the desired height, making sure that the green
indicator lamp 2 remains visible.
- If indicator lamp 2 is red, re-adjust the height.
NOTE: The seat is designed so as not to require adjustment according to the driver's
weight.
LONGITUDINAL ADJUSTMENT
- Swing lever 3 upwards.
- Slide the seat to the desired position.
- Release the lever and be sure it returns to the lock position.
HORIZONTAL SHOCK ABSORBER
In certain conditions (e.g. driving with a trailer) it is advised that a horizontal shock absorber be used. The drivers seat is thus
better able to absorb jerks in the direction of travel.
- Swing lever 3 downwards to block the horizontal damper.
BACKREST ANGLE ADJUSTMENT
- Hold the backrest, push the lever 4 backwards and tilt the backrest to the desired position.
t
IMPORTANT
t
If you do not support the backrest when making adjustments, it swings completely forwards.
HEADREST
- The height of the headrest5 can be adjusted by pulling it upwards (the notches will click) up to the stop.
- The headrest can be removed by applying sufficient pressure to pull it off the stop.
LUMBAR ADJUSTMENT
- Turn knob 6 anti-clockwise to select one of the 5 lumbar support settings.
SEAT HEATING
- Switch 7 operates the heating of the seat cushion and the backrest.
3 - SEAT BELT
t
IMPORTANT
t
Under no circumstances must the lift truck be used if the seat belt is defective (fixing, locking, cuts, tears, etc.).
Immediately repair or replace the seat belt.
- Sit correctly on the seat.
- Check that seat belt is not twisted.
- Place the seat belt at hip level.
- Attach the seat belt and check that it locks.
- Adjust the seat belt to your body shape without compressing your pelvis and without excessive slack.
4 - IGNITION SWITCH
This switch has5 positions:
P- Not used.
O- Ignition switched off and engine stopped.
I- Ignition + preheat.
II- Not used.
III- Start-up and returns to position I as soon as the key is released.
2 - 37
1
2
6
5
3
4
7
