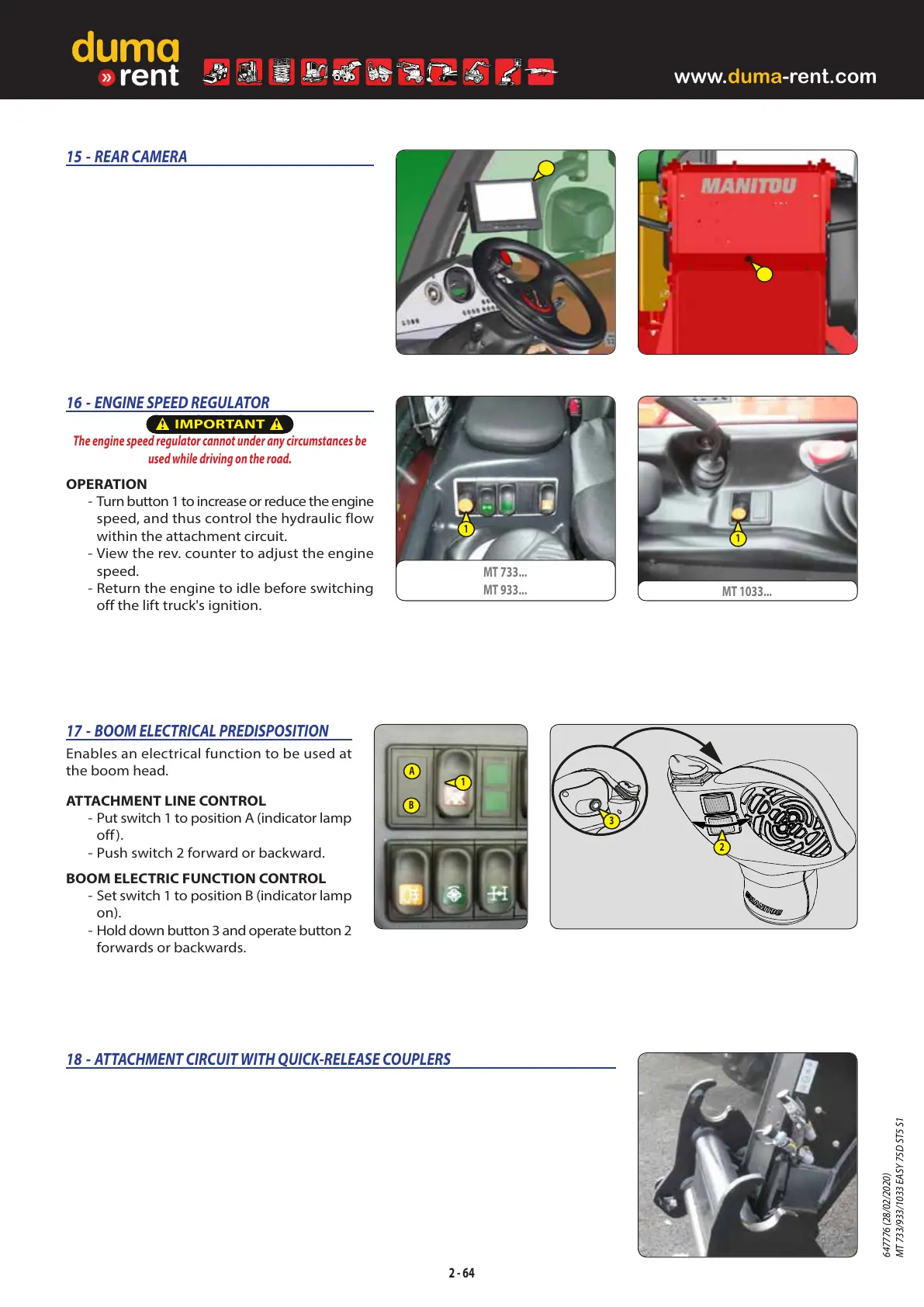

15 - REAR CAMERA
17 - BOOM ELECTRICAL PREDISPOSITION
Enables an electrical function to be used at
the boom head.
ATTACHMENT LINE CONTROL
- Put switch1 to position A (indicator lamp
off).
- Push switch2 forward or backward.
BOOM ELECTRIC FUNCTION CONTROL
- Set switch 1 to position B (indicator lamp
on).
- Hold down button3 and operate button2
forwards or backwards.
18 - ATTACHMENT CIRCUIT WITH QUICK-RELEASE COUPLERS
16 - ENGINE SPEED REGULATOR
t
IMPORTANT
t
The engine speed regulator cannot under any circumstances be
used while driving on the road.
OPERATION
- Turn button 1 to increase or reduce the engine
speed, and thus control the hydraulic flow
within the attachment circuit.
- View the rev. counter to adjust the engine
speed.
- Return the engine to idle before switching
off the lift truck's ignition.
