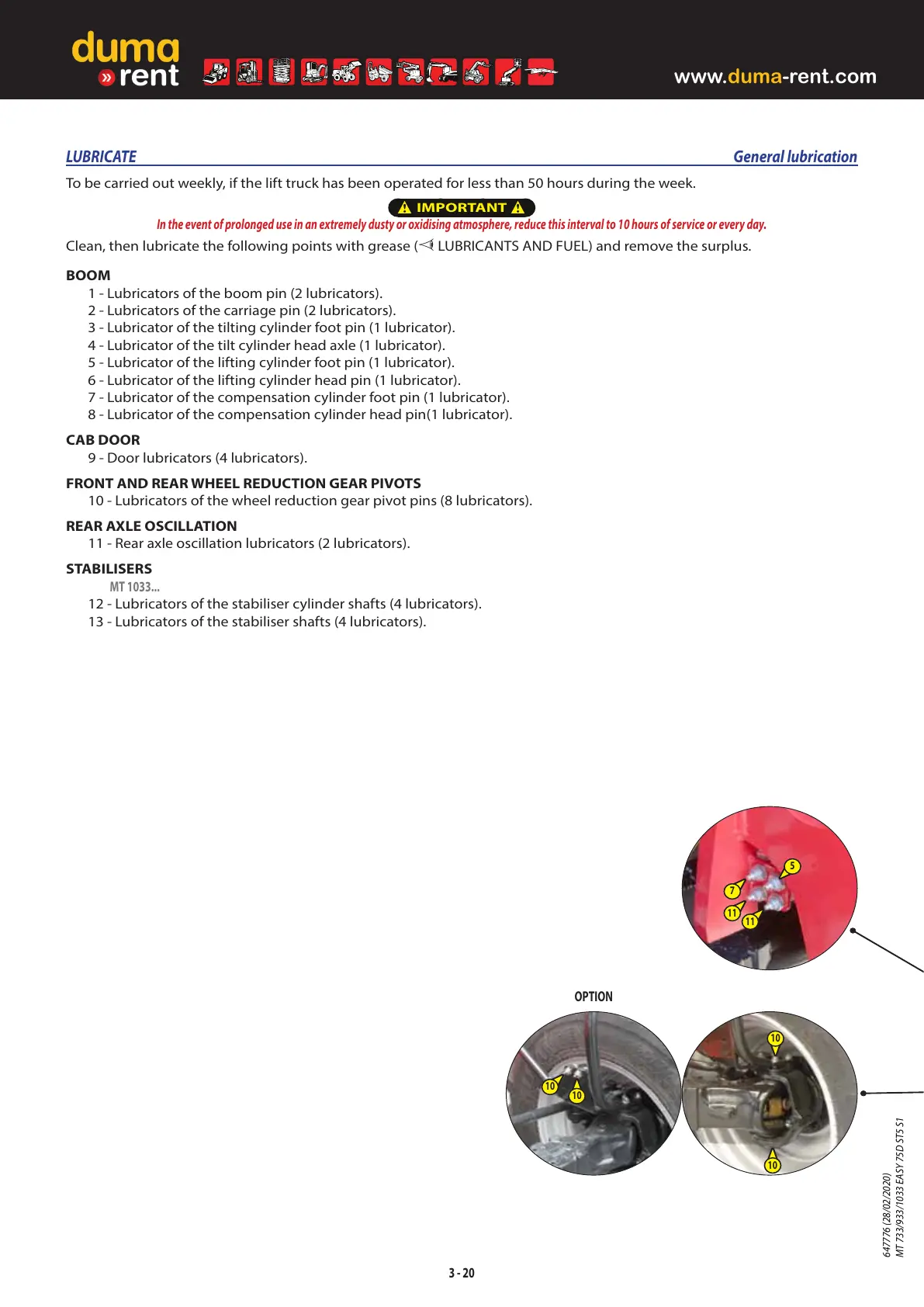

LUBRICATE General lubrication
To be carried out weekly, if the lift truck has been operated for less than50 hours during the week.
t
IMPORTANT
t
In the event of prolonged use in an extremely dusty or oxidising atmosphere, reduce this interval to10 hours of service or every day.
Clean, then lubricate the following points with grease (eLUBRICANTS AND FUEL) and remove the surplus.
BOOM
1 - Lubricators of the boom pin (2 lubricators).
2 - Lubricators of the carriage pin (2 lubricators).
3 - Lubricator of the tilting cylinder foot pin (1 lubricator).
4 - Lubricator of the tilt cylinder head axle (1 lubricator).
5 - Lubricator of the lifting cylinder foot pin (1 lubricator).
6 - Lubricator of the lifting cylinder head pin (1 lubricator).
7 - Lubricator of the compensation cylinder foot pin (1 lubricator).
8 - Lubricator of the compensation cylinder head pin(1 lubricator).
CAB DOOR
9 - Door lubricators (4 lubricators).
FRONT AND REAR WHEEL REDUCTION GEAR PIVOTS
10 - Lubricators of the wheel reduction gear pivot pins (8 lubricators).
REAR AXLE OSCILLATION
11 - Rear axle oscillation lubricators (2 lubricators).
STABILISERS
MT1033...
12 - Lubricators of the stabiliser cylinder shafts (4 lubricators).
13 - Lubricators of the stabiliser shafts (4 lubricators).
