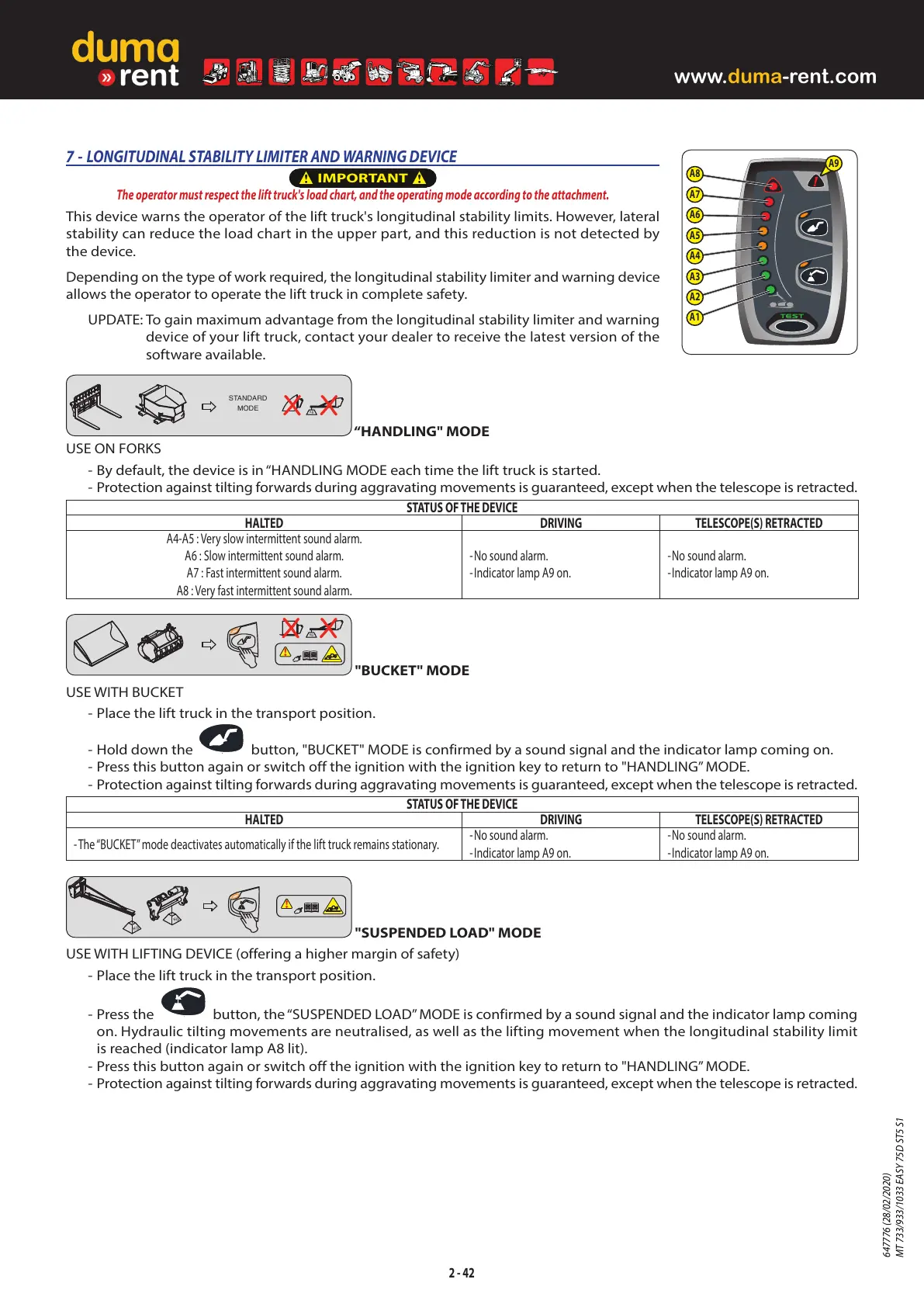

7 - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
t
IMPORTANT
t
The operator must respect the lift truck's load chart, and the operating mode according to the attachment.
This device warns the operator of the lift truck's longitudinal stability limits. However, lateral
stability can reduce the load chart in the upper part, and this reduction is not detected by
the device.
Depending on the type of work required, the longitudinal stability limiter and warning device
allows the operator to operate the lift truck in complete safety.
UPDATE: To gain maximum advantage from the longitudinal stability limiter and warning
device of your lift truck, contact your dealer to receive the latest version of the
software available.
N°297733
STANDARD
MODE
kg
XX
kg
X
Kg
Kg
“HANDLING" MODE
USE ON FORKS
- By default, the device is in “HANDLING MODE each time the lift truck is started.
- Protection against tilting forwards during aggravating movements is guaranteed, except when the telescope is retracted.
STATUS OF THE DEVICE
HALTED DRIVING TELESCOPE(S) RETRACTED
A4-A5 : Very slow intermittent sound alarm.
A6 : Slow intermittent sound alarm.
A7 : Fast intermittent sound alarm.
A8 : Very fast intermittent sound alarm.
-No sound alarm.
-Indicator lamp A9 on.
-No sound alarm.
-Indicator lamp A9 on.
N°297733
kg
XX
STANDARD
MODE
kg
XX
Kg
Kg
"BUCKET" MODE
USE WITH BUCKET
- Place the lift truck in the transport position.
- Hold down the
button, "BUCKET" MODE is confirmed by a sound signal and the indicator lamp coming on.
- Press this button again or switch off the ignition with the ignition key to return to "HANDLING MODE.
- Protection against tilting forwards during aggravating movements is guaranteed, except when the telescope is retracted.
STATUS OF THE DEVICE
HALTED DRIVING TELESCOPE(S) RETRACTED
-The “BUCKET mode deactivates automatically if the lift truck remains stationary.
-No sound alarm.
-Indicator lamp A9 on.
-No sound alarm.
-Indicator lamp A9 on.
N°297733
Kg
Kg
STANDARD
MODE
kg
XX
kg
X
"SUSPENDED LOAD" MODE
USE WITH LIFTING DEVICE (offering a higher margin of safety)
- Place the lift truck in the transport position.
- Press the
button, the “SUSPENDED LOAD MODE is confirmed by a sound signal and the indicator lamp coming
on. Hydraulic tilting movements are neutralised, as well as the lifting movement when the longitudinal stability limit
is reached (indicator lamp A8 lit).
- Press this button again or switch off the ignition with the ignition key to return to "HANDLING MODE.
- Protection against tilting forwards during aggravating movements is guaranteed, except when the telescope is retracted.
2 - 42
A8
A7
A6
A5
A4
A3
A2
A1
A9
647776 (28/02/2020)
