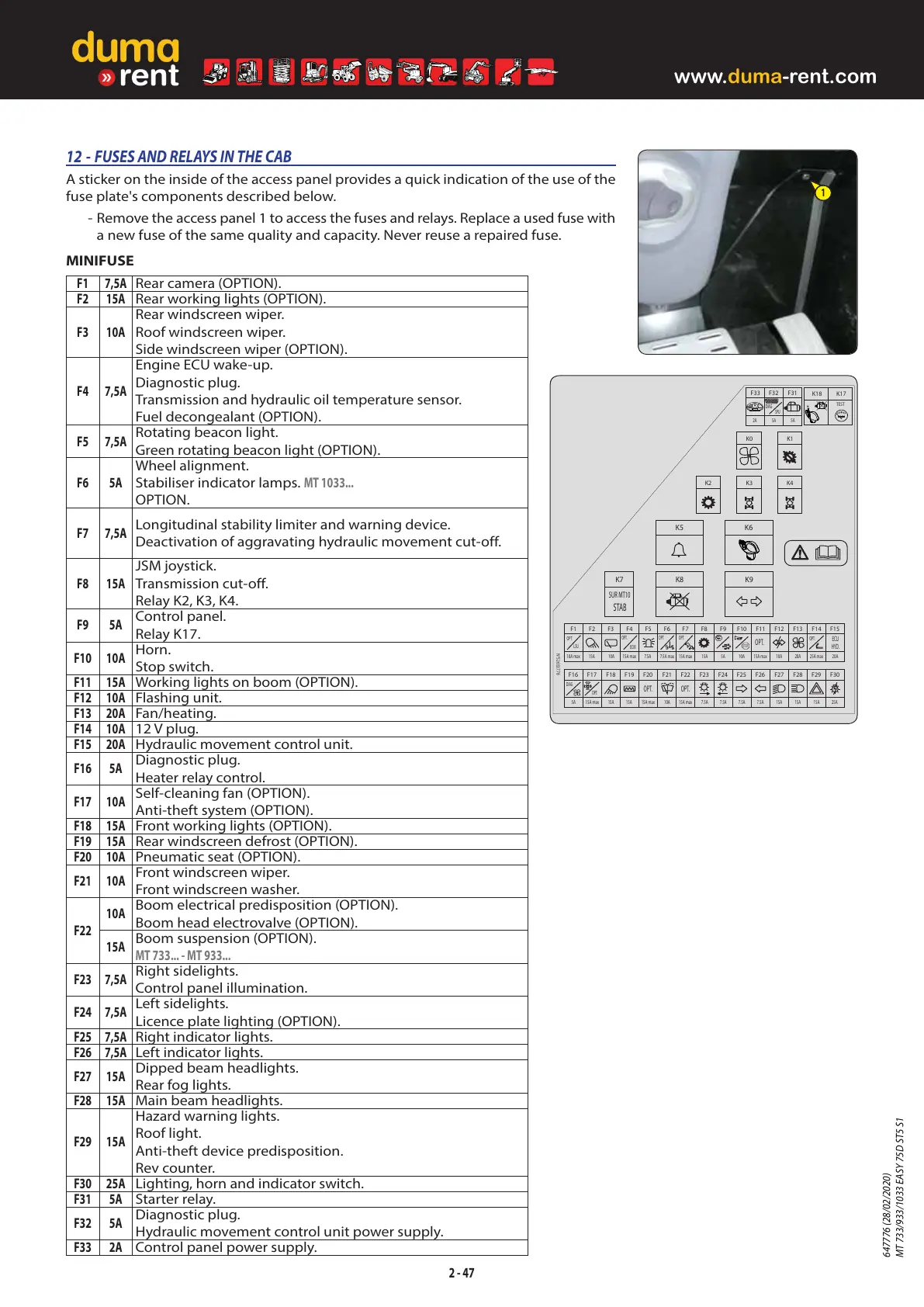

12 - FUSES AND RELAYS IN THE CAB
A sticker on the inside of the access panel provides a quick indication of the use of the
fuse plate's components described below.
- Remove the access panel1 to access the fuses and relays. Replace a used fuse with
a new fuse of the same quality and capacity. Never reuse a repaired fuse.
MINIFUSE
F1 7,5A Rear camera (OPTION).
F2 15A Rear working lights (OPTION).
F3 10A
Rear windscreen wiper.
Roof windscreen wiper.
Side windscreen wiper (OPTION).
F4 7,5A
Engine ECU wake-up.
Diagnostic plug.
Transmission and hydraulic oil temperature sensor.
Fuel decongealant (OPTION).
F5 7,5A
Rotating beacon light.
Green rotating beacon light (OPTION).
F6 5A
Wheel alignment.
Stabiliser indicator lamps. MT1033...
OPTION.
F7 7,5A
Longitudinal stability limiter and warning device.
Deactivation of aggravating hydraulic movement cut-off.
F8 15A
JSM joystick.
Transmission cut-off.
Relay K2, K3, K4.
F9 5A
Control panel.
Relay K17.
F10 10A
Horn.
Stop switch.
F11 15A Working lights on boom (OPTION).
F12 10A Flashing unit.
F13 20A Fan/heating.
F14 10A 12V plug.
F15 20A Hydraulic movement control unit.
F16 5A
Diagnostic plug.
Heater relay control.
F17 10A
Self-cleaning fan (OPTION).
Anti-theft system (OPTION).
F18 15A Front working lights (OPTION).
F19 15A Rear windscreen defrost (OPTION).
F20 10A Pneumatic seat (OPTION).
F21 10A
Front windscreen wiper.
Front windscreen washer.
F22
10A
Boom electrical predisposition (OPTION).
Boom head electrovalve (OPTION).
15A
Boom suspension (OPTION).
MT733...-MT933...
F23 7,5A
Right sidelights.
Control panel illumination.
F24 7,5A
Left sidelights.
Licence plate lighting (OPTION).
F25 7,5A Right indicator lights.
F26 7,5A Left indicator lights.
F27 15A
Dipped beam headlights.
Rear fog lights.
F28 15A Main beam headlights.
F29 15A
Hazard warning lights.
Roof light.
Anti-theft device predisposition.
Rev counter.
F30 25A Lighting, horn and indicator switch.
F31 5A Starter relay.
F32 5A
Diagnostic plug.
Hydraulic movement control unit power supply.
F33 2A Control panel power supply.
2 - 47
K5 K6
K9K8
K7
K4K3K2
K1K0
F30F26 F27 F28 F29F16 F17 F18 F19 F20 F21 F22 F23 F24 F25
15A max10A15A max15A 15A max5A 7.5A7.5A 15A7.5A 15A 15A15A 25A7.5A
OPT.
DIAG
OPT.OPT.
F15F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14
20A25A max20A10A max 15A max10A15A 7.5A 7.5A max 15A max 5A 10A 15A max15A 10A
OPT.OPT.
ECM
ECU
HYD.
OPT.
OPT.
N°52653778
K17
STOP
SUR MT10
LSU
OPT.
OPT.
F33 F32 F31
2A 5A 5A
DIAG
SPU
TEST
K18
STOP.
STAB
1
647776 (28/02/2020) MT 733/933/1033 EASY 75D ST5 S1
