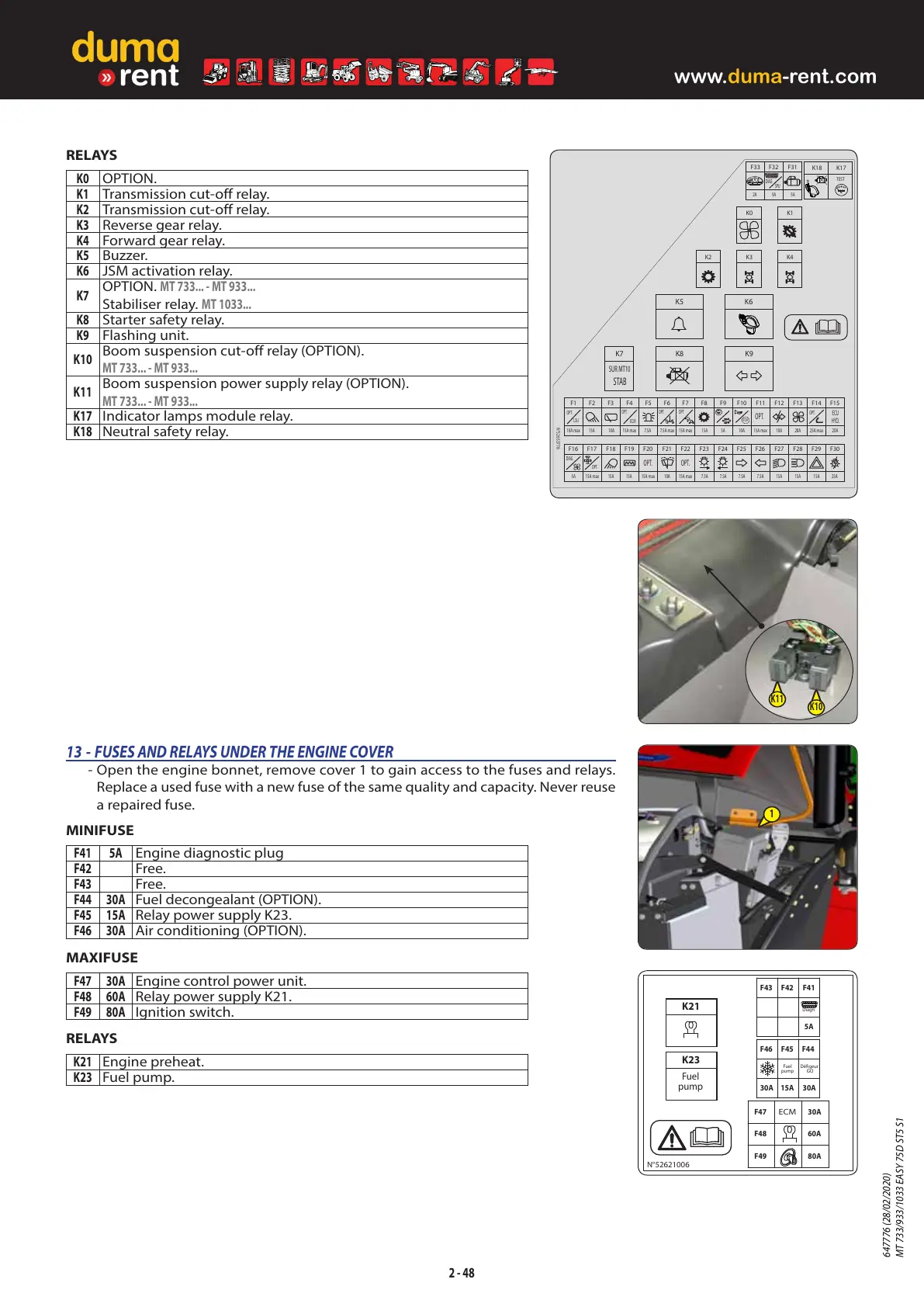

RELAYS
K0 OPTION.
K1 Transmission cut-off relay.
K2 Transmission cut-off relay.
K3 Reverse gear relay.
K4 Forward gear relay.
K5 Buzzer.
K6 JSM activation relay.
K7
OPTION. MT733...-MT933...
Stabiliser relay. MT1033...
K8
Starter safety relay.
K9 Flashing unit.
K10
Boom suspension cut-off relay (OPTION).
MT733...-MT933...
K11
Boom suspension power supply relay (OPTION).
MT733...-MT933...
K17
Indicator lamps module relay.
K18 Neutral safety relay.
13 - FUSES AND RELAYS UNDER THE ENGINE COVER
- Open the engine bonnet, remove cover1 to gain access to the fuses and relays.
Replace a used fuse with a new fuse of the same quality and capacity. Never reuse
a repaired fuse.
MINIFUSE
F41 5A Engine diagnostic plug
F42 Free.
F43 Free.
F44 30A Fuel decongealant (OPTION).
F45 15A Relay power supply K23.
F46 30A Air conditioning (OPTION).
MAXIFUSE
F47 30A Engine control power unit.
F48 60A Relay power supply K21.
F49 80A Ignition switch.
RELAYS
K21 Engine preheat.
K23 Fuel pump.
2 - 48
K23
K21
30A 30A
5A
F44
F41F42F43
80AF49
F48
F47
60A
30A
F46 F45
15A
pump
Fuel
N°52621006
Diagn
pump
Fuel
GO
Dégeur
ECM
1
K11
K10
K5 K6
K9K8
K7
K4K3K2
K1K0
F30F26 F27 F28 F29F16 F17 F18 F19 F20 F21 F22 F23 F24 F25
15A max10A15A max15A 15A max5A 7.5A7.5A 15A7.5A 15A 15A15A 25A7.5A
OPT.
DIAG
OPT.OPT.
F15F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14
20A25A max20A10A max 15A max10A15A 7.5A 7.5A max 15A max 5A 10A 15A max15A 10A
OPT.OPT.
ECM
ECU
HYD.
OPT.
OPT.
N°52653778
K17
STOP
SUR MT10
LSU
OPT.
OPT.
F33 F32 F31
2A 5A 5A
DIAG
SPU
TEST
K18
STOP.
STAB
