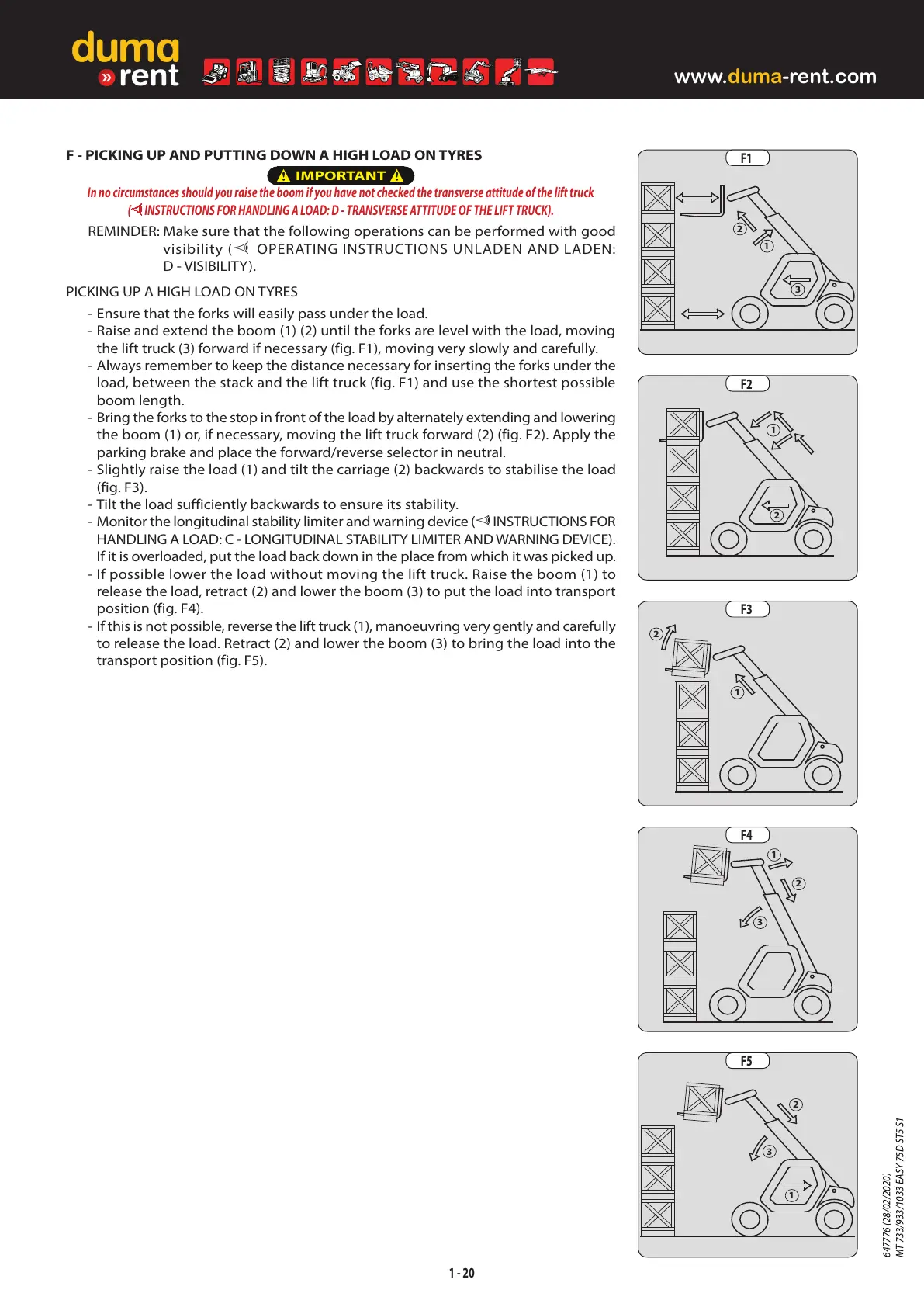

F- PICKING UP AND PUTTING DOWN A HIGH LOAD ON TYRES
t
IMPORTANT
t
In no circumstances should you raise the boom if you have not checked the transverse attitude of the lift truck
(eINSTRUCTIONS FOR HANDLING A LOAD: D-TRANSVERSE ATTITUDE OF THE LIFT TRUCK).
REMINDER: Make sure that the following operations can be performed with good
visibility (e OPERATING INSTRUCTIONS UNLADEN AND LADEN:
D-VISIBILITY).
PICKING UP A HIGH LOAD ON TYRES
- Ensure that the forks will easily pass under the load.
- Raise and extend the boom (1) (2) until the forks are level with the load, moving
the lift truck (3) forward if necessary (fig.F1), moving very slowly and carefully.
- Always remember to keep the distance necessary for inserting the forks under the
load, between the stack and the lift truck (fig.F1) and use the shortest possible
boom length.
- Bring the forks to the stop in front of the load by alternately extending and lowering
the boom (1) or, if necessary, moving the lift truck forward (2) (fig.F2). Apply the
parking brake and place the forward/reverse selector in neutral.
- Slightly raise the load (1) and tilt the carriage (2) backwards to stabilise the load
(fig.F3).
- Tilt the load sufficiently backwards to ensure its stability.
- Monitor the longitudinal stability limiter and warning device (
eINSTRUCTIONS FOR
HANDLING A LOAD: C-LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE).
If it is overloaded, put the load back down in the place from which it was picked up.
- If possible lower the load without moving the lift truck. Raise the boom (1) to
release the load, retract (2) and lower the boom (3) to put the load into transport
position (fig.F4).
- If this is not possible, reverse the lift truck (1), manoeuvring very gently and carefully
to release the load. Retract (2) and lower the boom (3) to bring the load into the
transport position (fig.F5).
