1 - 21
F6
1
2
3
F7
1
2
F8
1
F9
1
F10

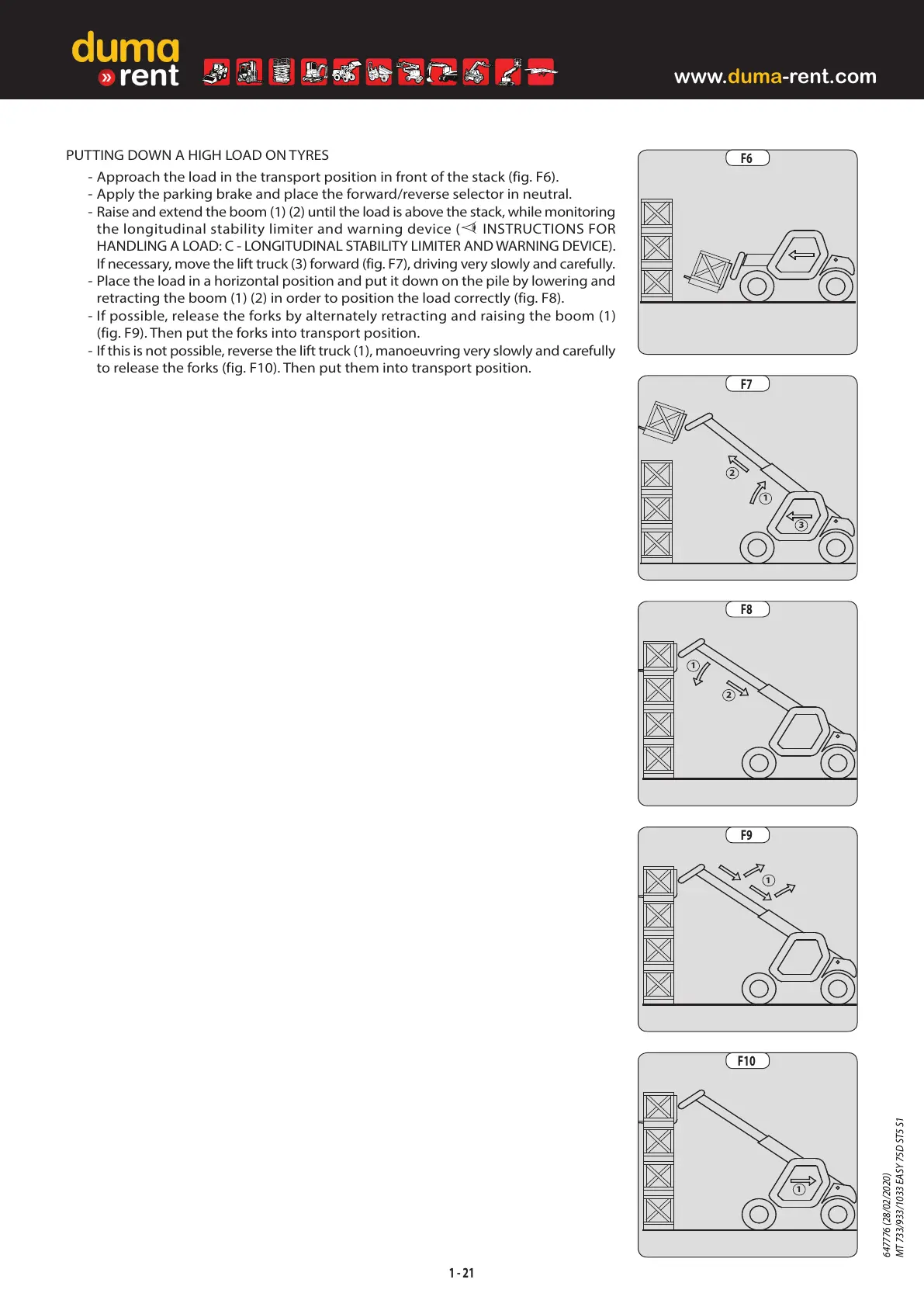

PUTTING DOWN A HIGH LOAD ON TYRES
- Approach the load in the transport position in front of the stack (fig.F6).
- Apply the parking brake and place the forward/reverse selector in neutral.
- Raise and extend the boom (1) (2) until the load is above the stack, while monitoring
the longitudinal stability limiter and warning device (
e INSTRUCTIONS FOR
HANDLING A LOAD: C-LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE).
If necessary, move the lift truck (3) forward (fig.F7), driving very slowly and carefully.
- Place the load in a horizontal position and put it down on the pile by lowering and
retracting the boom (1) (2) in order to position the load correctly (fig.F8).
- If possible, release the forks by alternately retracting and raising the boom (1)
(fig.F9). Then put the forks into transport position.
- If this is not possible, reverse the lift truck (1), manoeuvring very slowly and carefully
to release the forks (fig.F10). Then put them into transport position.
647776 (28/02/2020) MT 733/933/1033 EASY 75D ST5 S1
