Manitou MT 733 EASY 75D ST5 S1 User Manual

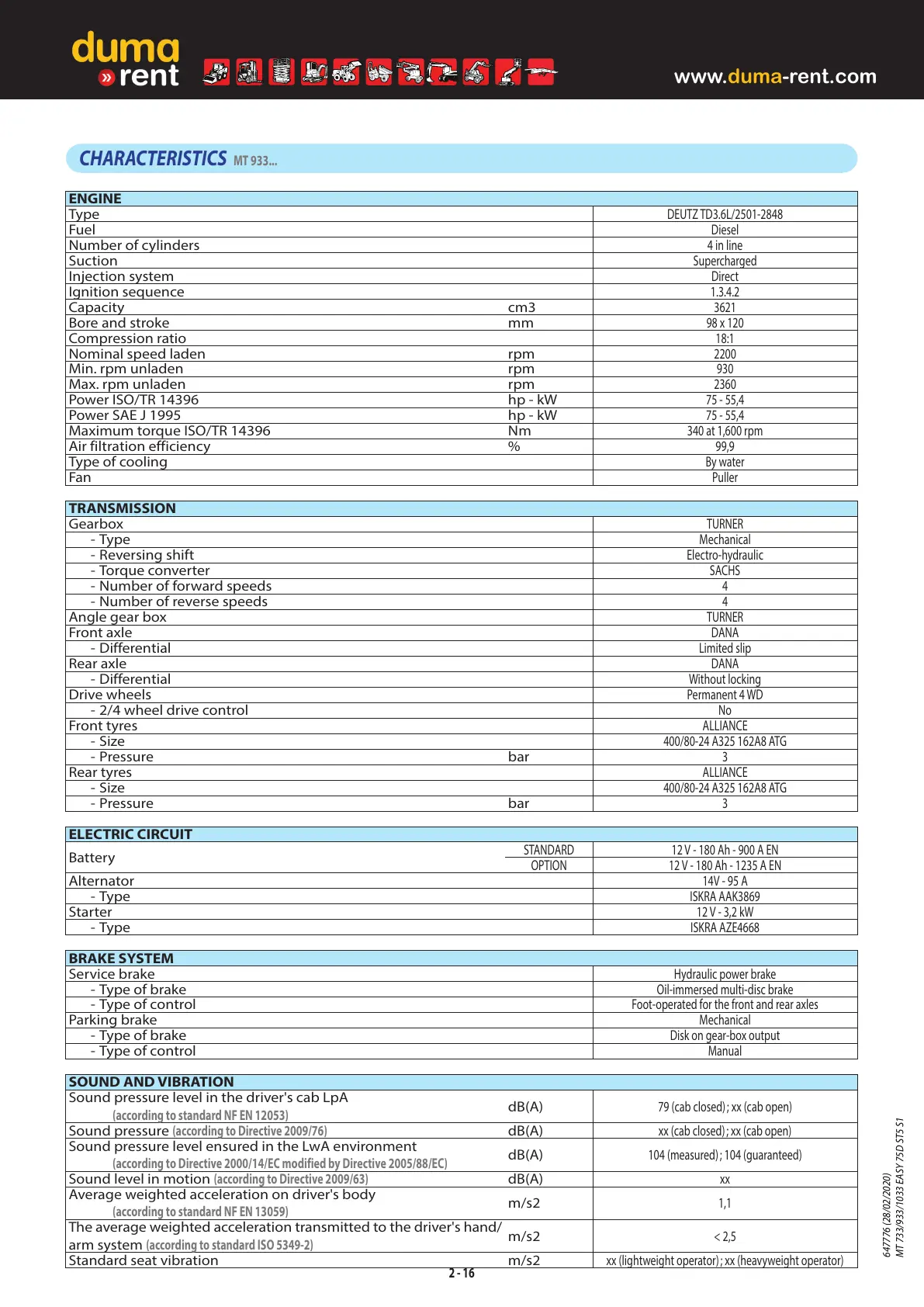

CHARACTERISTICS MT933...
ENGINE
Type
DEUTZ TD3.6L/2501-2848
Fuel Diesel
Number of cylinders 4 in line
Suction Supercharged
Injection system Direct
Ignition sequence 1.3.4.2
Capacity cm3 3621
Bore and stroke mm 98 x120
Compression ratio 18:1
Nominal speed laden rpm 2200
Min. rpm unladen rpm 930
Max. rpm unladen rpm 2360
Power ISO/TR14396 hp-kW 75-55,4
Power SAE J1995 hp-kW 75-55,4
Maximum torque ISO/TR14396 Nm 340 at 1,600rpm
Air filtration efficiency % 99,9
Type of cooling By water
Fan Puller
TRANSMISSION
Gearbox
TURNER
- Type Mechanical
- Reversing shift Electro-hydraulic
- Torque converter SACHS
- Number of forward speeds 4
- Number of reverse speeds 4
Angle gear box TURNER
Front axle DANA
- Differential Limited slip
Rear axle DANA
- Differential Without locking
Drive wheels Permanent4 WD
- 2/4 wheel drive control No
Front tyres ALLIANCE
- Size 400/80-24 A325162A8 ATG
- Pressure bar 3
Rear tyres ALLIANCE
- Size 400/80-24 A325162A8 ATG
- Pressure bar 3
ELECTRIC CIRCUIT
Battery
STANDARD 12 V-180 Ah-900 A EN
OPTION 12 V-180 Ah-1235 A EN
Alternator 14V-95 A
- Type ISKRA AAK3869
Starter 12 V-3,2 kW
- Type ISKRA AZE4668
BRAKE SYSTEM
Service brake
Hydraulic power brake
- Type of brake Oil-immersed multi-disc brake
- Type of control Foot-operated for the front and rear axles
Parking brake Mechanical
- Type of brake Disk on gear-box output
- Type of control Manual
SOUND AND VIBRATION
Sound pressure level in the driver's cab LpA
(according to standard NF EN12053)
dB(A) 79 (cab closed) ; xx (cab open)
Sound pressure (according to Directive2009/76) dB(A) xx (cab closed) ; xx (cab open)
Sound pressure level ensured in the LwA environment
(according to Directive2000/14/EC modified by Directive2005/88/EC)
dB(A) 104 (measured) ; 104 (guaranteed)
Sound level in motion (according to Directive2009/63) dB(A) xx
Average weighted acceleration on driver's body
(according to standard NF EN13059)
m/s2 1,1
The average weighted acceleration transmitted to the driver's hand/
arm system (according to standard ISO5349-2)
m/s2 < 2,5
Standard seat vibration m/s2 xx (lightweight operator) ; xx (heavyweight operator)
