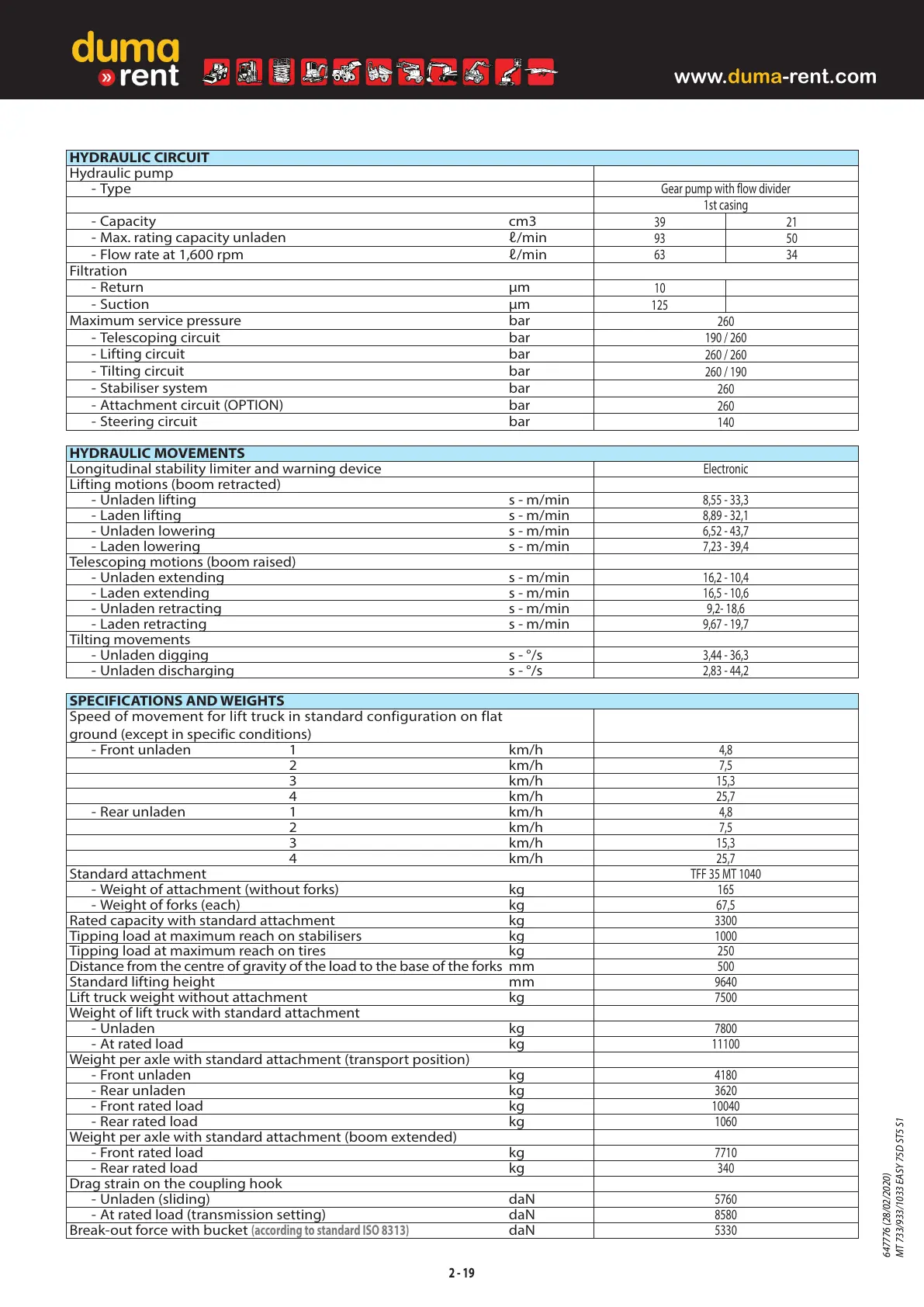

HYDRAULIC CIRCUIT
Hydraulic pump
- Type
Gear pump with flow divider
1st casing
- Capacity cm3
39 21
- Max. rating capacity unladen ℓ/min
93 50
- Flow rate at1,600 rpm ℓ/min
63 34
Filtration
- Return µm
10
- Suction µm
125
Maximum service pressure bar
260
- Telescoping circuit bar
190 /260
- Lifting circuit bar
260 /260
- Tilting circuit bar
260 /190
- Stabiliser system bar
260
- Attachment circuit (OPTION) bar
260
- Steering circuit bar
140
HYDRAULIC MOVEMENTS
Longitudinal stability limiter and warning device
Electronic
Lifting motions (boom retracted)
- Unladen lifting s-m/min
8,55-33,3
- Laden lifting s-m/min 8,89-32,1
- Unladen lowering s-m/min 6,52-43,7
- Laden lowering s-m/min 7,23-39,4
Telescoping motions (boom raised)
- Unladen extending s-m/min
16,2-10,4
- Laden extending s-m/min 16,5-10,6
- Unladen retracting s-m/min 9,2-18,6
- Laden retracting s-m/min 9,67-19,7
Tilting movements
- Unladen digging s-°/s
3,44-36,3
- Unladen discharging s-°/s 2,83-44,2
SPECIFICATIONS AND WEIGHTS
Speed of movement for lift truck in standard configuration on flat
ground (except in specific conditions)
- Front unladen 1 km/h
4,8
2 km/h 7,5
3 km/h 15,3
4 km/h 25,7
- Rear unladen 1 km/h 4,8
2 km/h 7,5
3 km/h 15,3
4 km/h 25,7
Standard attachment TFF35 MT1040
- Weight of attachment (without forks) kg 165
- Weight of forks (each) kg 67,5
Rated capacity with standard attachment kg 3300
Tipping load at maximum reach on stabilisers kg 1000
Tipping load at maximum reach on tires kg 250
Distance from the centre of gravity of the load to the base of the forks mm 500
Standard lifting height mm 9640
Lift truck weight without attachment kg 7500
Weight of lift truck with standard attachment
- Unladen kg
7800
- At rated load kg 11100
Weight per axle with standard attachment (transport position)
- Front unladen kg
4180
- Rear unladen kg 3620
- Front rated load kg 10040
- Rear rated load kg 1060
Weight per axle with standard attachment (boom extended)
- Front rated load kg
7710
- Rear rated load kg 340
Drag strain on the coupling hook
- Unladen (sliding) daN
5760
- At rated load (transmission setting) daN 8580
Break-out force with bucket (according to standard ISO8313) daN 5330
