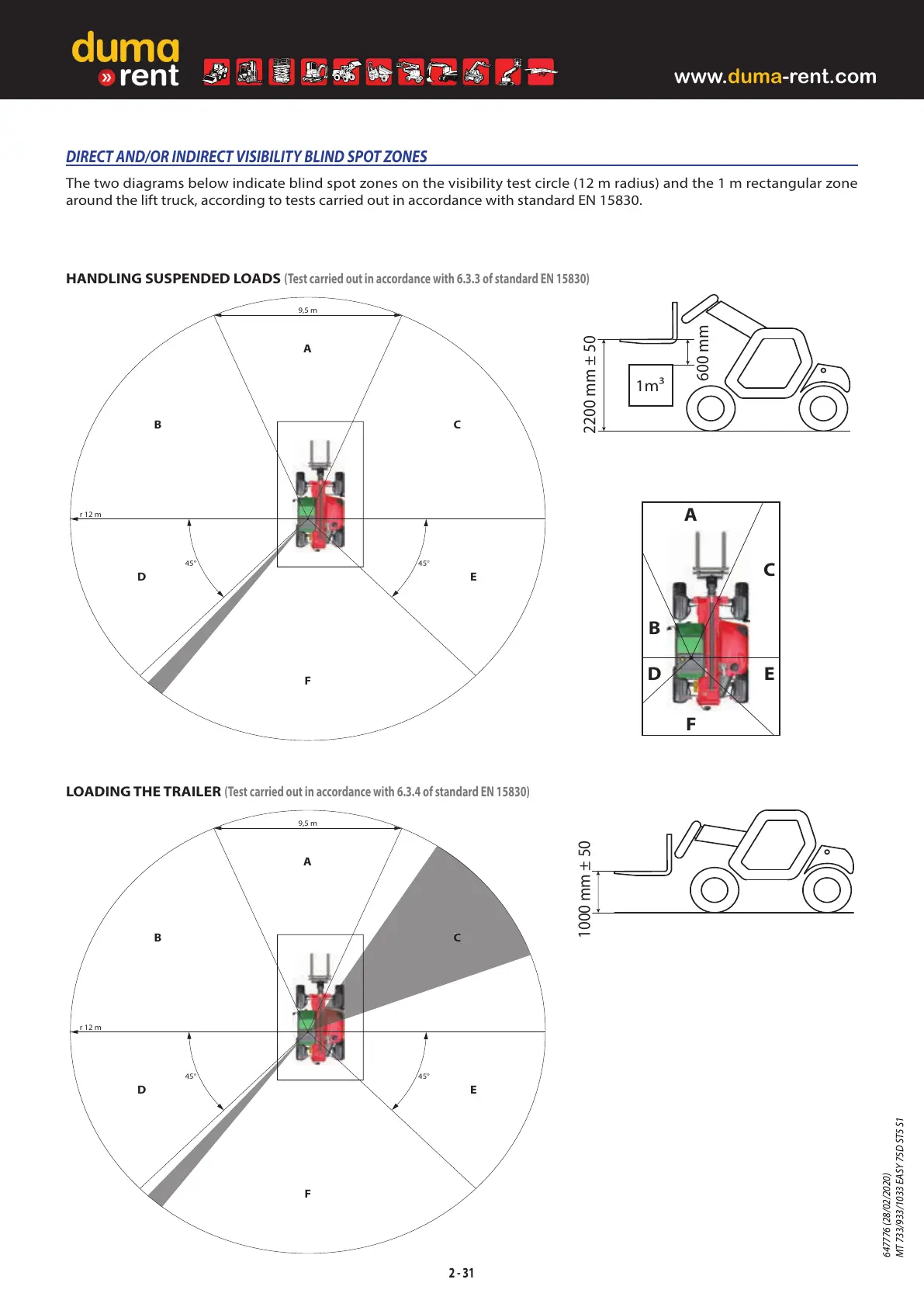

DIRECT AND/OR INDIRECT VISIBILITY BLIND SPOT ZONES
The two diagrams below indicate blind spot zones on the visibility test circle (12m radius) and the 1m rectangular zone
around the lift truck, according to tests carried out in accordance with standard EN15830.
HANDLING SUSPENDED LOADS
(Test carried out in accordance with 6.3.3 of standard EN15830)
LOADING THE TRAILER (Test carried out in accordance with 6.3.4 of standard EN15830)
2 - 31
r 12 m
9,5 m
45° 45°
A
F
ED
B C
600 mm
2200 mm ± 50
1m3
A
F
ED
B
C
1000 mm ± 50
r 12 m
9,5 m
45° 45°
A
F
ED
B C
C
647776 (28/02/2020) MT 733/933/1033 EASY 75D ST5 S1
