Manitowoc Grove RT540E Service Maintenance Manual

BOOM RT540E SERVICE MANUAL
4-12 Published 4-20-2015, Control # 502-01

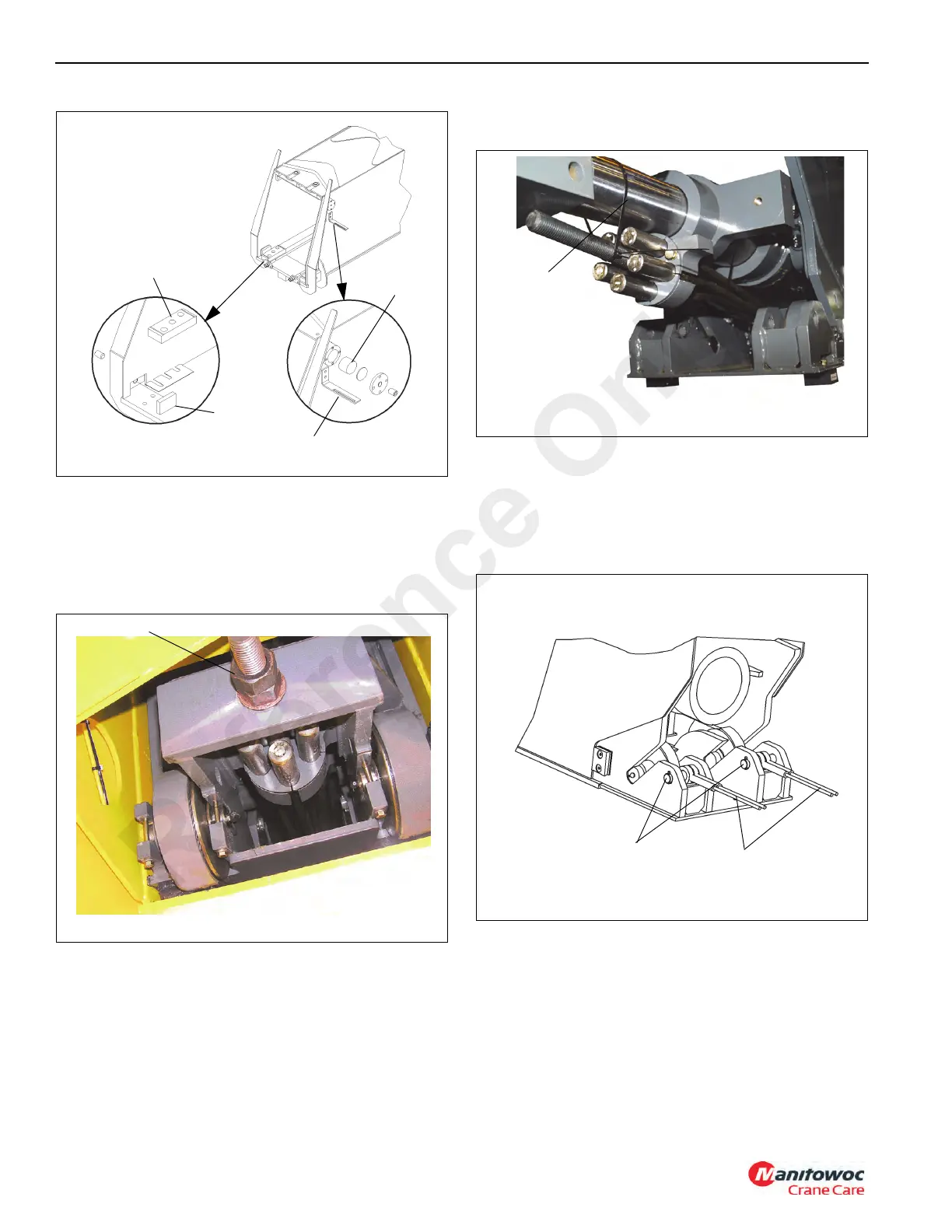

8. Lift up on the front of the assembly and remove the wear
pad bolts and wear pads (Figure 4-20, 4) from the
bottom of the inner mid. (Figure 4-20)
9. Remove the lock nut and adjustment nut (Figure 4-21, 1)
from the extend cable adjustment bolt. This will free the
extend cable from the inner mid weldment.
10. Secure the extend cable keeper plate and adjustment
bolt to the tele cylinder with cable ties (Figure 4-22, 1) or
tape. Failure to do so may allow the cables and keeper
to become jammed during disassembly.
NOTE: It is not necessary to remove the extend cable
keeper plates at this time. If it is necessary to
remove the cable keeper plates, be sure to mark
the extend cable in the proper sequence for re-
assembly.
11. Continue to pull the assembly from the inner mid section
until access to the rear of the outer mid is gained to
disconnect the four retract cables (Figure 4-23, 1).
12. Remove the cotter pins and pins (Figure 4-23, 2)
securing the four retract cables to the rear of the outer
mid.
13. If necessary, remove the two bolts securing the bottom
wear pad to the inner mid. Remove wear pad.
14. If necessary, remove the two bolts securing each lower
rear side wear pad to the inner mid. Remove wear pads
and shims. Note location of shims for installation.
15. Remove the inner mid Section from outer/fly/tele
cylinder assembly.
FIGURE 4-20
1
3
2
6748-25
4
1
6818-15
FIGURE 4-21
FIGURE 4-22
6748-29
1
FIGURE 4-23
2
1
6748-27
