Manitowoc Grove RT540E Service Maintenance Manual

Published 4-20-2015, Control # 502-01 7-11
RT540E SERVICE MANUAL POWER TRAIN
7
GROVE
Figure 7-4 Item Numbers

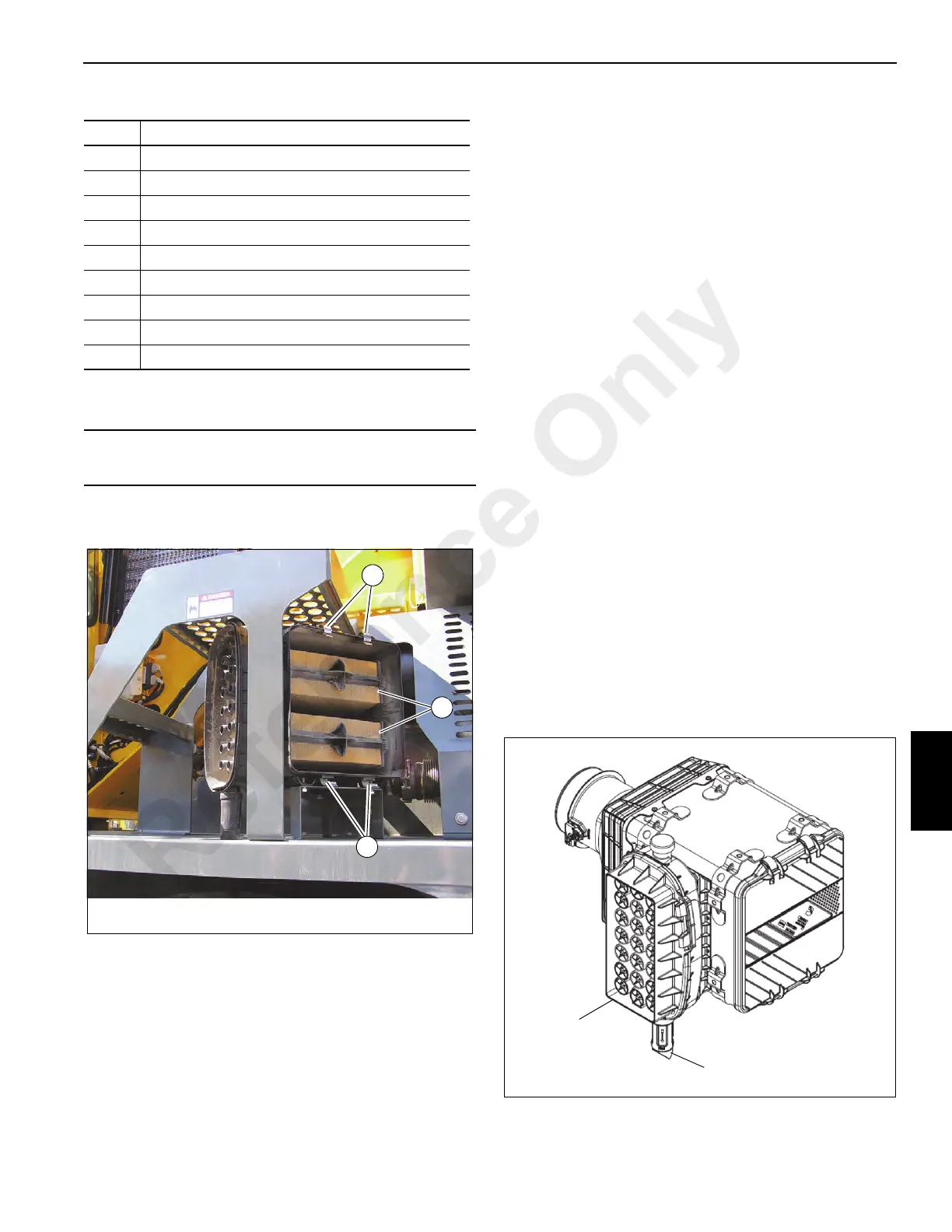

Filter Element Replacement
1. Lift the clips (1) (Figure 7-5) securing the cover to the air
cleaner body and remove the cover.
2. Remove primary filter (2) (Figure 7-5) from the air
cleaner and inspect for foreign material and marks of
dust.
3. Remove secondary filter (not shown) from the air
cleaner every third primary filter change.
4. Thoroughly clean the sealing surface and inside of the
air filter housing. Inspect all parts of the intake system
and air cleaner.
5. Install new secondary filter (if necessary) and new
primary filter.
6. Place the cover back on the air cleaner housing and
secure with clips (1).
7. Check all connections and ducts for an air tight fit. Make
sure that all clamps, bolts, and connections are tight.
Check for holes in piping. Leaks in the air intake system
may send dust directly to the engine.
8. Replace decking access plate.
Element Cleaning
It is not recommended that filter elements be cleaned.
Cummins and most other manufacturers will not warrant a
cleaned air filter.
Air Cleaner Body
Before installing the filter element, remove foreign material
(leaves, lint or other foreign matter) that may have collected
inside the air cleaner body. Inspect the inside of the body for
dents or other damage that would interfere with air flow or
with the fins on the element or inside the body. Repair any
body dents, being careful not to damage the sealing
surfaces. Be sure to clean the sealing surface of the outlet
tube and the inside of the outlet tube, taking care not to
damage the sealing area on the tube.
Precleaner
The precleaner (1) (Figure 7-6) prevents large debris from
entering the air cleaner and should be cleaned periodically,
especially when working in severe dust conditions. Remove
the top half of the precleaner by releasing the two latches on
the sides of the precleaner. Remove all debris from inside
precleaner and reassemble.
Item Description
1 T-bolt Clamp
2 Elbow
3 Air Intake Tube
4 Elbow
5 Service Indicator
6 Air Cleaner Assembly
7 Precleaner
8 Vacuator Valve
9 Air Cleaner Mounting Bracket
CAUTION
Never service the air cleaner while the engine is running.
FIGURE 7-5
8087-1
1
2
1
FIGURE 7-6
1
7754
2
Reference Only
