RT880E SERVICE MANUAL HYDRAULIC SYSTEM
2

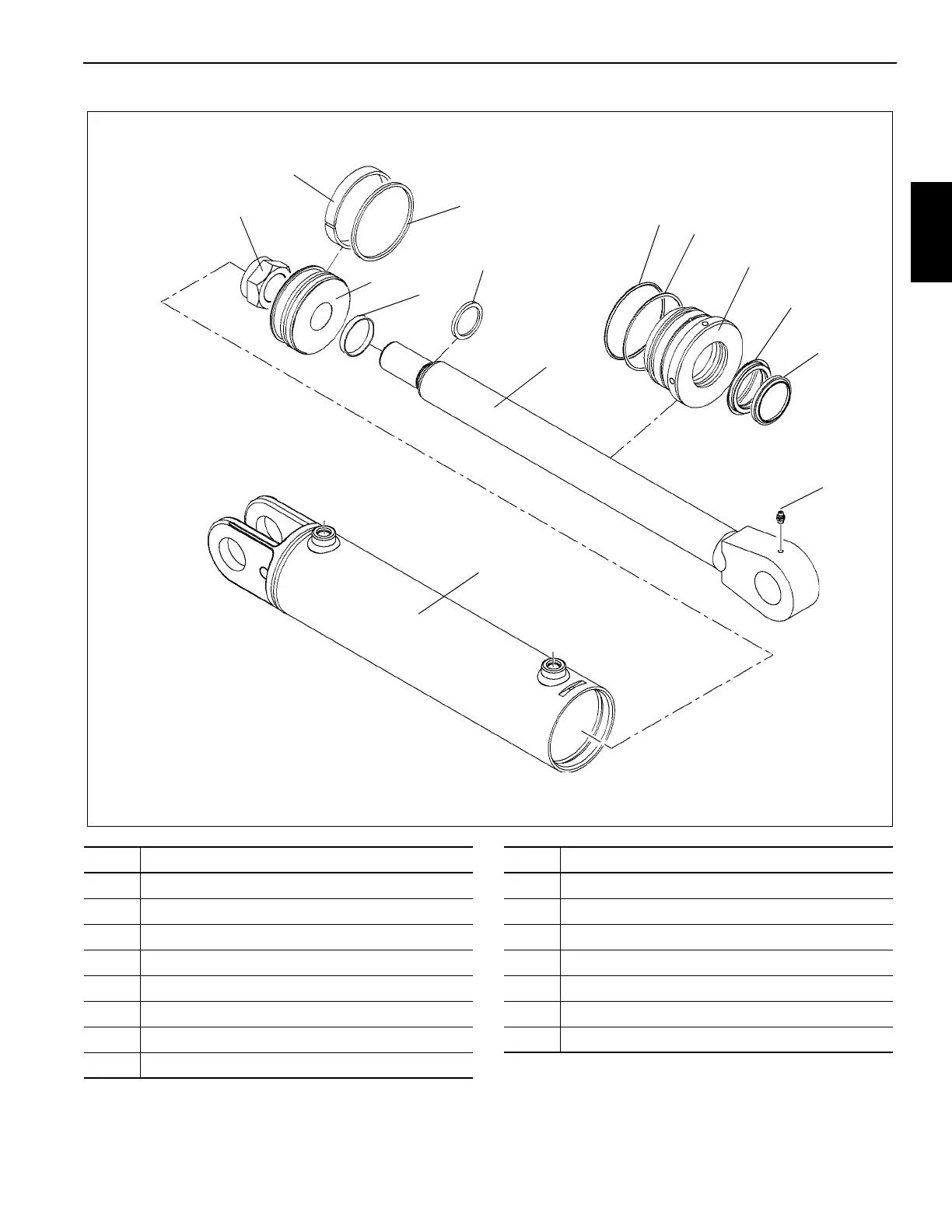

FIGURE 2-50
7074
13
12
11
10
6
14, 15
7
3
8
9
1
4
5
2
Item Description
1 Barrel
2Rod
3 Head
4Piston
5Spacer
6Nut
7O-ring
8 Wear Ring
Item Description
9 Piston Seal
10 O-ring
11 Backup Ring
12 Rod Seal
13 Wiper
14 Cap
15 Grease Fitting
