HYDRAULIC SYSTEM RT880E SERVICE MANUAL
2-92 Published 11-10-2014, Control # 524-00
9
1
3
4
13
7
5
6
8
10
12

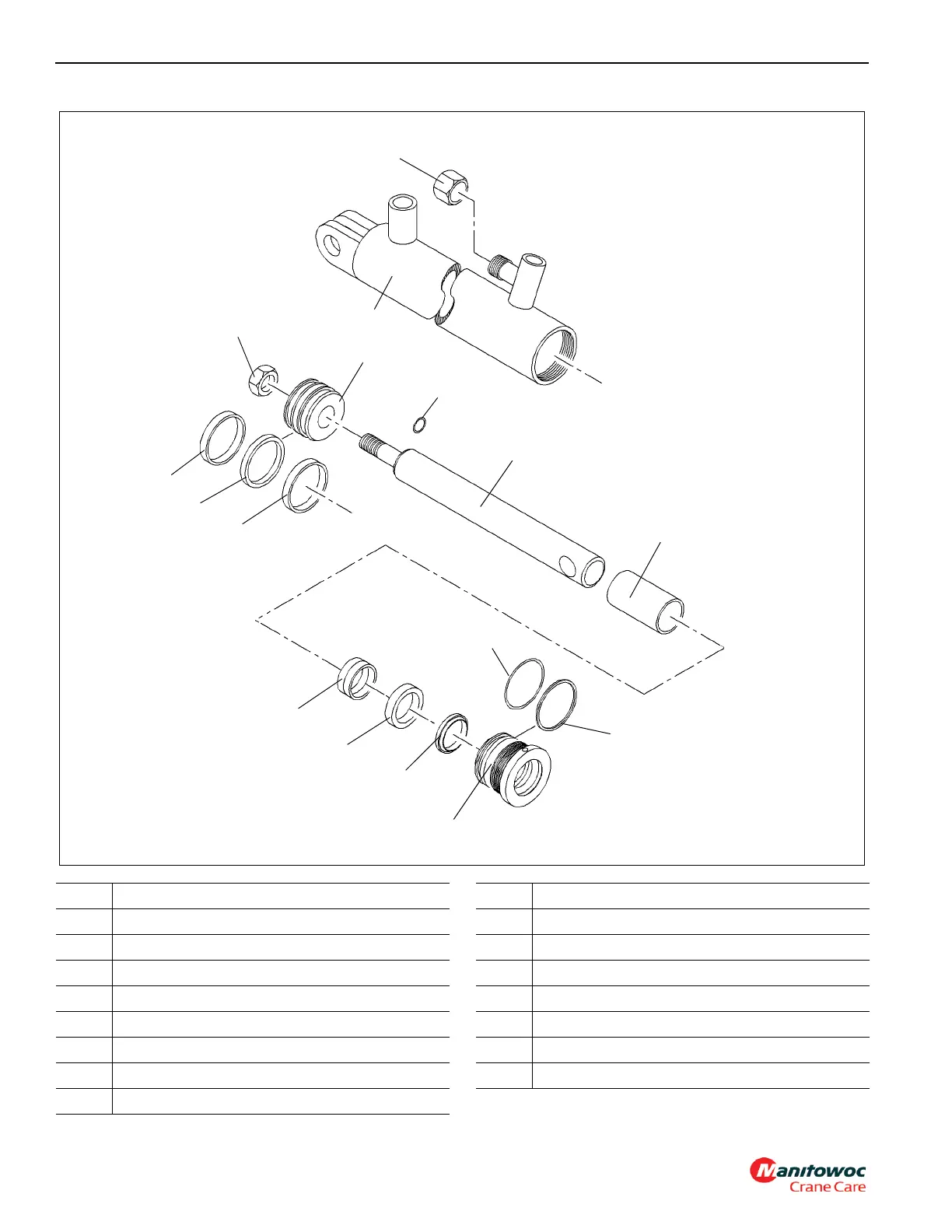

FIGURE 2-51
14
7073
2
11
15
8
Item Description
1 Barrel
2Rod
3Piston
4 Head
5Spacer
6Nut
7 Piston Seal
8 Wear Ring
Item Description
9O-ring
10 O-ring
11 Backup Ring
12 Rod Seal
13 Wiper Ring
14 Wear Ring
15 Cap
