RT880E SERVICE MANUAL HYDRAULIC SYSTEM
2

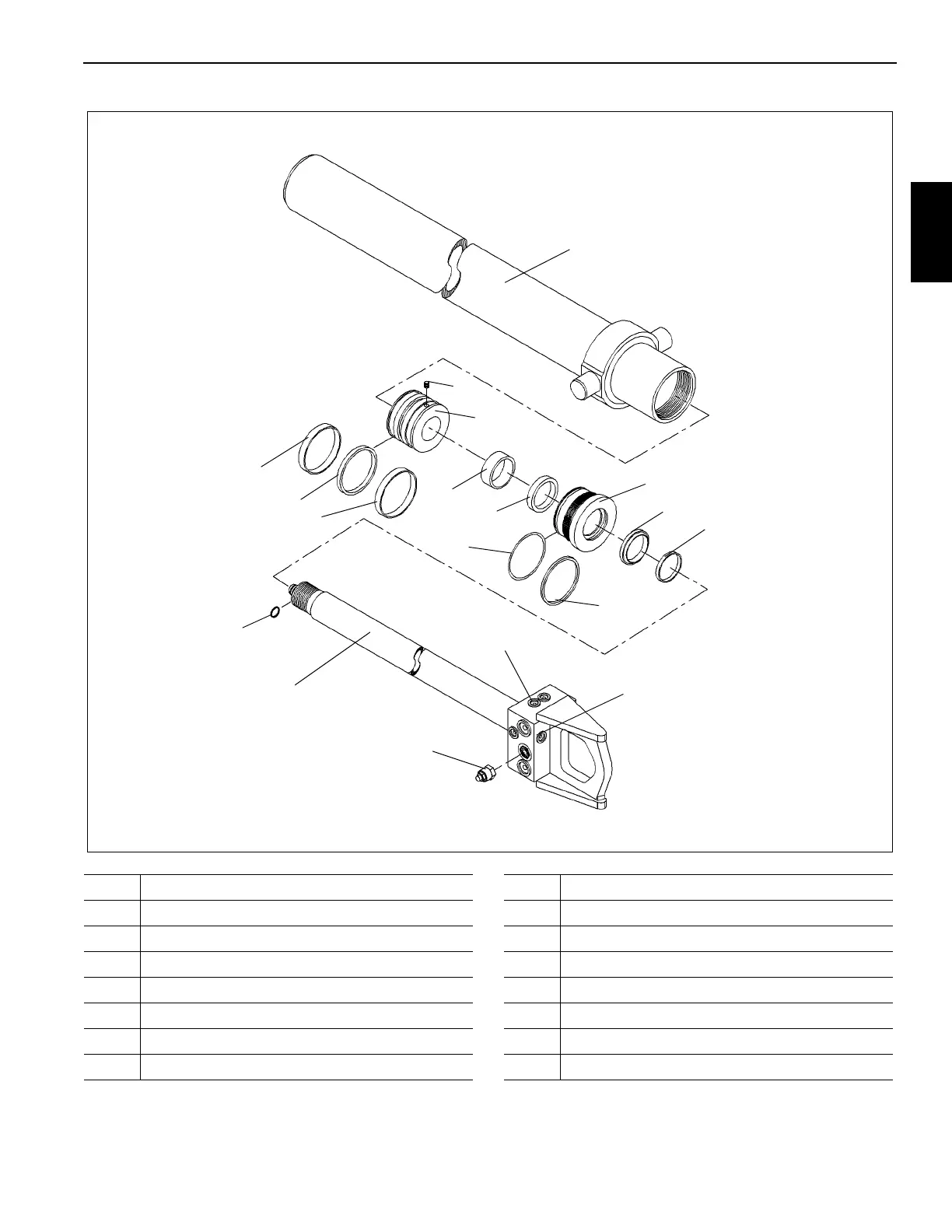

FIGURE 2-54
14
13
12
11
10
9
8
16
1
2
3
5
6
7
15
7063
4
14
7
1 Barrel
2Rod
3Piston
4Spacer
5 Head
6O-ring
7 Wear Ring
8 Piston Seal
9O-ring
10 Backup Ring
11 Rod Seal
12 Wiper Ring
13 Counterbalance Valve
14 Plug
15 O-ring
16 Setscrew
