BOOM RT880E SERVICE MANUAL
4-8 Published 11-10-2014, Control # 524-00
Item Description
57 Cable Retainer
58 Capscrew
59 Washer
60 Capscrew
61 Washer
62 Plate
63 Capscrew
64 Washer
65 Sheave Assembly
66 Extend Cables
67 Upper Telescope Cylinder
68 Lower Telescope Cylinder
69 Cable Anchor
70 Swivel Nut
Item Description
71 Hex Nut
72 Retract Cable
73 Cotter Pin
74 Washer
75 Pin Cylinder Mount
76 Bolt
77 Cylinder Support
78 Capscrew
79 Washer
80 Plate Cover
81 Capscrew
82 Washer
83 Wear Pad
84 Capscrew
85 Sheave Mount
FIGURE 4-1 continued

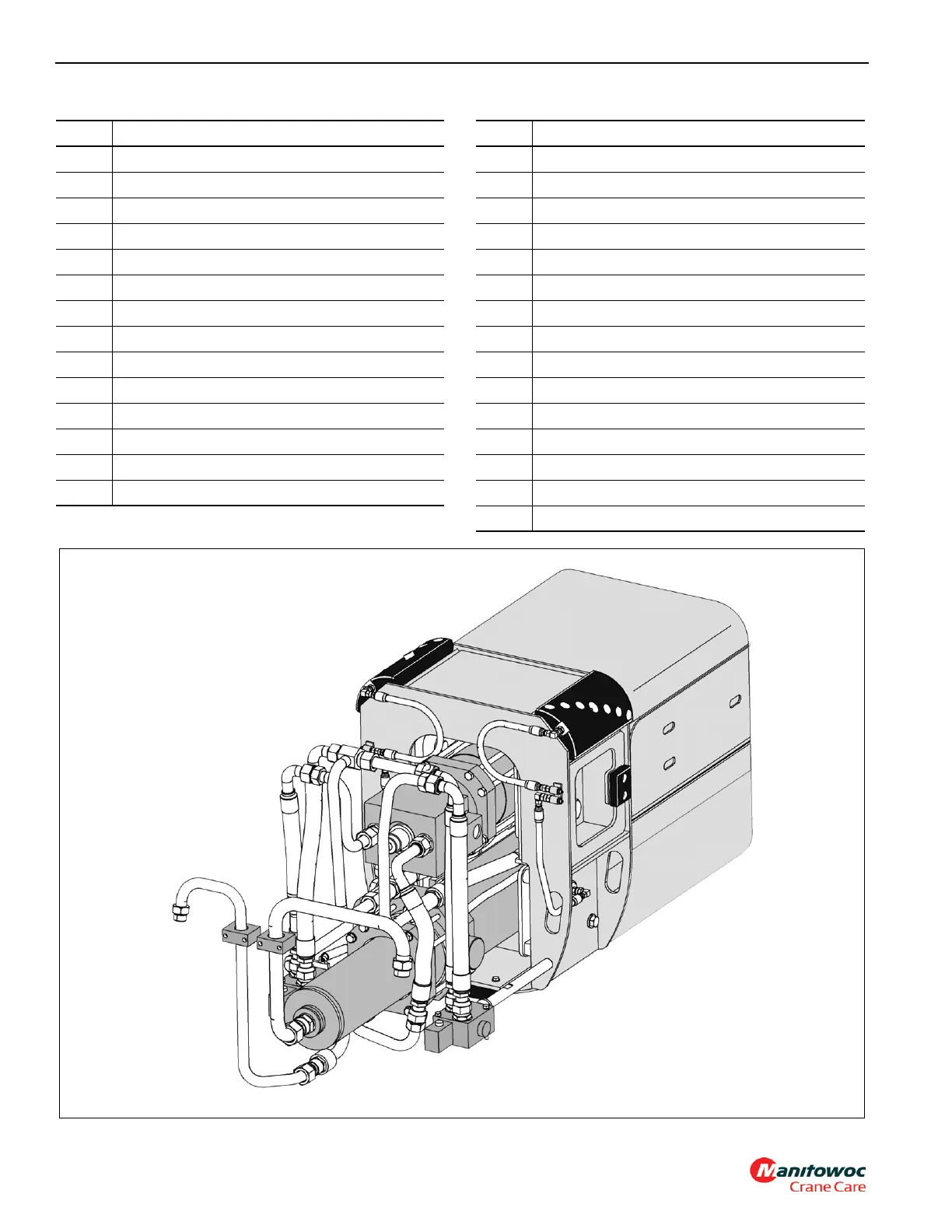

NOTE: View C shows the rear of the boom and the hose
routing to the upper and lower telescope cylin-
ders, cam operated valves and rear upper wear
pads.
View C
6471-5
To Next Page
