HOISTS AND COUNTERWEIGHT RT880E SERVICE MANUAL
5-14 Published 11-10-2014, Control # 524-00
1
3
8, 9, 10, 11
3
5
4
6, 7
5

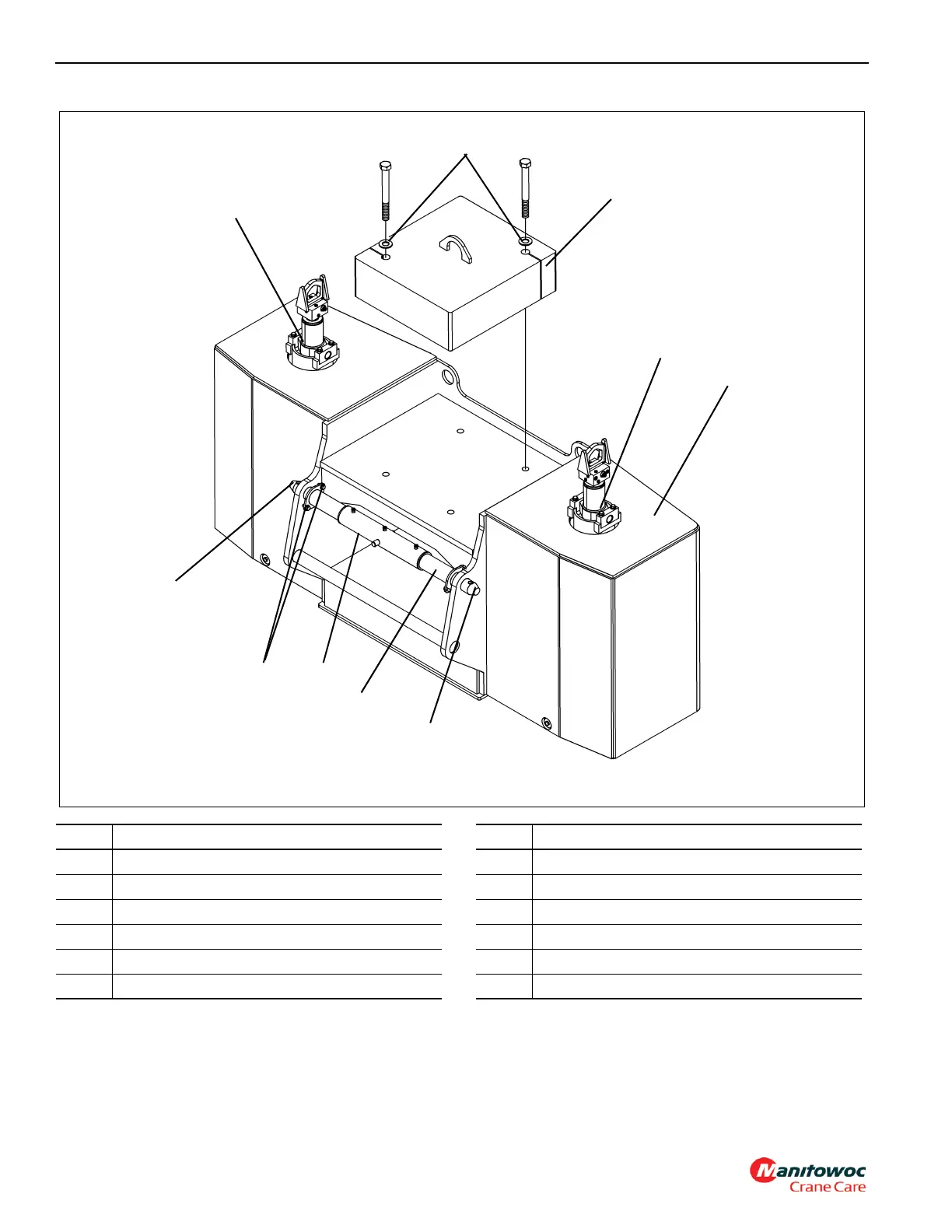

FIGURE 5-8
12
2
Item Description
1 Counterweight
2 Counterweight Pin Cylinder
3 Counterweight Removal Cylinder
4 Cylinder Support Weld
5 Ball Detent Pin
6Screw
Item Description
7Washer
8 Capscrew
9 Flatwasher
10 Lockwasher
11 Hex Nut
12 IPO Counterweight
