SWING SYSTEM RT880E SERVICE MANUAL
6-2 Published 11-10-2014, Control # 524-00
Regulated flow from the pressure reducing/sequence valve
is also provided to the power brake valve where it is available
for the activation of the swing brake when the pedal is
depressed.

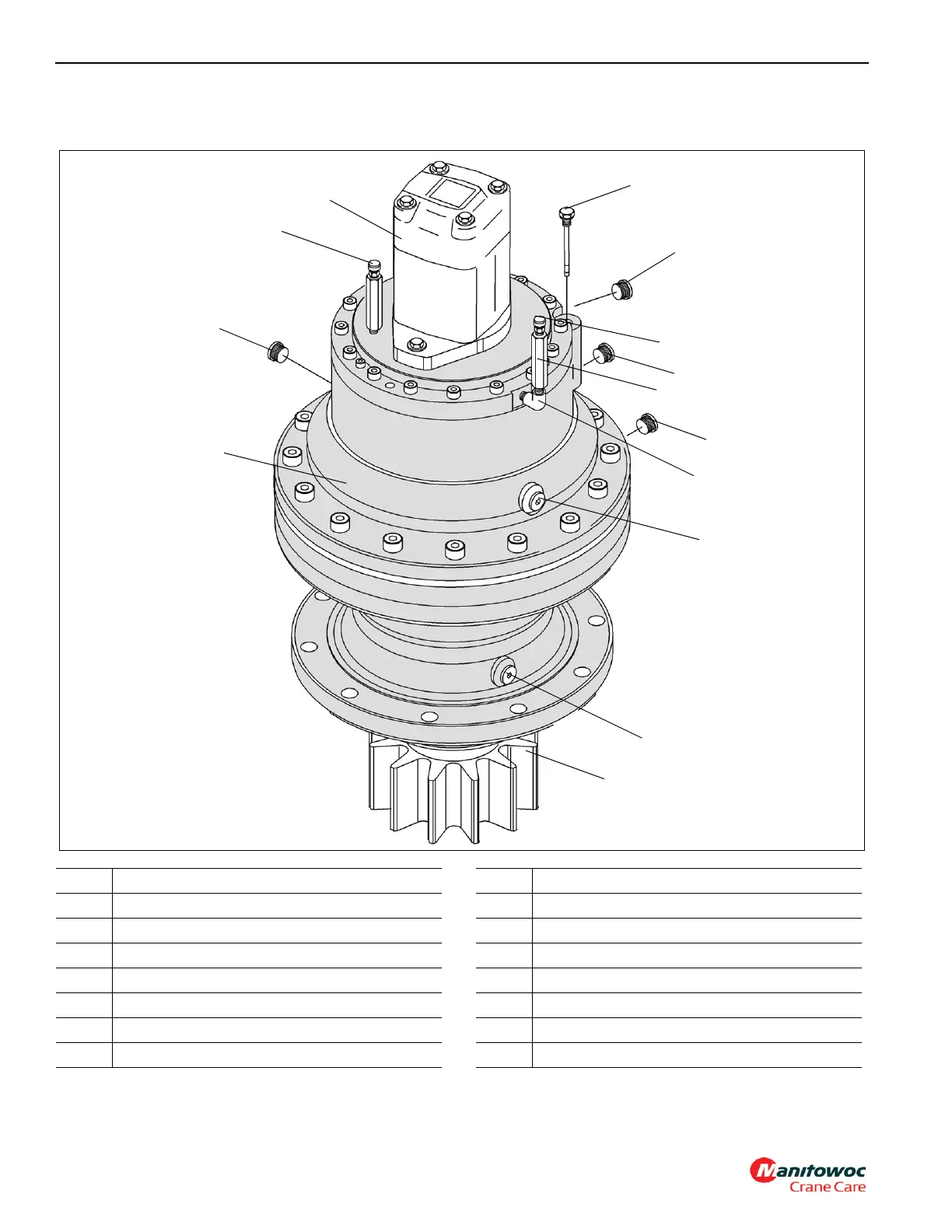

FIGURE 6-1
4
7
6
14
12
2
3
5
9
10
11
8
13
1
6493-1
Item Description
1Plug
2Plug
3Plug
4 Elbow
5Pipe
6 Breather
7Plug
Item Description
8 Dipstick
9 Breather
10 Plug
11 Motor
12 Gearbox and Brake
13 Plug
14 Pinion
