POWER TRAIN RT880E SERVICE MANUAL
7-16 Published 11-10-2014, Control # 524-00
Tier 4 Exhaust System

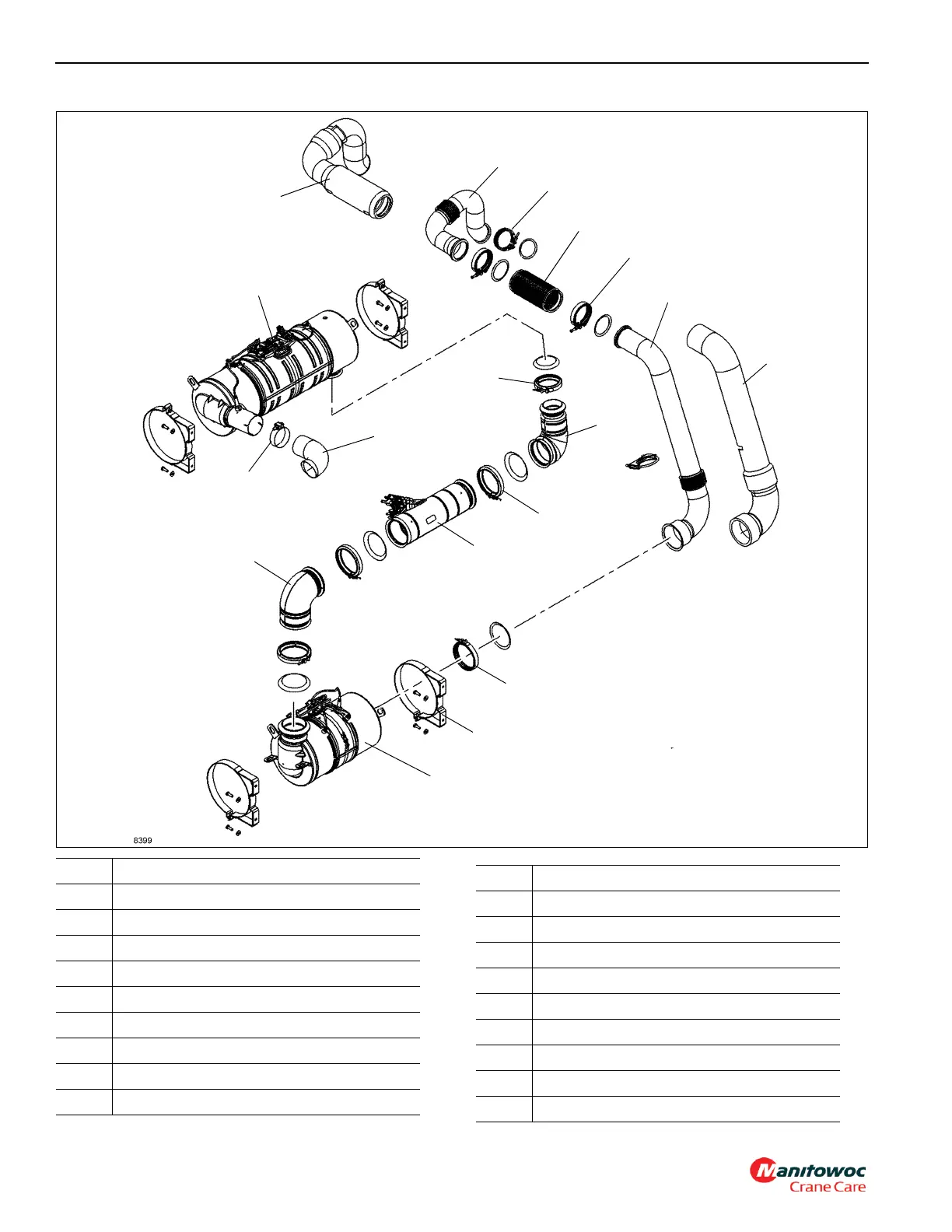

FIGURE 7-9
6
10
7
11
8
9
1
5
2
18
4
12
3
13
14
15
16
17
Item Description
1 Insulation
2 Exhaust Tube
3 V-Band Clamp
4 Flex Hose
5 V-Band Clamp
6 Exhaust Tube
7 Insulation
8 Selective Catalytic Reduction (SCR) unit
9 Muffler Clamp
Item Description
10 Tail Pipe
11 V-Band Clamp
12 Elbow
13 V-Band Clamp
14 Decomposition Reactor Tube
15 Elbow
16 Diesel Oxidation Catalyst (DOC)
17 Mounting Band
18 V-Band Clamp
