UNDERCARRIAGE RT880E SERVICE MANUAL
8-34 Published 11-10-2014, Control # 524-00
NOTE: Outrigger removal and
installation similar for
both front and rear out-
riggers.
NOTE: Lifting belts or straps
should be used for lifting
purposes so as to avoid
nicking or scratching the
bottom edges of the out-
rigger beam.

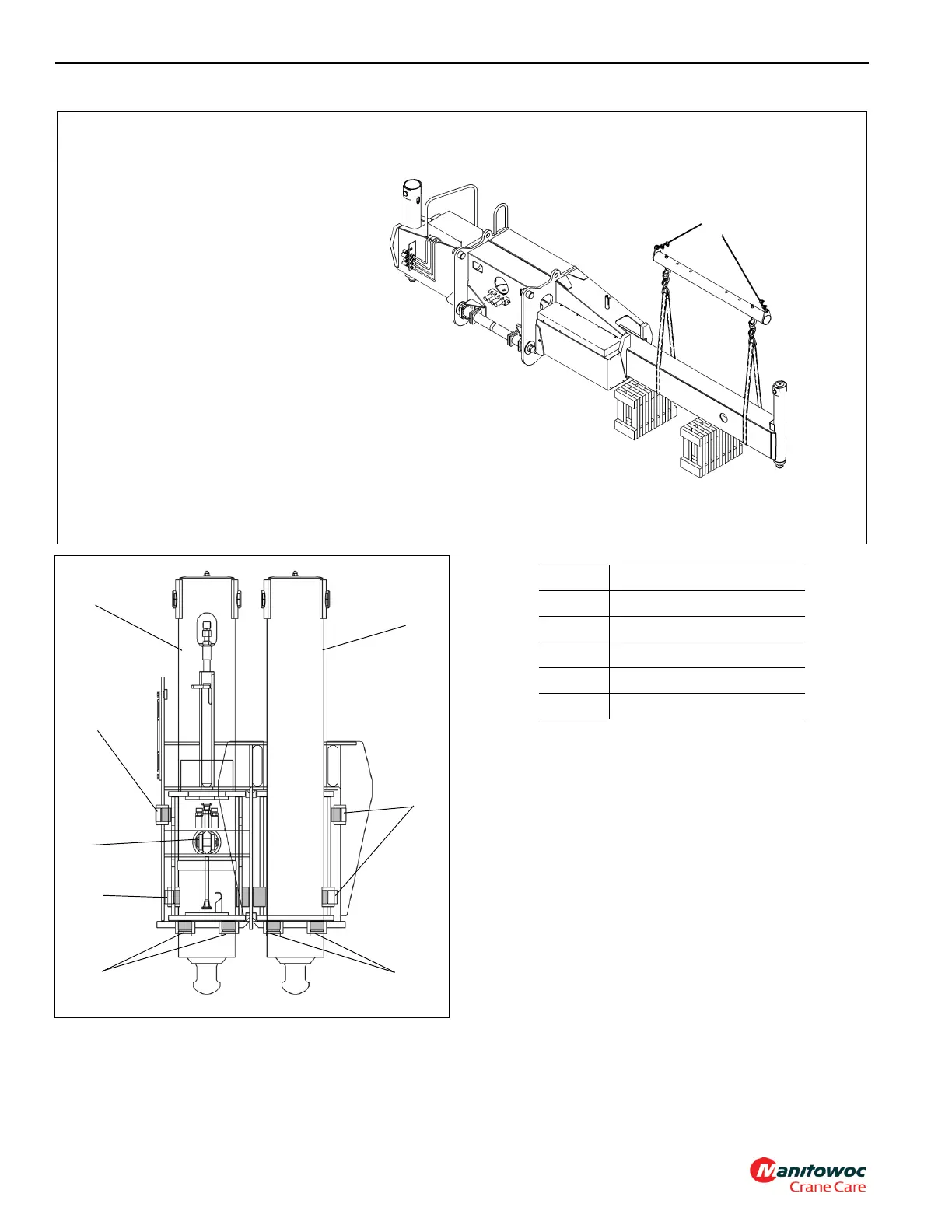

FIGURE 8-31
6120-1
1
1
2, 3
4, 5
2, 3
2, 3
2, 3
2, 3
FIGURE 8-32
Item Description
1 Outrigger Beam Assembly
2 Wear Pad
3 Setscrew
4 Clevis Pin
5 Cotter Pin
