RT880E SERVICE MANUAL HYDRAULIC SYSTEM
2
Front Steer, Swing and Accessory Manifold
Item Description
1 Procedure C - Oil Cooler Motor Pressure - Adjust - Step No. 1
2 Procedure G - Front Steer Pressure - Check/Adjust - Step No. 1 & No. 2
3 Procedure H - Swing Work Port Pressure - Check/Adjust - Step No. 1
4 Procedure H - Swing Work Port Pressure - Check/Adjust - Swing WP Relief Valve - Step No. 2 & No. 3
5 Procedure I - Swing Brake Release Pressure - Check/Adjust - Step No. 1 & No. 2
6 Procedure J - Controller Supply Pressure - Check/Adjust - Steps No. 1 & No. 2

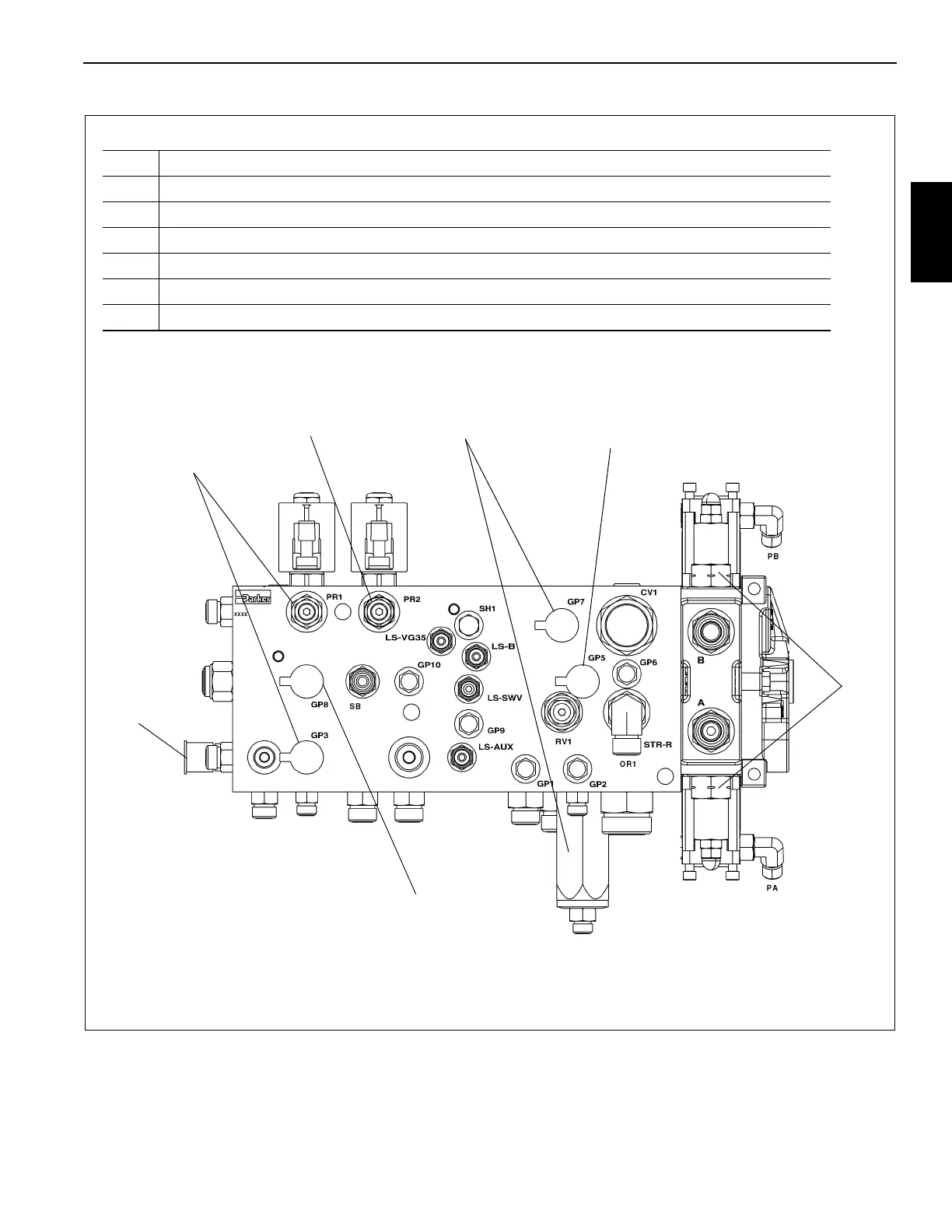

Front View As Facing T/T Side Plate
6484-1
FIGURE 2-9
6
5
3
2
1
4
6
