5-6 Planning the cabinet DKR Drive Controllers
DOK-DIAX03-DKR********-PR02-EN-P
SchDKR
Cooling with
air duct
DIAX03 DKR03
H1
X4
X2
U5
U2
S2
U4
U1 U3
X9
1
6
1
7
X8
H2
S1
X3
X7
1
10
1
11
X3
Netz/Mains
L3
L2L1
Motor
A3A1 A2
B2B1
220 V
Steuerspannun
g
Aux.
Voltage
NLK
X5
X10
TM+
TM-
BR
0VB
•
•
•
•
•
X6
air outlet
air inlet

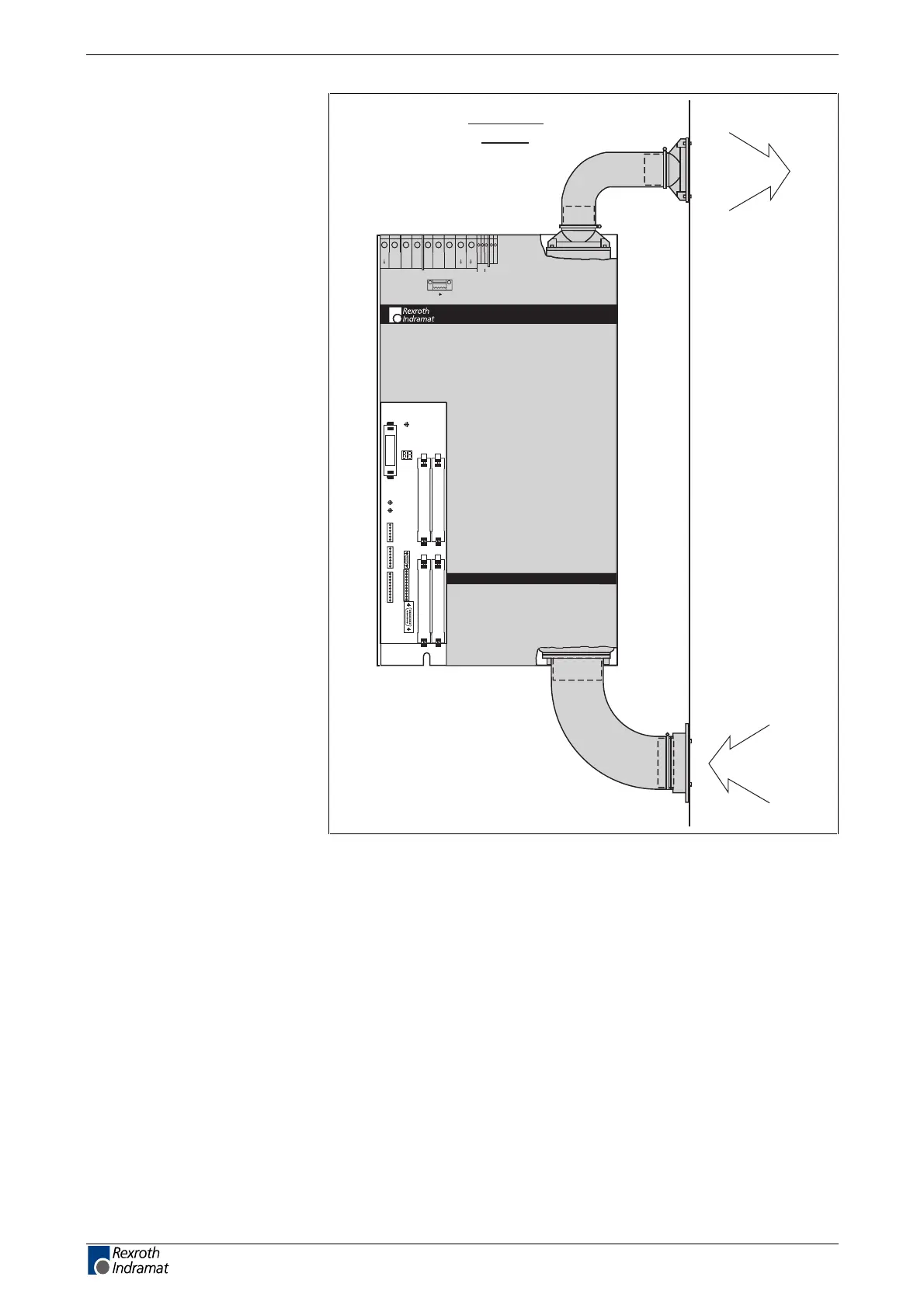

Fig. 5-5: Cooling method via duct (the example shown is a DKR03)
Cooling with air from outside the cabinet or with a duct affects the
protection category of the cabinet because such methods mean that there
must be vents in the cabinet. If mounting has been performed as per the
guidelines, then the interior of the cabinet has a protection category of
IP54.
