DKR Drive Controllers Accessories 7-3
DOK-DIAX03-DKR********-PR02-EN-P
7.2 Fiber optic cables
Drives equipped with SERCOS interface are connected to higher-ranking
control units with the use of fiber optic cables.
It is necessary, however, to order these fiber optic cables (cable,
connector or a cable assembly) separately.
X4
X2
U5
U3 U4
U1 U2
X3X3
Netz/Mains
L3
L2L1
Motor
A3A1 A2
B2B1
220 V
Steuerspannung
Aux.
Voltage
NLK
X5
X10
TM+ TM- BR 0VB
• • • • •
X6
(for routing internal to the control enclosure)
SERDKR
fibre optic cable rings
CNC
SERCOS
interface
Fibre optic cable plug-
in coupling unit (control
enclosure leadthrough)
part no. 252 524
IKO 982 / . . .
IKO 985 / . . .
(for routing external to the control enclosure)
ø 6 mm
ø 2 mm
Length in meters
Length in meters
X9
1
6
1
7
X8
X7
1
10
1
11
DIAX03 DKR03
H1
S2
H2
S1

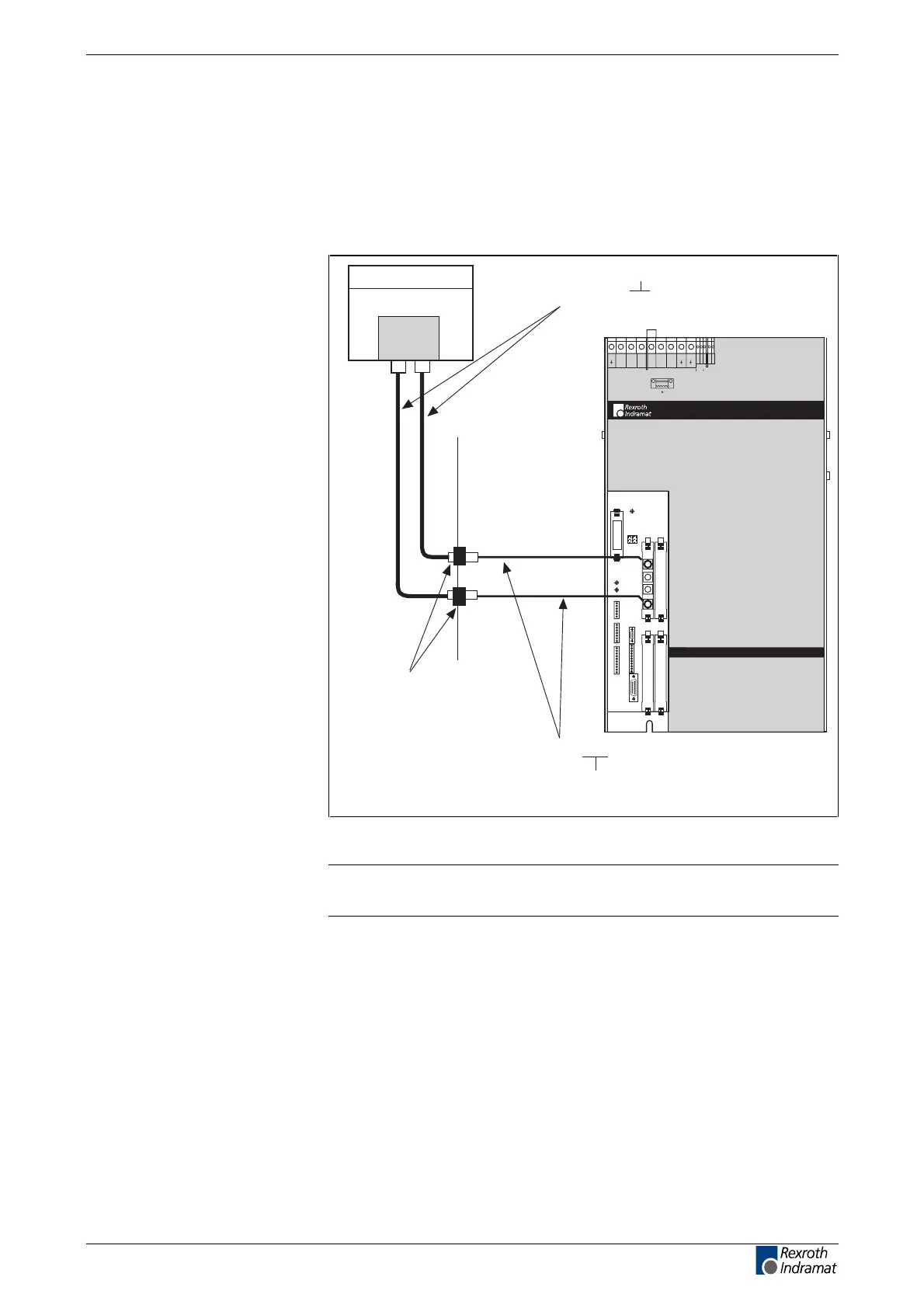

Fig. 7-2: Selecting the fiber optic cable assembly
Note: For more detailed information on fiber optic cables, please see
the application manual "LWL - Handling".
