9.3 Rating plate and type code of the drive controller
There are two rating/name plates on the drive for clear identification:
•
rating plate bottom left. It serves to identify the basic unit.
•
rating plate on the front side. It serves to
•
identify the basic unit,
•
identify the components/configuration (plug-in modules installed),
•
procure spare parts in case of malfunction and
•
provide service information.
In addition, there is a rating plate on the drive controller that helps you
identify the software stored in the software module.
X
9
1
6
1
7
X
8
X
7
1
1
0
1
11
PosTSDKR
DIAX03 DKR03
H
1
X
4
X
2
U
5
U
2
S
2
U
4
U
1
U
3
H
2
S
1
X
3
X
3
N
etz/M
ains
L3
L2
L1
Motor
A3
A1
A2
B2
B1
220 V
Steuerspannun
g
Aux.
Voltage
N
L
K
X5
X10
TM+
TM-
BR
0VB
•
•
•
•
•
X
6
rating plate,
configuration
rating plate,
basic unit
rating plate,
firmware

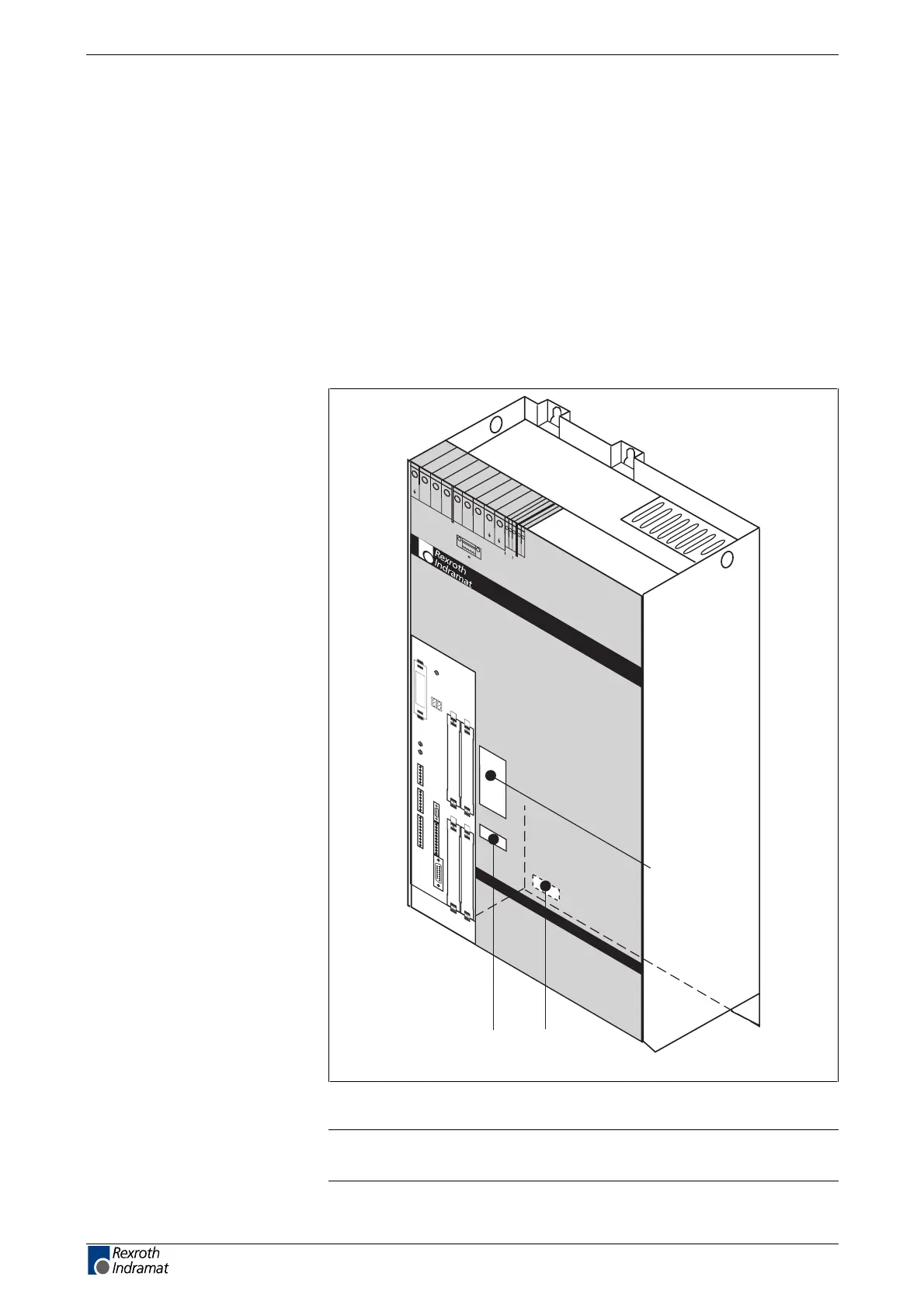

Fig. 9-2: Positions of the rating plates (DKR02/DKR03)
Note: Compare all the information on the rating plate with what is
actually assembled into the drive.
