6-18 Planning the electrical connections DKR Drive Controllers
DOK-DIAX03-DKR********-PR02-EN-P
X6: Monitoring motor temperature and holding brakes
1
2
3
4
5
X6
TM+
TM-
BR
0 V
B
DKR
APX6DKR
max. core cross section: 2,5
temperature
monitoring
motor holding
brake

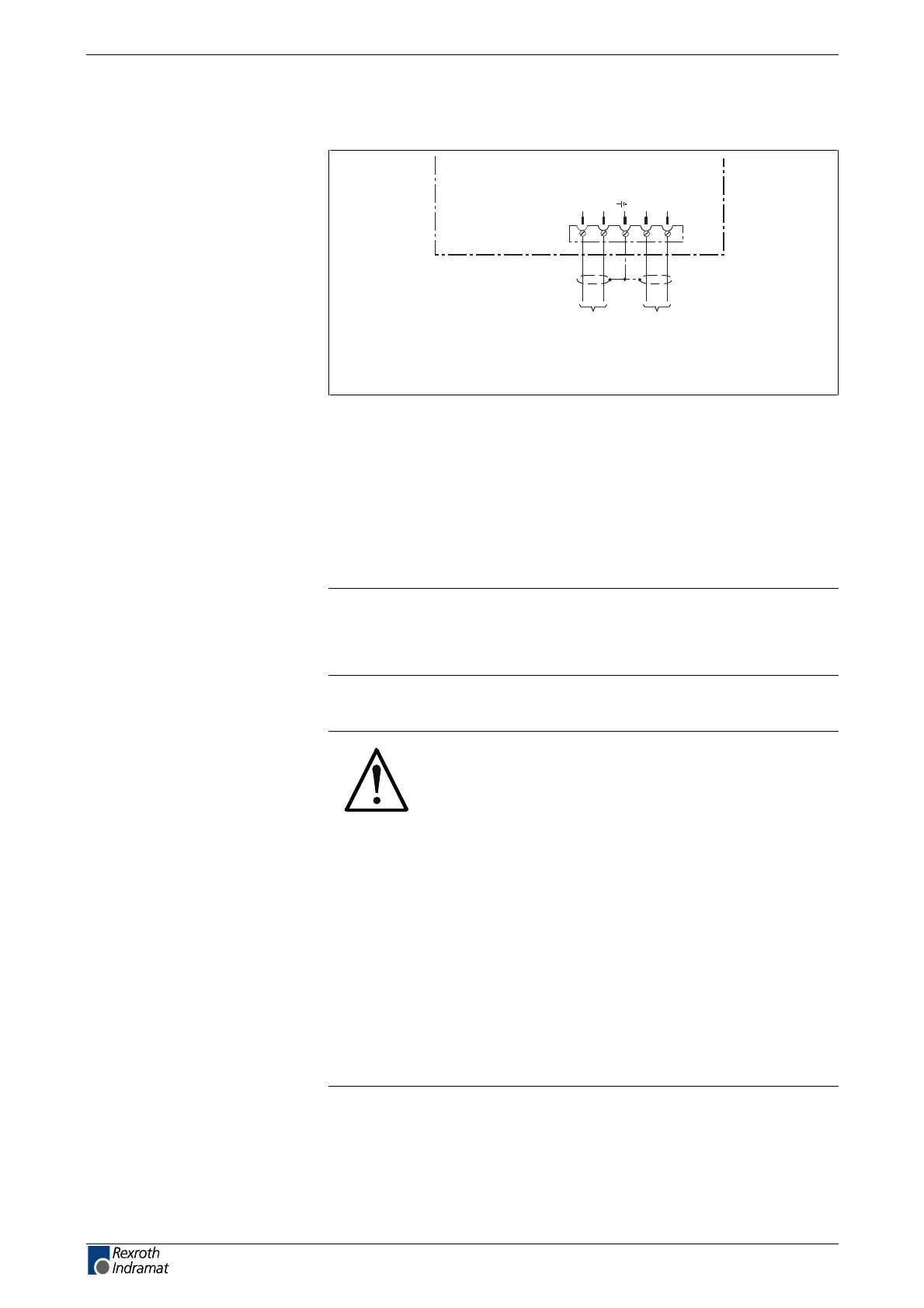

Fig. 6-18: Connector assignment at X6
Both motor temperature and holding brake are monitored and controlled
by the drive controller. The are two possibilities to connect the lead to
terminal connector X6:
•
Use a motor power cable assembly manufactured by Rexroth
Indramat (recommended) or
•
Use two shielded lead pairs (motor temperature monitoring will not
function without a shield!).
Note: Shielded leads are already integrated into Rexroth Indramat
cables for the motor temperature monitoring and the holding
brake devices. For detailed information, see the relevant motor
documentation.
Maximum cable length: 75 meters (Rexroth Indramat cable).
DANGER
Dangerous movements! Danger to persons
caused by falling or descending axes!
⇒
The standard equipment motor brake or an external
brake controlled directly by the servo drive are not
sufficient to guarantee the safety of personnel!
⇒
Make sure to protect the personnel by means of
primordial, safe measures:
- Secure the danger zone by means of a protective
fence or grid.
- Secure vertical axes against falling or slipping
after switching off the motor power by, for
example:
- mechanically securing the vertical axes,
- adding an external brake / clamping
mechanism or
- balancing and thus compensating for the
vertical axes mass and the gravitational force.
