DKR Drive Controllers Accessories 7-1
DOK-DIAX03-DKR********-PR02-EN-P
7 Accessories
7.1 Connector kits
The following is required to connect the drive:
•
connector kit S1-DKS 1 (for the connections on the basic unit without
feedback connector) and
•
connector kit S..-DDS 2 (for the connections of all the plug-in modules
inserted in the basic unit including the feedback connector).
Connector kit for the basic unit
Connector kit S1-DKS 1 is always required. The connectors as depicted
in the illustration below are part of this connector kit.
S1DKR.fh7
X4: part no. 231715
Connector for motor feedback connection
is generally included in the accessories kit
for configuration S.. - DDS 2
DIAX03 DKR03
H1
X4
X2
U5
U3
S2
U4
U1 U2
X9
1
6
1
7
X8
H2
S1
X3
X7
1
10
1
11
X3
Netz/Mains
L3
L2L1
Motor
A3A1 A2
B2B1
220 V
Steuerspannung
Aux.
Voltage
NLK
X5
X10
TM+ TM- BR 0VB
• • • • •
X6
Connector
accessories kit
S1-DKS 1
X9: part no. 219830
X8: part no. 247618
X7: part no. 219464
X3: part no.241592
X6: part no. 221159

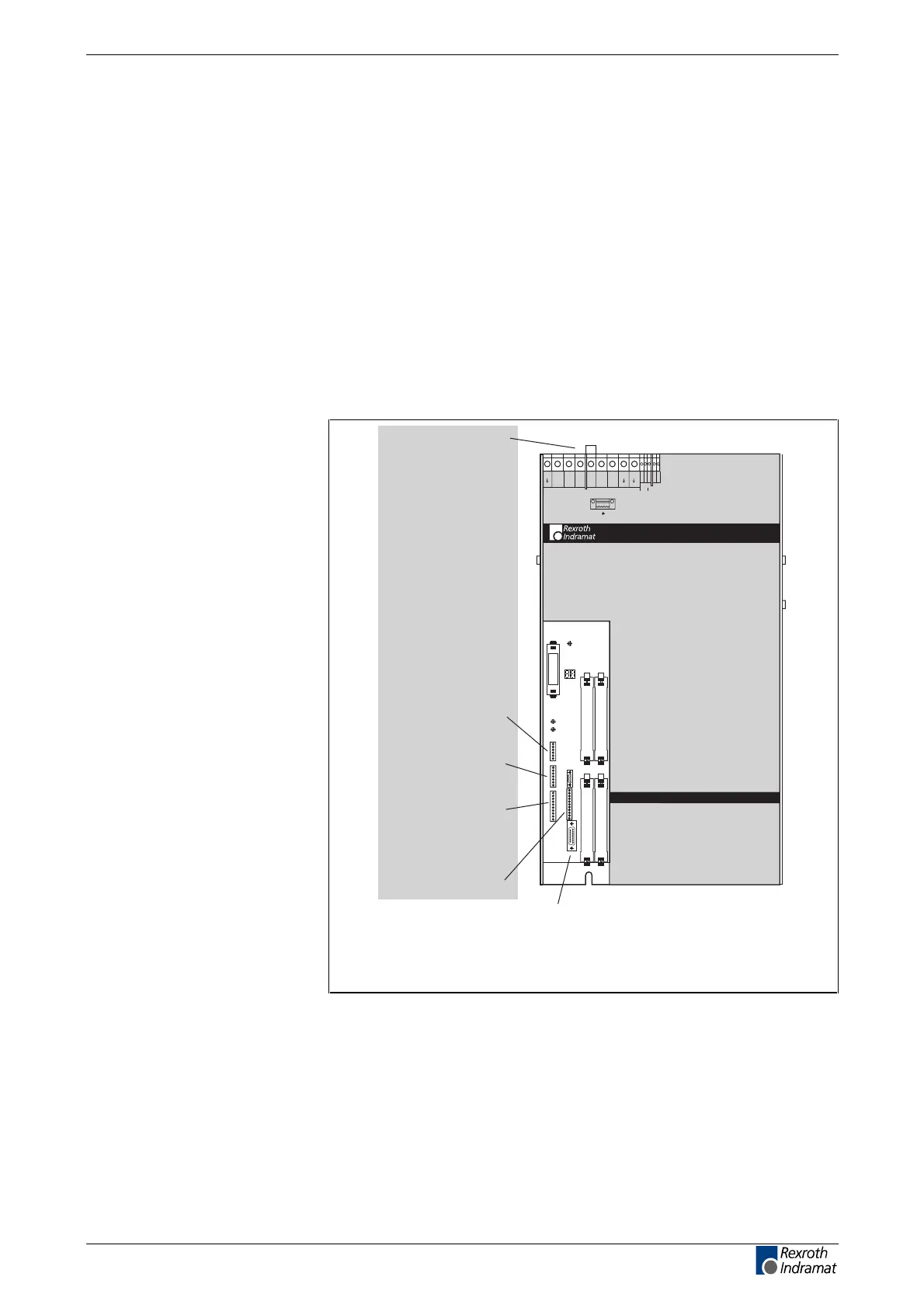

Fig. 7-1: The parts of connector kit S1-DKS 1
