10-10 Mounting and installation DKR Drive Controllers
DOK-DIAX03-DKR********-PR02-EN-P
CAUTION
Damage to electronic components caused by
electrostatic discharge!
⇒
Before working on electronic components and
equipment, touch a grounded object as, for example,
the doors of the cabinet. This discharges the human
body.
⇒
Place parts and tools on a grounded surface only.
⇒
Use a grounded soldering ironing when soldering.
Power connector with double cable

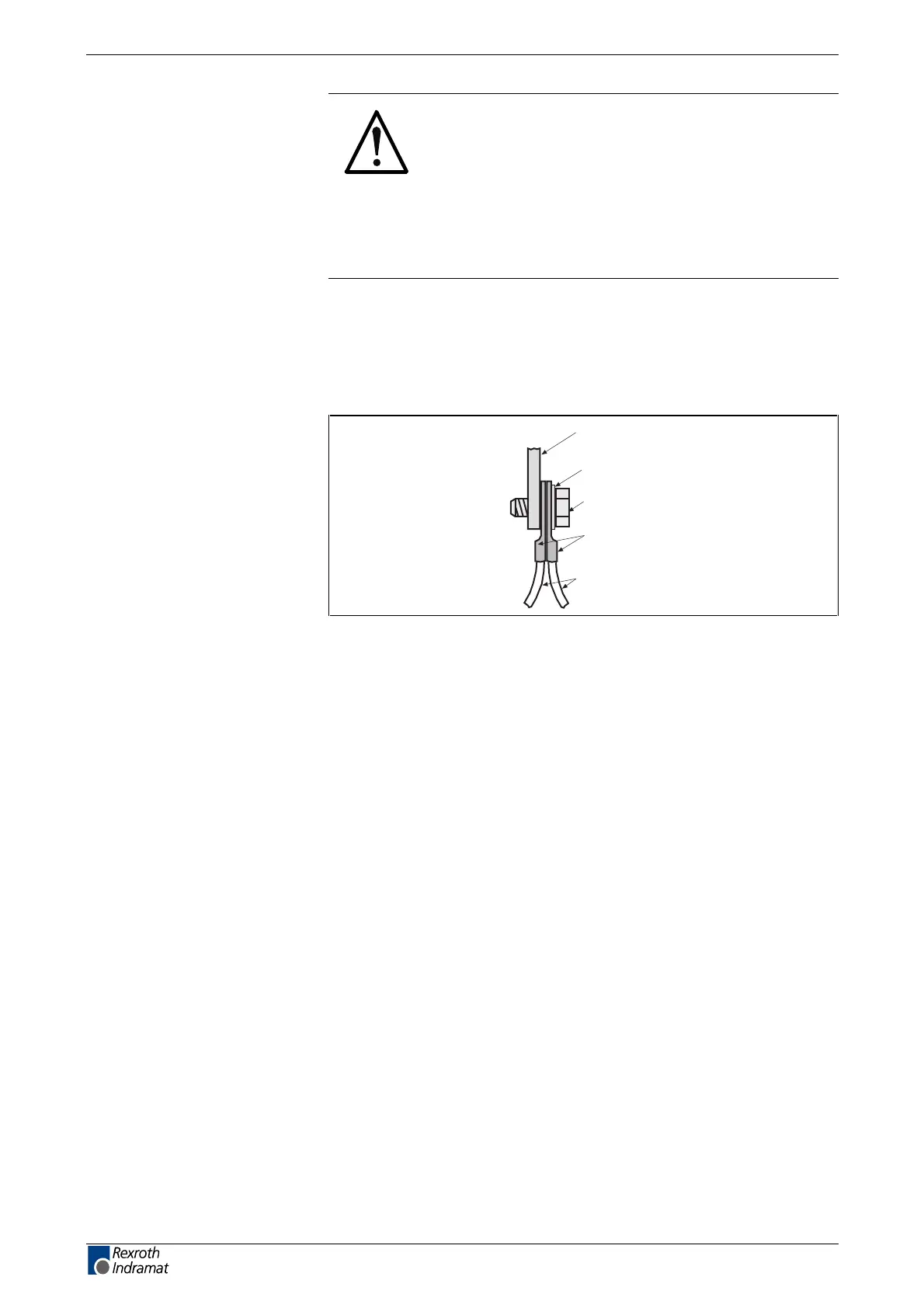

The figure below shows a possibility to connect double cables to a power
connector of the DKR04:
connector at
DKR04
screw (M12)
power cable
resilient pre-
loading disc
cable lug
Fig. 10-7: Example: How to fix two leads to a power connector of the DKR04
