5-20 Planning the cabinet DKR Drive Controllers
DOK-DIAX03-DKR********-PR02-EN-P
5.5 Leads
CAUTION
Failure or malfunction caused by improperly
installed leads!
⇒
Observe the following instructions.
⇒
Maintain a distance of at least 100 mm between power and control or
signal cables, e. g.; feedback or NC connections
- or -
⇒
isolate the cable channel metallically (see illustration below).
metallic cable channel
KabDKR
2...4 mm
³100 mm
plastic cable channel

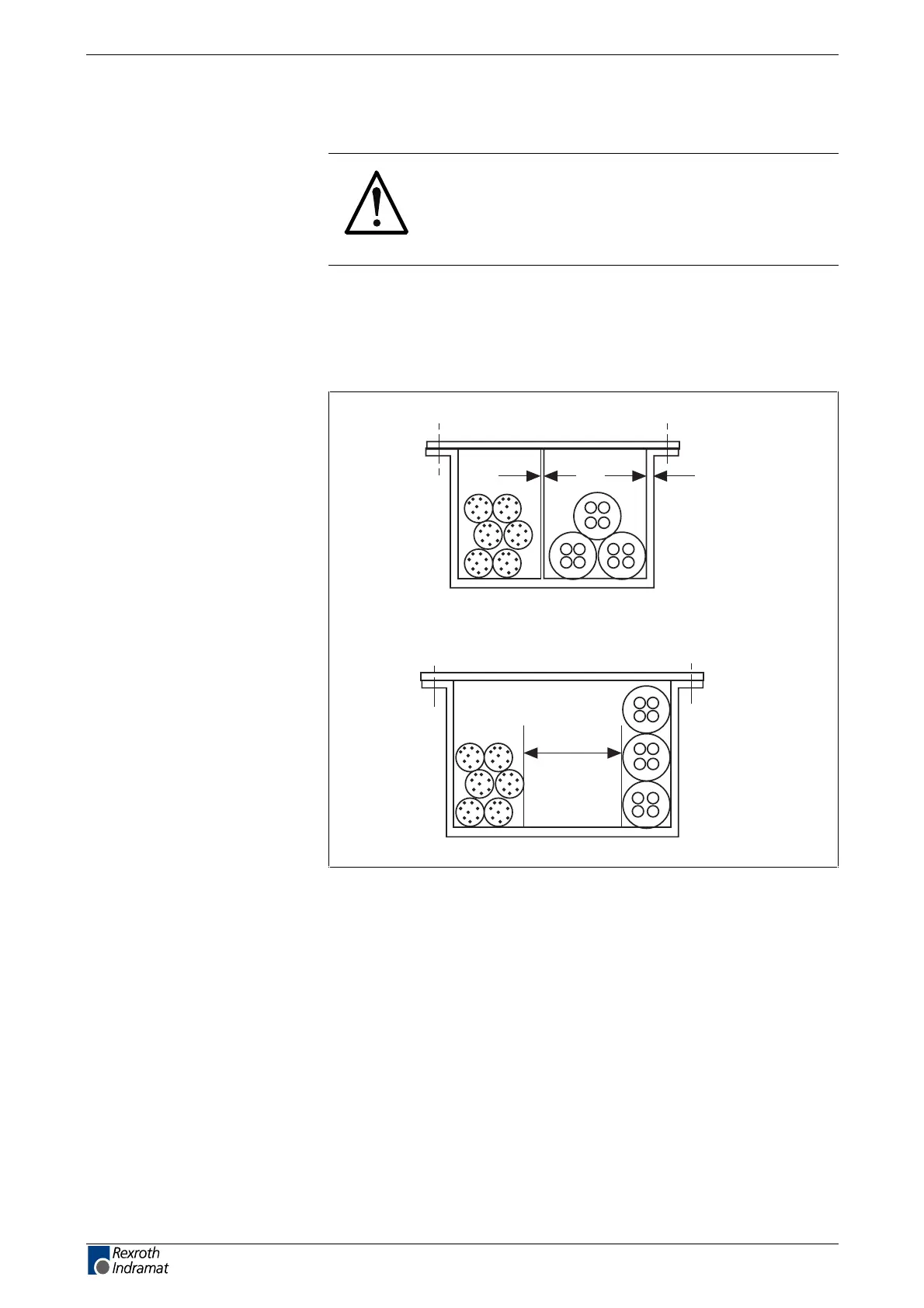

Fig. 5-20: Various cable channels
⇒
Control or signal cables, e.g., feedback connections, should not be
routed near high-frequency equipment, magnetic fields, i.e.,
transformers or chokes and so on, or high-voltage leads.
Lead arrangement
