4A-38 90-13645--2 395POWERHEAD
9. Reinstall Flywheel Cover. Tighten 3 wing-nuts se-
curely.
10. Reinstall oil reservoir. Reconnect hoses and se-
cure with sta-straps. See Section 3B for more de-
tails, if necessary.
See “Oil Reservoir” diagrams at beginning of this
section.

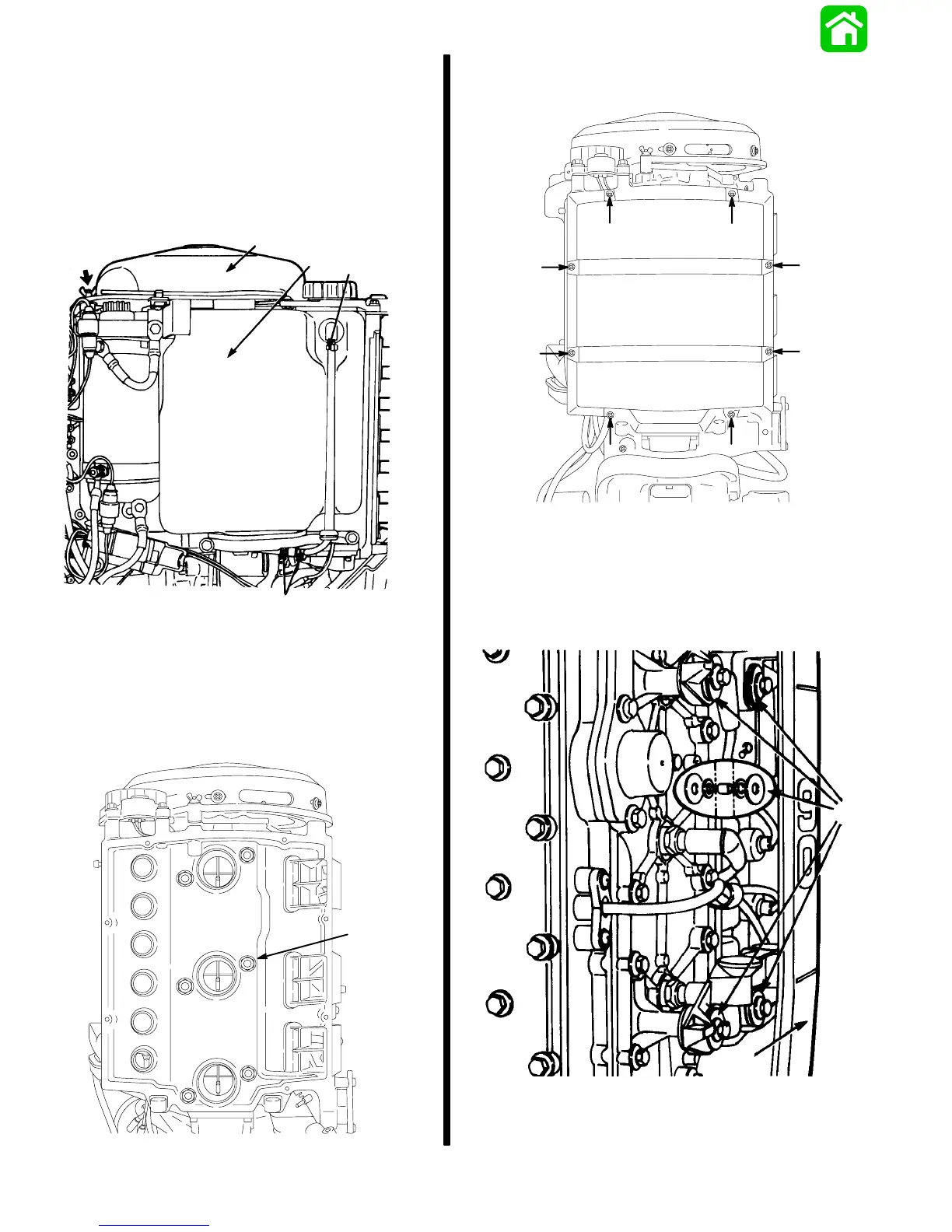

19072
a
b
c
b
a - Oil Reservoir
b - Sta-straps
c - Flywheel Cover
11. Install Gaskets - Air Box Plate to carburetor.
12. Reinstall Air Box Plate.
13. Torque bolts to 100 lb. in. (11.3 Nm).
19097
14. Reinstall Air Box Cover and Gasket; tighten
screws securely.
20335
ATTACH REAR COWL MOUNTING BRACKET
Bracket attaches with 4 bolts.
Note washer sequence (4 places).
Torque bolts to 150 lb. in. (16.9 Nm).
20368
a
b
a - Bracket
b - Washer
To Next Page
