Mariner 75 - Engine Wiring Diagram (3 Cylinder Models with Small Voltage Regulator;Rectifier)

2D-390-13645--2 495 ELECTRICAL AND IGNITION

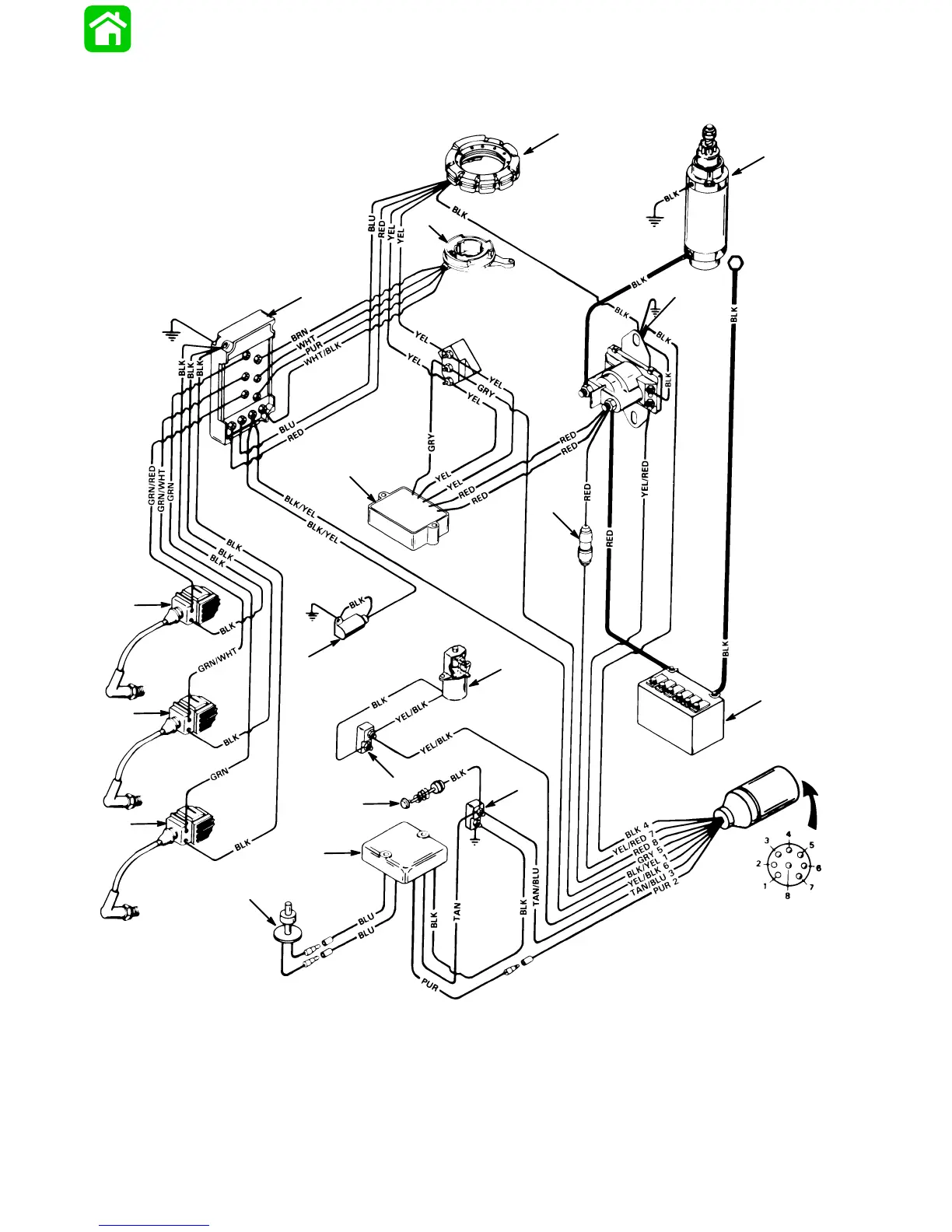

Engine Wiring Diagram (3 Cylinder Models
With Small Voltage Regulator/Rectifier)
51003
BLK  BLACK
BLU  BLUE
BRN  BROWN
GRY  GRAY
GRN  GREEN
PUR  PURPLE
RED  RED
TAN  TAN
VIO  VIOLET
WHT  WHITE
YEL  YELLOW
d
f
g
j
k
q
p
o
n
e
c
a
h
i
l
m
n
b
a - Stator
b - Trigger
c - Switch Box
d - Ignition Coil Cylinder No. 1
e - Ignition Coil Cylinder No. 2
f - Ignition Coil Cylinder No. 3
g - Mercury Switch
h - Starter Motor
i - Starter Solenoid
j - Voltage Regulator/Rectifier
k - 20 Amp Fuse
l - Battery
m- Fuel Enrichment Valve
n - Terminal Block
o - Overheat Temperature Sensor
p - Warning Module
q - Low Oil Sensor (Float)
