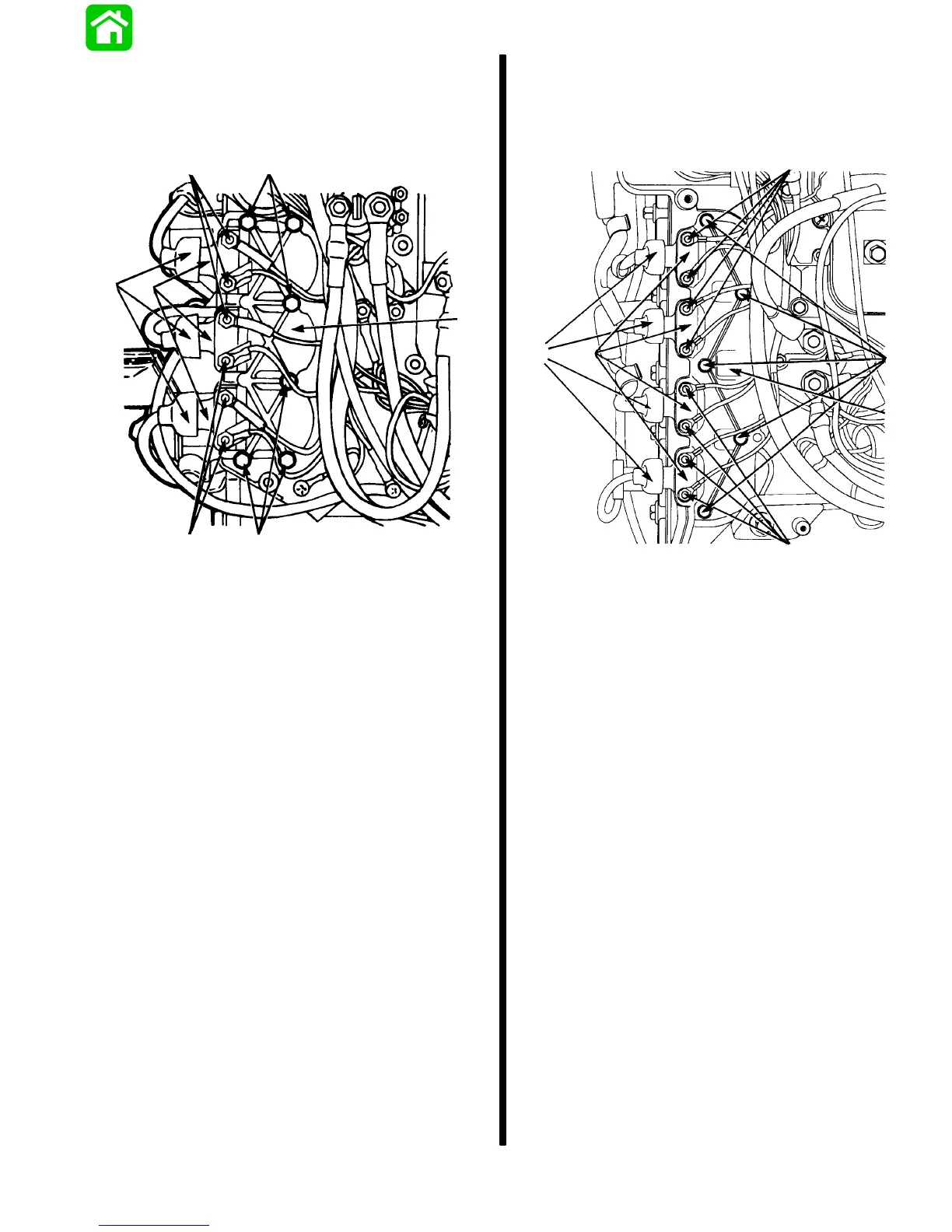

Ignition Coils (3 Cylinder Models)
1. Refer to wiring diagrams in Section 2D when con-
necting wires.
e
a
cd
b
d
c
19455
a - Coils
b - Cover
c - Hex Nuts; Torque to 30 lb. in. (3.4 N·m),coat with Quicksilver
Liquid Neoprene
d - Bolts; torque to 20 lb. in. (2.3 Nm)
e - Coil Tower Boots; form a water tight seal between coil tower
and spark plug lead using Quicksilver Insulating Compound
Ignition Coils (4 Cylinder Models)
1. Refer to wiring diagrams in Section 2D when con-
necting wires.
25931
a
c
d
b
c
e
a - Coils
b - Cover
c - Hex Nuts; Torque to 30 lb. in. (3.4 N·m), coat with Quicksilver
Liquid Neoprene
d - Bolts; torque to 20 lb. in. (2.3 Nm)
e - Coil Tower Boots; form a water tight seal between coil tower
and spark plug lead using Quicksilver Insulating Compound
