6A-29POWER TRIM90-13645--2 495
Tilt Ram
REMOVAL
1. Remove Power Trim assembly from engine, refer
to “Removal” instructions in “Power Trim Assem-
bly Removal and Installation,” preceding.
Slowly remove fill screw to bleed pressure from
reservoir.
From a full closed (clockwise) position, slowly
open manual release valve 3 to 4 turns (counter-
clockwise) to bleed remaining pressure from
Power Trim system.

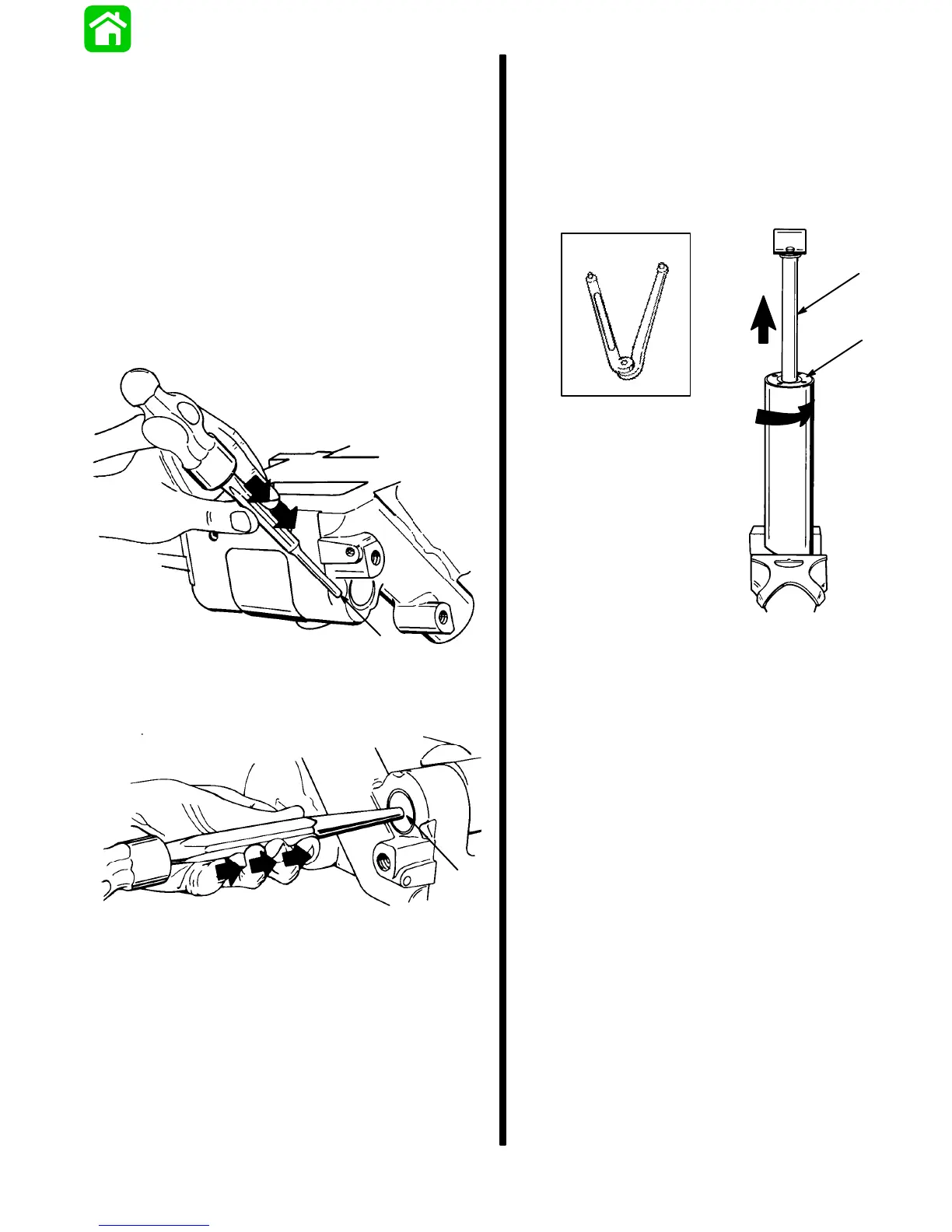

Remove pin by driving pin in direction shown.
51366
a
a - Pin
2. Remove shaft by driving shaft in direction shown.
51355
a
a - Shaft
DISASSEMBLY
1. Secure tilt ram (at its base) in a soft jawed vise.
Using Spanner Wrench, loosen cap by turning
cap in direction.
Remove ram from vise, and pour fluid from ram.
Pull rod assembly out of ram.
51364
91-74951
51337
a
b
c
d
a - Spanner Wrench
b - Cap
c - Turn in Counterclockwise Direction
d - Rod Assembly
