6B-28 90-13645--2 495POWER TRIM
MOTOR AND PUMP REPLACEMENT
IMPORTANT: The pump is not rebuildable. If pump
is defective, replace as an assembly.
NOTE
: Power Trim System does not have to be re-
moved from outboard to replace pump or motor.
1. Tilt outboard to full “UP” position. Depressurize
power trim system, and loosen starboard transom
bracket as outlined in “Removal and Installa-
tion” on page 6B-14.
2. Remove 2 screws to remove motor from system.
NOTE
: Driveshaft is a loose part and may fall out of
motor when motor is removed.

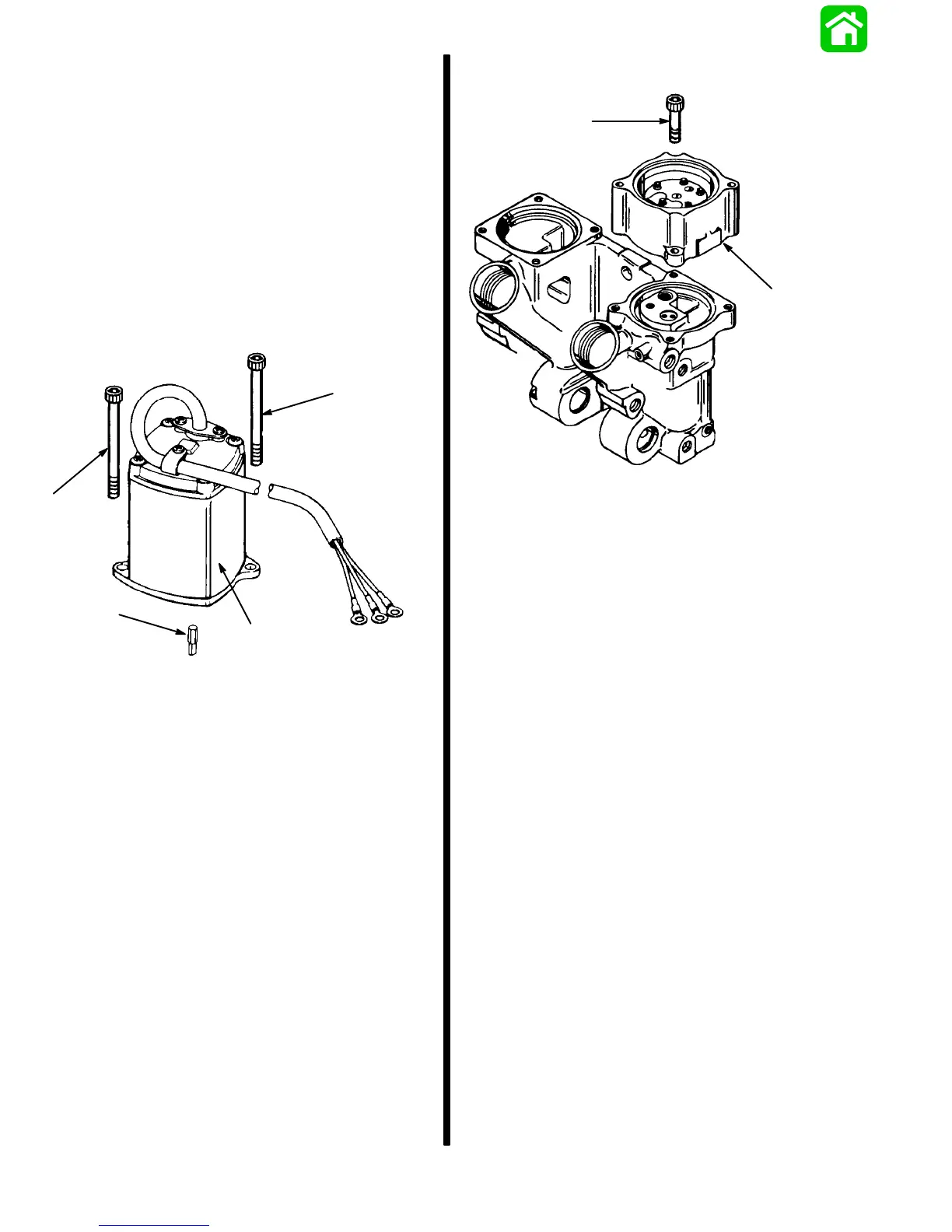

51433
a
b
c
b
a - Motor
b - Screw (2)
c - Driveshaft
3. Remove two screws to remove pump.
51433
a
b
a - Pump
b - Screw (2)
