Mariner 75 - Fuel Pump Components (Design 1)

3A-2 90-13645--2 495FUEL SYSTEM AND CARBURETION
Troubleshooting Fuel Pump
(continued)
PROBLEM: LACK OF FUEL PUMP PRESSURE
Possible Cause Corrective Action
Hole in pulse hose
(1 pulse hose).
Replace pulse hose.
Loose pulse hose. Tighten connection.
Boost diaphragm gasket
distorted or out of place.
Check seal between
mating surfaces where
“rib” divides pulse
chamber – gasket must
align with rib; check for
distorted gasket. Align
or replace gasket if
necessary.

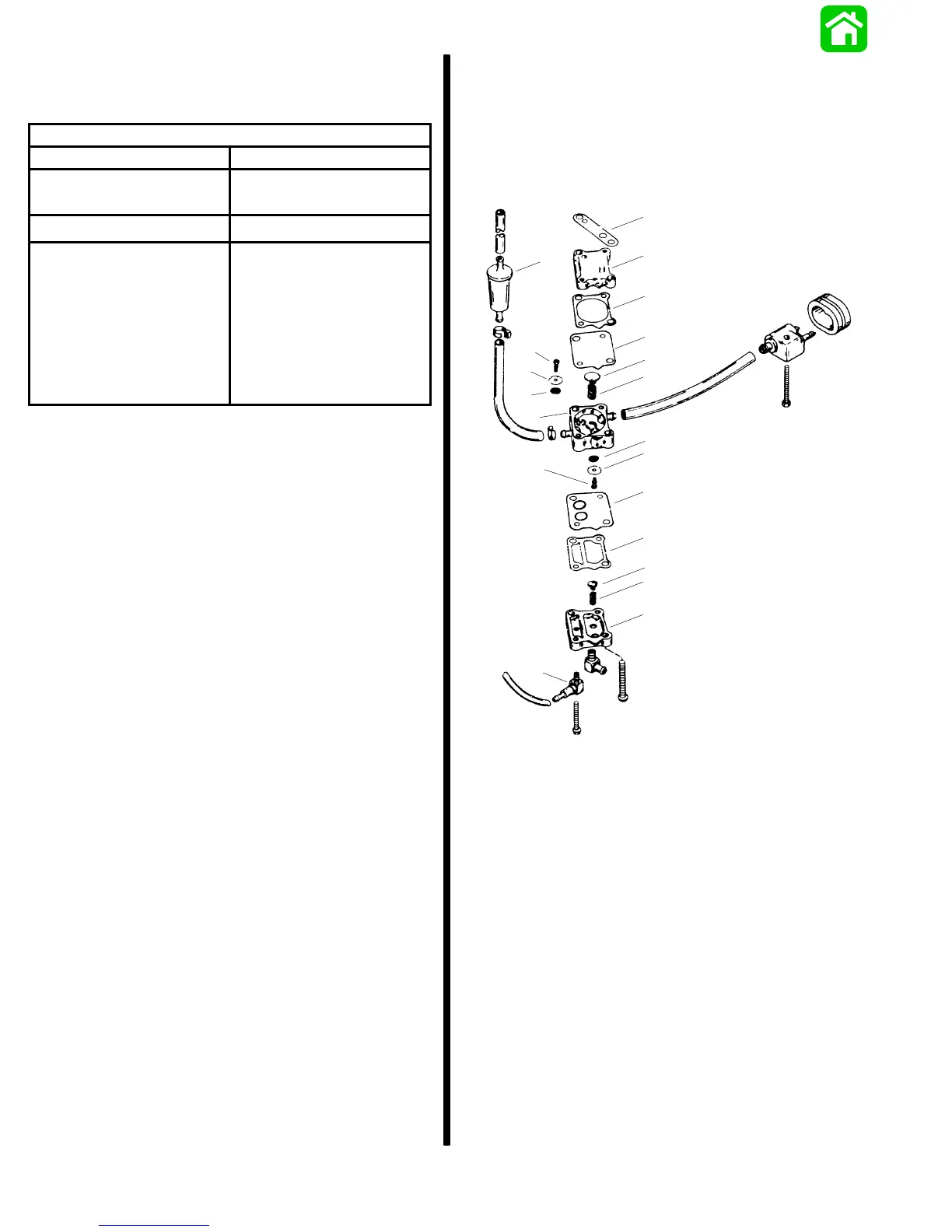

Fuel Pump Components (Design 1)
NOTE: In fuel pump reassembly, remember that re-
spective diaphragms go against the mating surfaces
of the fuel pump body, and respective gaskets are be-
tween the diaphragms and end caps. Gaskets should
always be replaced on fuel pump assembly.
a
b
c
d
e
g
h
i
j
k
l
m
n
o
p
q
s
t
r
f
a - Fuel Pump Base
b - Fuel Pump Body
c - Chamber Plate
d - Gasket, Base
e - Fuel Filter – Inline
f - Gasket, Pulse Chamber
g - Diaphragm, Fuel Pump
h - Retainer, Check Valve
i - Check Valve
j - Check Valve Rubber Disc
k - Main Compression Spring End Cap
l - Main Compression Spring
m- Boost Diaphragm
n - Boost Chamber Gasket
o - Boost Compression Spring End Cap
p - Boost Compression Spring
q - Retainer, Check Valve
r - Check Valve
s - Check Valve Rubber Disc
t - Check Valve Assembly
