“UP” Pressure Check
IMPORTANT: Insure battery is fully charged be-
fore performing tests.
1. Tilt outboard to full “Up” position and engage tilt
lock lever.
2. Slowly remove “Fill” plug to bleed pressure from
reservoir.
3. Turn Manual Release Valve 3 to 4 turns (counter-
clockwise) to bleed any remaining pressure.
4. Remove allen plug.

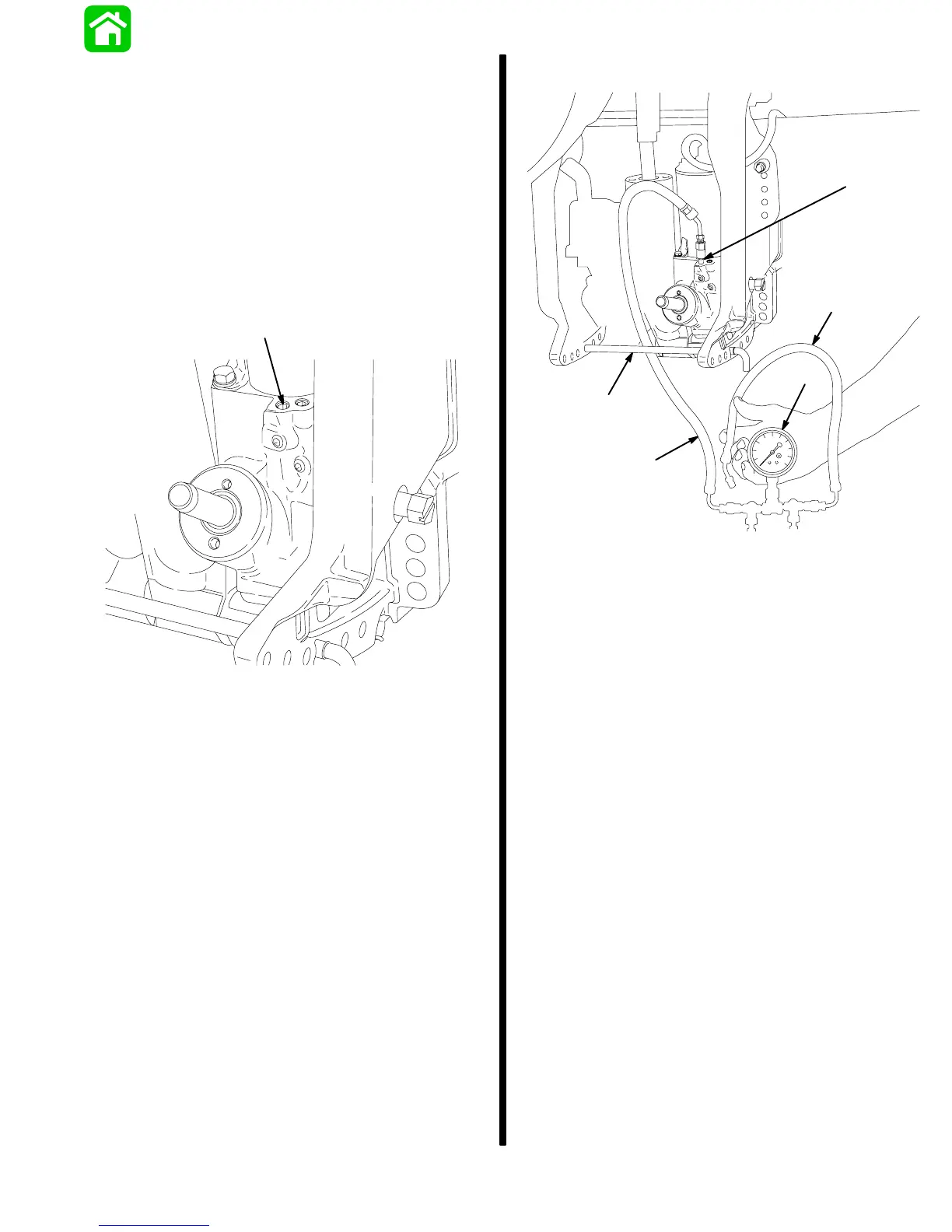

17250
a
a - Allen Plug
5. Install components.
17259
a
b
c
d
e
a - Adaptor Fitting (22-11243)
b - Test Gauge Assembly
c - Tilt Pin (Position in Hole Shown)
d - Hose (Route Hose Behind Tilt Pin, as Shown)
e - Hose (Not Used for This Check)
6. Disengage tilt lock lever.
