6A-39POWER TRIM90-13645-2 495

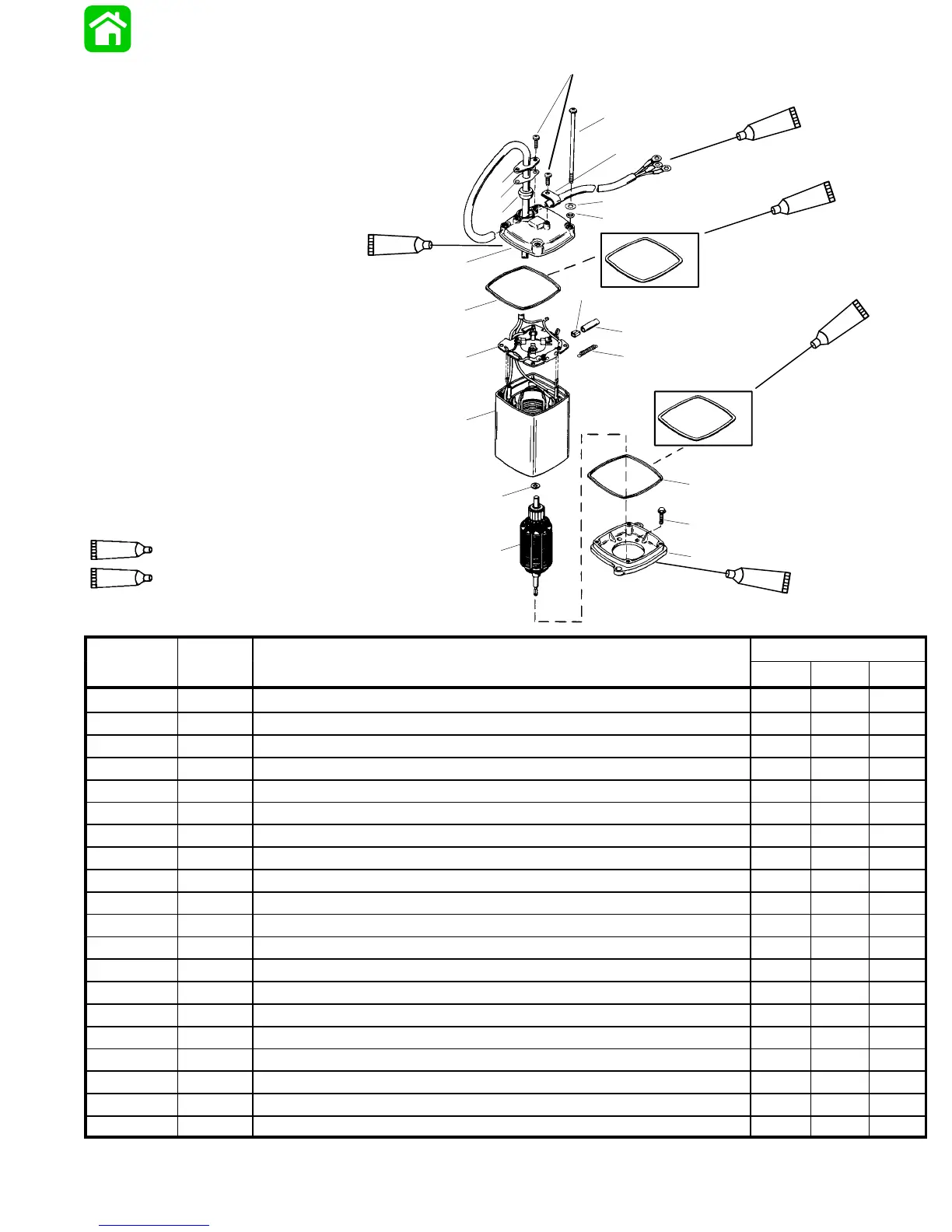

“Square” Motor Components
2
3
4
5
6
7
8
16
17
18
19
20
13
12
11
10
9
1
9
14
15
10
Quicksilver Lubrication/Sealant
Application Points
Liquid Neoprene (92-25711--2)
25
Bellows Adhesive (92-86166)
27
27
27
25
25
25
TORQUE
REF. NO. QUAN. DESCRIPTION lb. in. lb. ft. N⋅m
1 4 Thru Bolt 13 1.5
2 4 Nylon Washer (If Equipped)
3 4 O-ring
4 3 Self-Tapping Screw 13 1.5
5 1 Retainer, metal
6 1 Nylon Isolator (If Equipped)
7 1 Seal, rubber
8 1 End Frame Cap, upper
9 2 Square Ring, used when end frame cap has groove
10 2 Gasket, used when end frame cap does not have groove
11 3 Connector, metal
12 2 Sleeve
13 4 Brush Spring
14 1 Brush Card
15 1 Field and Frame Assembly
16 1 Thrust Washer
17 1 Armature
18 2or3 Bolt 70 7.9
19 1 End Frame Cap, lower
20 1 Clamp
