2B-2190-13645--2 495 ELECTRICAL AND IGNITION

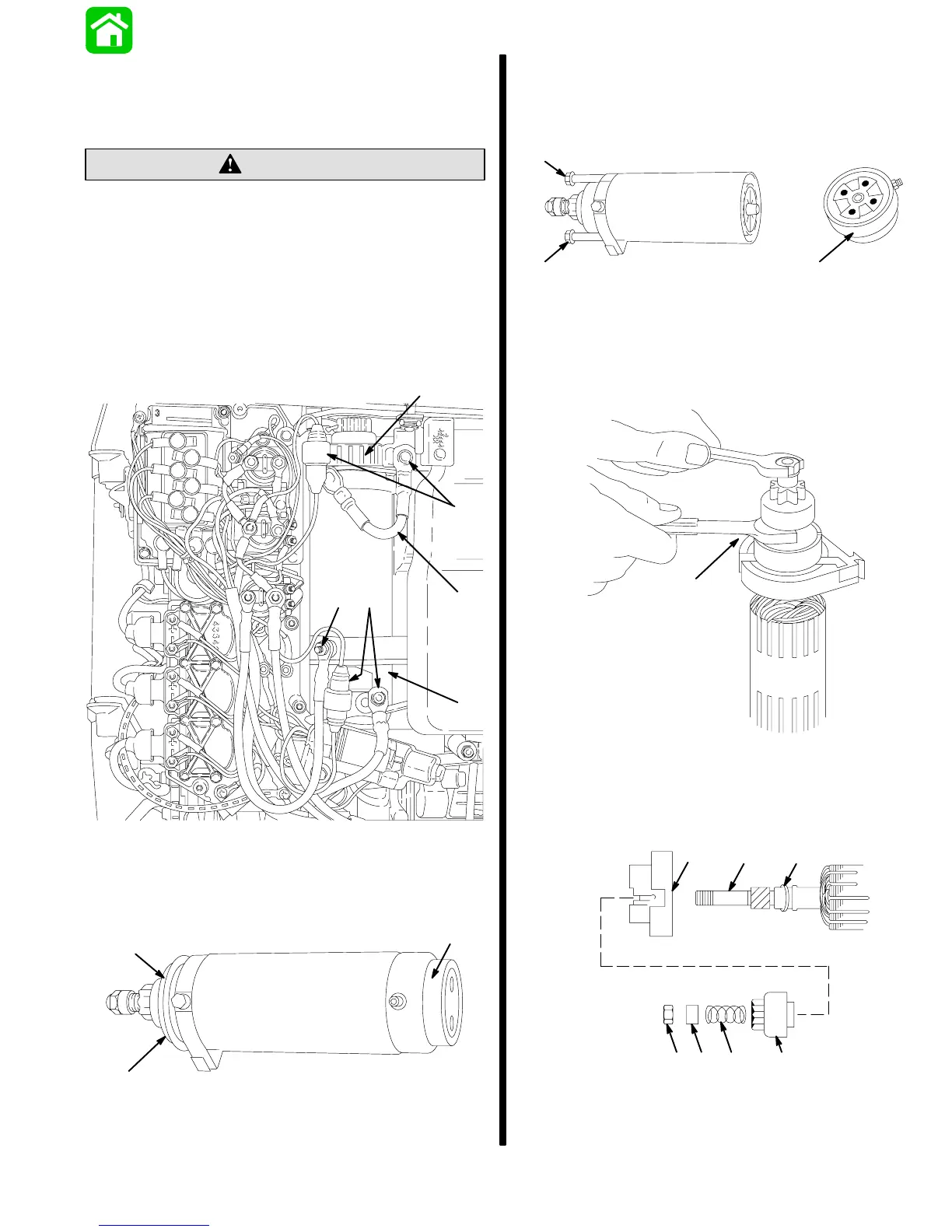

Starter Motor
Removal
Disconnect battery leads from battery before
removing starter.
CAUTION
1. Disconnect battery leads from battery.
2. Disconnect YELLOW cable.
3. Remove 4 bolts and remove starter clamps.
4. Remove starter.
5. Remove BLACK cable.
20412
a
b
c
d
b
c
a - YELLOW Cable
b - Bolts (4)
c - Starter Clamps
d - BLACK Cable
6. Remove 2 rubber collars and 2 rubber bumpers.
11645
a
b
a
a - Rubber Collar b - Spacer (If Equipped)
Disassembly
1. Remove 2 thru bolts and commutator end cap,
taking care not to lose brush springs.
11646
a
b
a
a - Thru Bolts
b - Commutator End Cap
2. Pull armature from starter frame.
3. Remove locknut.
11659
a
a - Hold Armature Shaft With Wrench on Hex Portion of Drive
Assembly
4. Remove components from armature.
11658
cd
efg
ba
a - Locknut
b - Spacer
c - Spring
d - Drive Assembly
e - Drive End Cap
f - Armature Shaft
g - Washer
