Mariner 75 - Tilt Ram Assembly Installation

90-13645--2 495 6B-27POWER TRIM
TILT RAM ASSEMBLY INSTALLATION

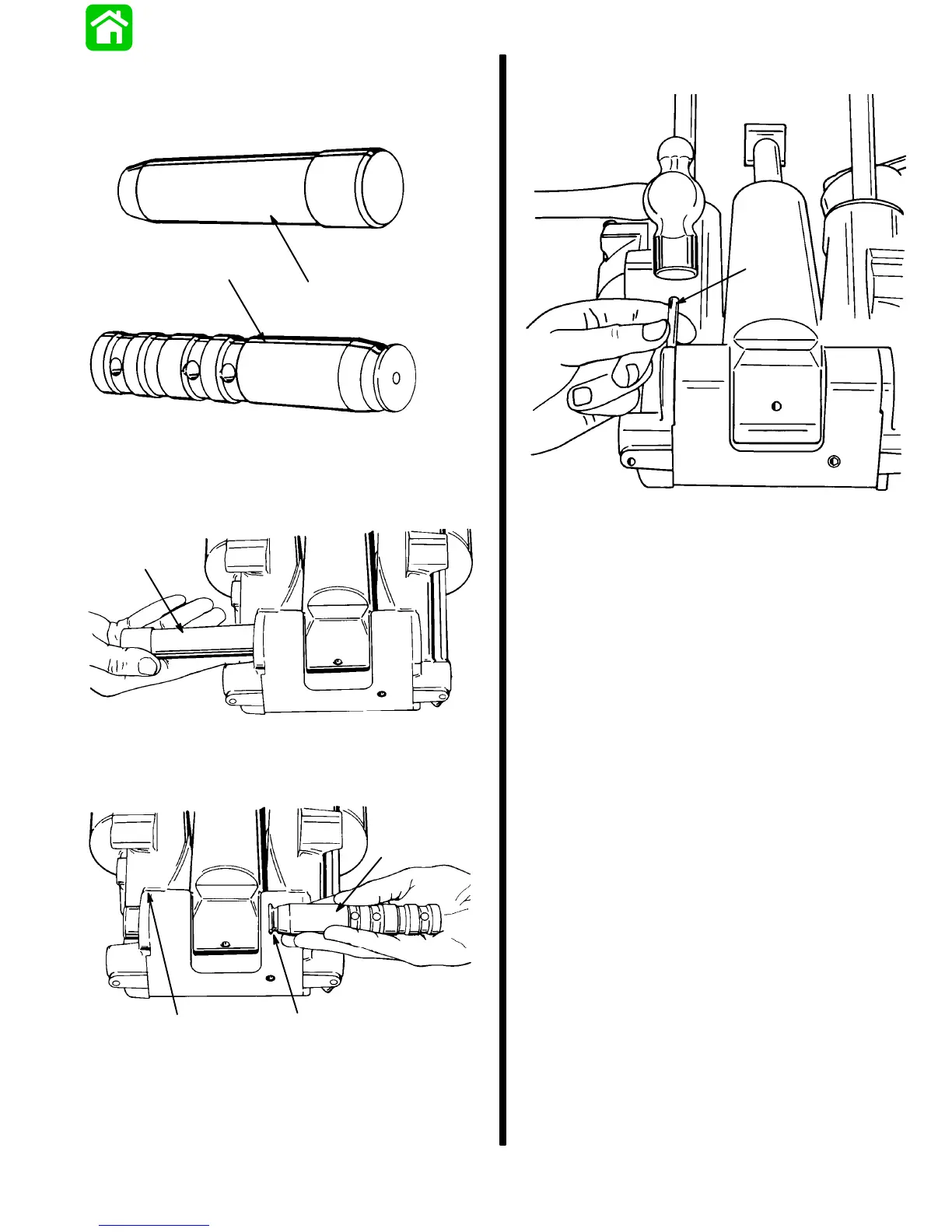

1. Lubricate alignment tool (91-11230) and shaft.
Use Quicksilver Power Trim and Steering Fluid.
51369
a
b
a - Alignment Tool (91-11230)
b - Shaft
2. Align tilt ram and housing using alignment tool.
51348
a
a - Alignment Tool (91-11230)
3. Install shaft.
5135
2
a
bc
a - Shaft
b - Groove
c - Hole [groove (b) will align with this hole]
4. Drive pin in until flush.
5135
6
a
a - Pin (Drive against knurled end)
5. Install Power Trim Assembly on outboard. Refer
to “Installation” instructions on pages 6B-16 and
6B-17.
